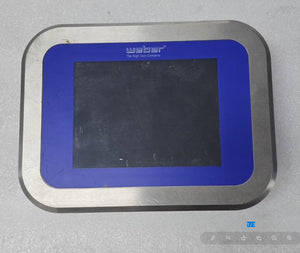

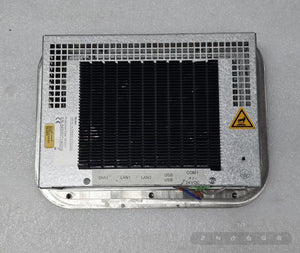

Part Number: A06-PC-VA-WEBER-S
Brand: Weber
Product Series: Industrial Touch Screen Module Series
Product Type: Industrial Grade Resistive/Capacitive Touch Screen Module (Human-Machine Interface)
Core Application: Widely used in industrial automation control systems, including assembly lines, packaging machinery, CNC equipment, and process control stations; serves as a human-machine interaction terminal for operation control, parameter setting, and data monitoring.
Core Features: High touch accuracy and response speed; resistance to industrial harsh environment; multi-communication protocol compatibility; built-in self-diagnosis and fault alarm function; easy integration with PLC/DCS systems; anti-interference design for stable operation.
Display & Touch Specifications
Display Size: 6.5-inch TFT LCD
Resolution: 800 × 480 pixels (SVGA)
Display Color: 262,144 colors (True Color)
Brightness: ≥350 cd/㎡, adjustable
Contrast Ratio: 500:1
Touch Technology: Resistive Touch (optional capacitive touch)
Touch Accuracy: ±1mm (full screen)
Response Time: ≤15ms
Touch Life: ≥1,000,000 touches per point
Backlight Type: LED, Backlight Life ≥50,000 hours
Electrical Specifications
Operating Voltage: 24V DC ±10% tolerance
Power Consumption: ≤18W (at rated load, backlight maximum brightness)
Communication Interfaces: Ethernet (10/100Base-T, RJ45, supports Modbus TCP, TCP/IP); RS-485 (2-wire, baud rate 1200-115200 bps, supports Modbus RTU); RS-232 (DB9, for debugging and configuration)
I/O Signals: 4 digital inputs (DI, 24V DC); 2 digital outputs (DO, 24V DC, 0.5A max per channel)
Signal Isolation: 2500V AC isolation between communication ports and power supply
Protection Functions: Overvoltage/undervoltage protection; reverse polarity protection; ESD protection (±8kV contact, ±15kV air) per IEC 61000-4-2; surge protection per IEC 61000-4-5
