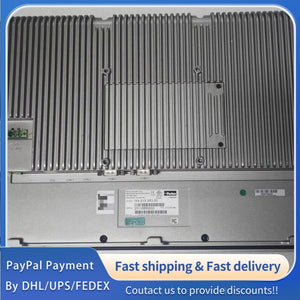

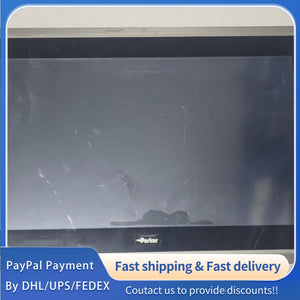

Part Number: IXA-015-3R3-53
Model: IXA-015-3R3-53
Brand: Parker
Product Series: IXA Series Industrial HMI
Product Type: Industrial Grade Capacitive Touch Screen Panel (Human-Machine Interface Module)
Core Application: Designed for integration with Parker industrial control systems and drives; widely applied in automation fields such as hydraulic control, motion control, and machinery manufacturing; used for system operation, parameter configuration, real-time data monitoring, and fault diagnosis.
Core Features: High compatibility with Parker controllers and drives; multiple communication protocol support; rugged industrial design; sensitive capacitive touch technology; built-in status indicators; easy panel mounting; strong anti-interference performance for harsh industrial environments.
Display & Touch Specifications
Display Size: 5.0-inch TFT LCD
Resolution: 800 × 480 pixels
Display Color: 16.7 million colors (True Color)
Brightness: ≥350 cd/㎡, adjustable via software
Contrast Ratio: 500:1
Touch Technology: Projected Capacitive Touch, surface hardness 7H (tempered glass)
Touch Accuracy: ±1.0mm (full screen), multi-touch support (2 points)
Response Time: ≤15ms
Touch Life: ≥5,000,000 touches per point
Backlight Type: LED, Backlight Life ≥50,000 hours (at 25°C)
Electrical Specifications
Operating Voltage: 24V DC ±10% tolerance
Power Consumption: ≤10W (at rated load, backlight maximum brightness)
Communication Interfaces: RS232/RS485 (supports Modbus RTU); Ethernet (supports TCP/IP, Modbus TCP); high-speed connection with Parker drives via dedicated interface.
I/O Integration: 4 digital inputs, 2 digital outputs; supports signal interaction with external devices directly.
Signal Isolation: 2500V AC isolation between communication ports and power supply
Protection Functions: Overvoltage/undervoltage protection; reverse polarity protection; ESD protection (±8kV contact, ±15kV air) per IEC 61000-4-2; surge protection per IEC 61000-4-5.
