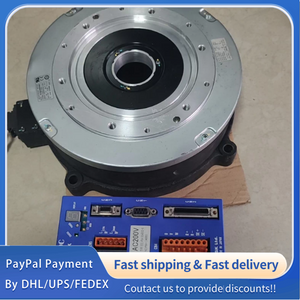

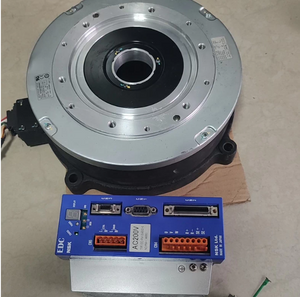

1SET used working M-PN4180KN001+EDC-PN4180AB502-B NSK EDC Series Servo Drive + Matching Control/Interface Motor#QYM001
1SET used working M-PN4180KN001+EDC-PN4180AB502-B NSK EDC Series Servo Drive + Matching Control/Interface Motor#QYM001
1SET used working M-PN4180KN001+EDC-PN4180AB502-B NSK EDC Series Servo Drive + Matching Control/Interface Motor#QYM001
| Parameter Category | English Specification | |
|---|---|---|

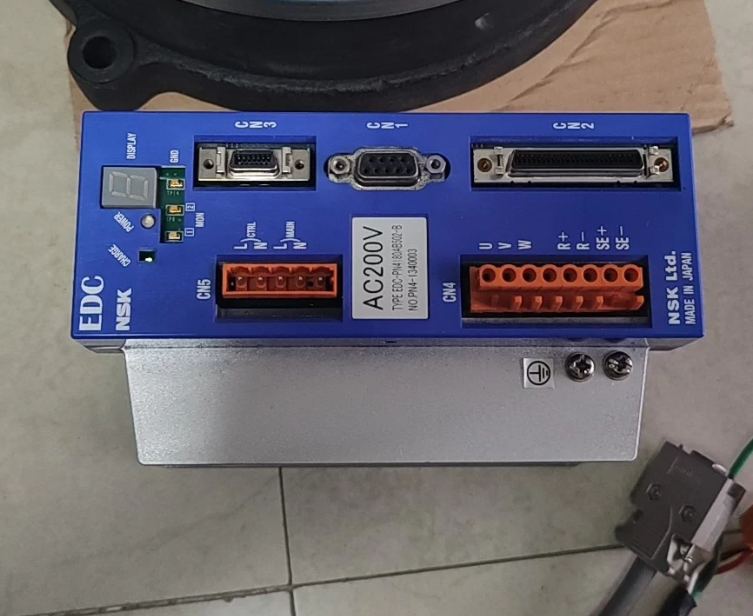

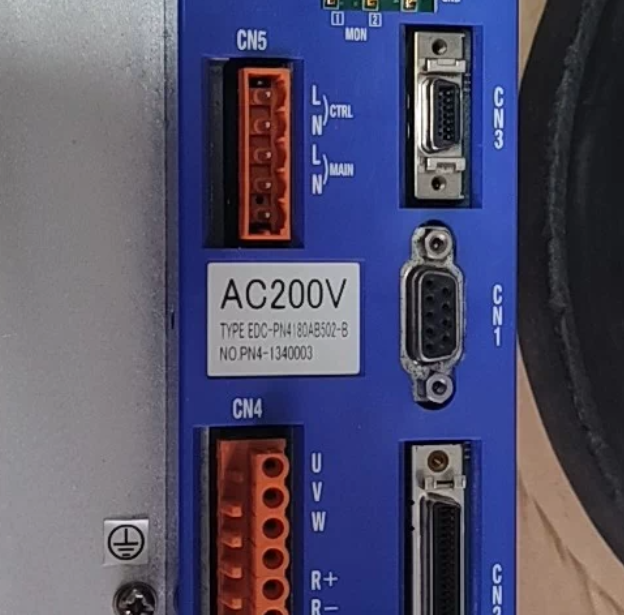

| Product Model | M-EDC-PN4180AB502-B | |
| Product Type | EDC Series Digital Servo Drive (with Integrated Motion Control Logic) | |
| Rated Input Voltage | 200–240 V AC, 1-phase/3-phase (±10% voltage tolerance) | |
| Rated Output Current | 8.0 A (Continuous); 24.0 A (3-second Peak, 10% duty cycle) | |
| Peak Output Power | 4.6 kW (at 240 V AC, 3-phase input) | |
| Control Modes | Position Control (pulse train/CW-CCW), Speed Control (analog voltage ±10 V), Torque Control (analog voltage ±10 V) | |
| Feedback Compatibility | Incremental Encoder (2500 P/R), Absolute Encoder (SSI protocol, 16–25 bit resolution) | |
| Communication Interface | Compatible with PROFINET Module (M-PN4180KN001); RS-485 (Modbus RTU) for local configuration | |
| Positioning Accuracy | ±0.01 pulse (pulse train control mode) | |
| Speed Regulation Range | 1:5000 (0–3000 r/min, rated load) | |
| Operating Temperature | 0°C to +55°C (Non-condensing; relative humidity 10%–90%) | |
| Storage Temperature | -20°C to +65°C | |
| Vibration Resistance | 10–55 Hz: 0.5 mm double amplitude; 55–150 Hz: 10 m/s² acceleration | |
| Shock Resistance | 100 m/s² acceleration (11 ms duration, half-sine wave) | |
| Mounting Method | DIN Rail Mount (35 mm standard rail) / Panel Mount | |
| Dimensions (W×H×D) | 145 mm × 210 mm × 180 mm | |
| Protection Class | IP20 (Front face; cabinet installation required for industrial environments) | |
| Protection Functions | Overcurrent, Overvoltage, Undervoltage, Overload, Motor Overheat, Encoder Signal Loss, Brake Fault | |
| Certifications | CE, UL, cUL, RoHS Compliant | |
| Key Version Features (Suffix -B) | Optimized firmware for high-frequency positioning; Enhanced brake control logic; Improved PROFINET real-time response latency |
| M-PN4180KN001 | |
| Product Type | PROFINET Communication Module for NSK EDC Series Servo Drives |
| Compatible Drive Models | M-EDC-PN4180AB502 and other NSK EDC Series Digital Servo Drives |
| Communication Protocol | PROFINET IO RT (Real-Time) |
| Data Transmission Rate | 10/100 Mbps (Auto-negotiation) |
| Logic Power Supply | 24 V DC ±10% |
| Power Consumption | ≤ 2 W |
| Signal Interface | Integrated with servo drive internal control bus; No external signal wiring required |
| Operating Temperature | 0°C to +55°C (Non-condensing, relative humidity 10%–90%) |
| Storage Temperature | -20°C to +65°C |
| Vibration Resistance | 10–55 Hz, 0.5 mm double amplitude; 55–150 Hz, 10 m/s² acceleration |
| Shock Resistance | 100 m/s² (11 ms duration, half-sine wave) |
| Mounting Method | DIN Rail Mount (Attached directly to matched NSK servo drive) |
| Dimensions (W×H×D) | 45 mm × 210 mm × 180 mm |
| Protection Grade | IP20 (Front face, when mounted in control cabinet) |
| Certifications | CE, RoHS Compliant |
| Key Functions | 1. Real-time data exchange between servo drive and PLC
|
