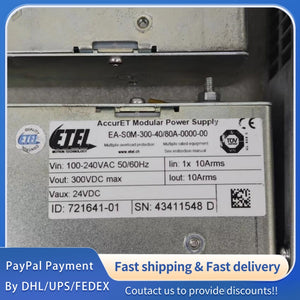

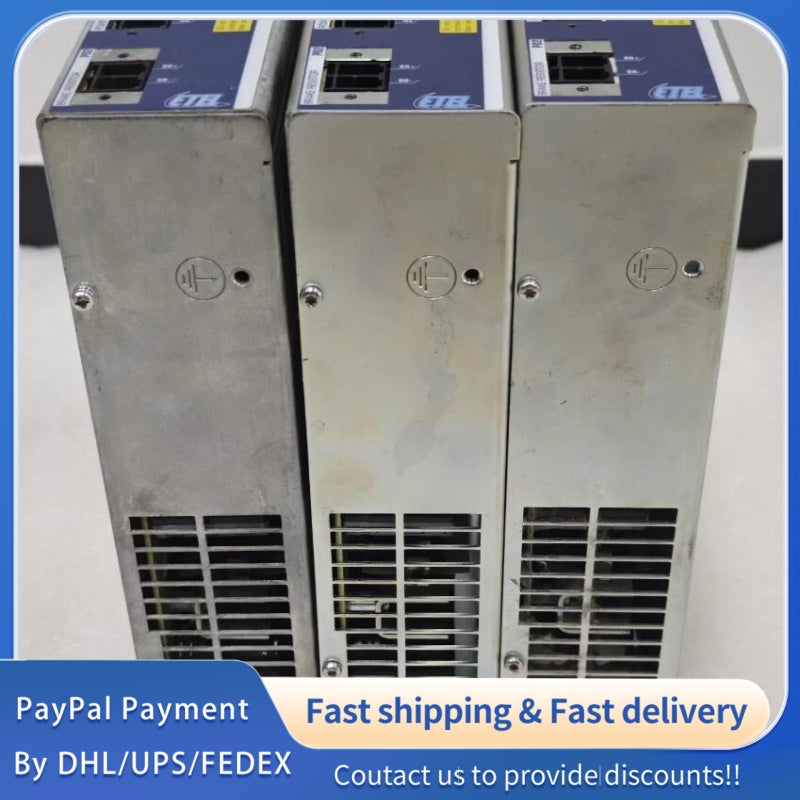

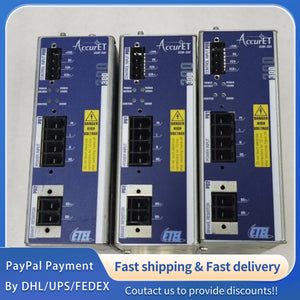

1PC for used ETEL Servo Drive EA-S0M-300-40/80A-0000-00 #LYQ007
1PC for used ETEL Servo Drive EA-S0M-300-40/80A-0000-00 #LYQ007
1PC for used ETEL Servo Drive EA-S0M-300-40/80A-0000-00 #LYQ007
Part Number: EA-S0M-300-40/80A-0000-00; Model: EA-S0M-300-40/80A; Product Name: EA-S0M Series High-Precision Servo Drive
Brand: ETEL (ETEL SA, a Swiss-based global leader in high-precision motion control solutions, specializing in servo drives, motors, and positioning systems, widely applied in semiconductor manufacturing, precision machining, robotics, and aerospace industries)
Product Status: Original Industrial-Grade Servo Drive (Compliant with International Motion Control Standards); Product Category: EA-S0M Series Digital Servo Drives, Suitable for High-Dynamics and High-Precision Positioning Applications
Core Application: Designed for scenarios requiring ultra-high precision motion control, such as semiconductor wafer handling equipment, precision CNC machines, robotic arms, and optical inspection systems. It integrates advanced control algorithms to achieve smooth speed regulation, precise position control, and rapid dynamic response.
Core Features: Dual Current Rating (40A/80A); High-Resolution Feedback Support; Multiple Industrial Communication Protocols; Advanced Control Algorithms (PID, Feedforward); Comprehensive Protection Functions; Compact Rack-Mount Design; Industrial-Grade Stability for 24/7 Continuous Operation.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance
Current Parameters: Continuous Output Current 40A RMS; Peak Output Current 80A RMS (Duration: 3 seconds); Current Resolution 10mA; Current Loop Bandwidth Up to 1kHz; Overcurrent Threshold 100A RMS (Instantaneous Protection).
Voltage Parameters: Input Voltage 3-Phase AC 380V-480V (±10% Fluctuation Allowed); Input Frequency 50Hz/60Hz; DC Bus Voltage 530V-670V (Rectified from AC Input); Output Voltage 0-Vdc (Proportional to Input Voltage and Modulation Rate); Voltage Ripple ≤2% of DC Bus Voltage.
Power Specifications: Rated Power 30kW (Matching Continuous Current 40A @ 480V); Peak Power 60kW (Matching Peak Current 80A @ 480V); Power Factor ≥0.95 (Full Load Condition); Efficiency ≥96% (Normal Operation, Full Load).
2.2 Control & Feedback Performance
Control Modes: Position Control, Speed Control, Torque Control (Switchable); Positioning Accuracy ±0.001mm (With 17-Bit Encoder); Speed Regulation Accuracy ±0.01% (No-Load, Steady Speed); Torque Control Accuracy ±1% of Rated Torque.
Feedback Support: Compatible with Absolute Encoders (EnDat 2.2, BiSS C), Incremental Encoders (TTL/HTL), and Resolvers; Feedback Resolution Up to 23 Bits (Absolute Encoder); Encoder Signal Isolation Voltage 250V AC (1 Minute).
Dynamic Performance: Maximum Speed Up to 15,000 rpm (Depends on Motor Specifications); Acceleration/Deceleration Time 0.1s (From 0 to 10,000 rpm, No Load); Position Loop Cycle Time 125μs; Speed Loop Cycle Time 62.5μs.
2.3 Communication & Interface
Standard Communication Interfaces: 1×EtherCAT Interface (Compliant with EN 50170, Cycle Time Down to 125μs); 1×RS485 Serial Port (Support for Modbus RTU Protocol); 1×USB 2.0 Port (For Configuration and Debugging); 1×Ethernet Port (For Parameter Upload/Download and Monitoring).
Digital I/O Interfaces: 8×Digital Inputs (Optically Isolated, 24V DC); 4×Digital Outputs (Optically Isolated, 24V DC, Max. Load 1A); 2×Analog Inputs (±10V, 12-Bit Resolution, For Torque/Speed Command); 1×Analog Output (±10V, 12-Bit Resolution, For Status Feedback).
2.4 Protection & EMC Specifications
Protection Functions: Overcurrent Protection, Overvoltage Protection, Undervoltage Protection, Over-Temperature Protection, Short-Circuit Protection (Output to Ground), Motor Phase Loss Protection, Encoder Fault Protection, Reverse Polarity Protection (Control Circuit).
EMC Compliance: Compliant with IEC 61000-6-2 (Industrial Immunity) and IEC 61000-6-4 (Industrial Emission); EMC Emission Level Class B; ESD Protection Compliant with IEC 61000-4-2 (±8kV Contact, ±15kV Air); Surge Protection Compliant with IEC 61000-4-5 (±2kV Differential Mode, ±4kV Common Mode).
2.5 Environmental & Mechanical Specifications
Environmental Conditions: Operating Temperature 0℃ to 45℃ (For 40A Continuous Current, Derating Required Above 45℃); Storage Temperature -20℃ to 70℃; Relative Humidity 5% - 95% (Non-Condensing); Altitude ≤1000m (Derate 1% per 100m Above 1000m); Vibration Resistance Compliant with IEC 60068-2-6 (2g, 10-500Hz).
Mechanical Specifications: Mounting Type Rack Mount (19-Inch Standard Rack); Housing Material Aluminum Alloy (Heat Dissipating Structure); Dimensions 140mm (W) × 220mm (H) × 300mm (D); Weight Approximately 8kg; Protection Level IP20 (Front Panel, IEC/EN 60529).
2.6 Additional Features
Cooling Method: Forced Air Cooling (Built-in Fan, Speed Adjustable); Monitoring & Diagnostics: Built-in LED Indicators (Power, Operation Status, Fault); Real-Time Data Monitoring (Current, Voltage, Speed, Position); Fault Log Storage (Up to 50 Fault Records).
Certifications & Software: Compliant with CE, UL, and cUL Certifications; Compatible with ETEL Motion Control Software (For Parameter Configuration, Debugging, and Control Program Editing); Support for Firmware Upgrade via Ethernet or USB.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
