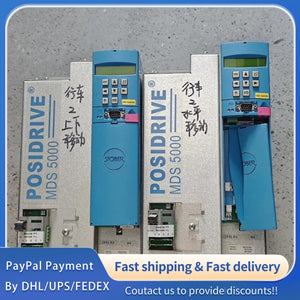

Part Number: MDS5220A; Product Name: STOBER Servo Drive
Brand: STOBER (Sibo De); Product Series: MDS Series Industrial Servo Drive, designed for high-dynamic motion control with excellent stability and load adaptability.
Product Status: Original New Unit (In Stock); Product Category: Industrial Grade Servo Drive, characterized by compact structure, low noise operation and long-term reliability.
Core Applications: Automated assembly lines, robotic systems, precision conveying equipment, packaging machinery, textile machinery, CNC auxiliary equipment and other industrial fields requiring high-response motion control.
Core Features: Multi-mode control switching; Built-in intelligent protection mechanism; Space-saving design; Perfect compatibility with STOBER servomotors; Intuitive parameter configuration and fault diagnosis.
2. Electrical Specifications
2.1 Power Parameters
Rated Input Voltage: 3-Phase 380-480 V AC; Rated Input Frequency: 50/60 Hz; Rated Output Power: 2.2 kW.
Rated Output Current: 5.5 A; Peak Output Current: 16.5 A (Short-time Operation, 30s Duration); Overload Capacity: 150% for 60s, 300% for 3s (Emergency Overload).
2.2 Control & Electrical Characteristics
Control Mode: Position Control, Speed Control, Torque Control (Seamless Switchable); Positioning Accuracy: ±0.001 mm (With Matching High-precision Encoder).
Speed Adjustment Range: 1:10000 (Steady Speed); Speed Fluctuation Rate: ≤±0.005% (Rated Speed); Response Frequency: ≥1000 Hz (Position Loop Bandwidth).
2.3 Feedback System
Encoder Interface: Support Absolute Encoder (EnDat 2.2 / BiSS C) and Incremental Encoder; Encoder Resolution: Up to 25-bit (Absolute Encoder).
Signal Processing: High-speed 32-bit DSP Signal Sampling and Digital Filtering; Signal Isolation: Opto-isolated (2500V AC) for Anti-interference in Industrial Environments.
3. Mechanical Specifications
3.1 Basic Mechanical Parameters
Mounting Type: Wall-mounted Installation; Installation Direction: Vertical (Recommended) or Horizontal (No Performance Impact).
Connection Type: Screw Terminal (Power Terminal) and Quick-connect Connector (Signal Terminal); Protection Grade: IP20 (Per IEC 60529 Standard).
3.2 Physical Dimensions & Weight
Overall Dimensions (W×H×D): 105 mm × 210 mm × 165 mm; Net Weight: Approximately 3.2 kg.
Housing Material: High-Strength Galvanized Sheet Metal; Surface Treatment: Anti-Corrosive Epoxy Spraying; Color: Industrial Gray (STOBER Standard).
3.3 Protection & Cooling
Protection Functions: Overcurrent Protection, Overvoltage Protection, Undervoltage Protection, Overheating Protection, Short-circuit Protection, Encoder Fault Protection, Motor Overload Protection.
Cooling Method: Natural Air Cooling (Low Power Consumption) with Optional Forced Air Cooling; Working Life: ≥50000 Hours (Continuous Operation Under Rated Conditions).
