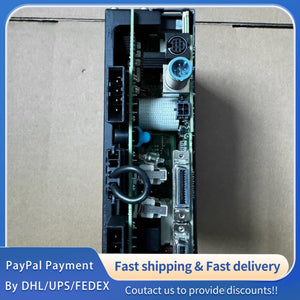

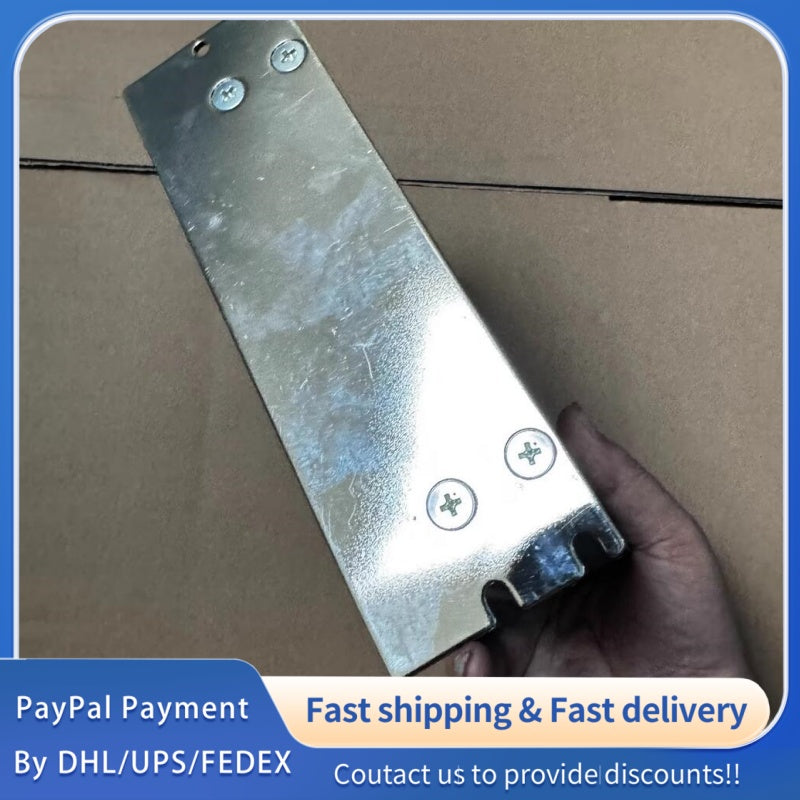

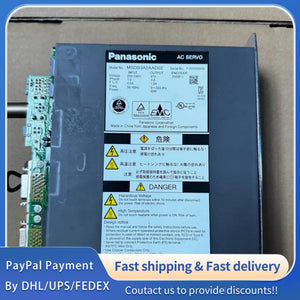

1 PCS used Panasonic Servo Driver MSDB3A2AAD02#LYQ007
1 PCS used Panasonic Servo Driver MSDB3A2AAD02#LYQ007
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Brand
|
Panasonic
|
-
|
Genuine, Original Panasonic Factory Production, 100% Authentic, Industrial-Grade Servo Driver
|
|
Product Model
|
MSDB3A2AAD02
|
-
|
Original Panasonic Model, Factory Calibrated, No Modification, Compatible with Panasonic Servo Systems
|
|
Product Name
|
Servo Driver
|
-
|
High-Precision Industrial Servo Driver, Designed for Panasonic AC Servo Motor Control Systems
|
|
Input Voltage Range
|
200~240 VAC, 50/60 Hz (3-Phase)
|
VAC/Hz
|
Wide voltage input, adapting to different industrial power supply environments, ensuring stable servo control[1]
|
|
Rated Output Current
|
3.0 A
|
A
|
Stable output current, matching the load demand of servo motors, ensuring smooth operation
|
|
Peak Output Current
|
9.0 A (1 Second)
|
A
|
Withstands short-term peak load, adapting to sudden acceleration and deceleration of servo motors
|
|
Control Mode
|
Position Control, Speed Control, Torque Control (Switchable)
|
-
|
Multi-control mode switching, flexible adaptation to different industrial application scenarios[1]
|
|
Response Frequency
|
2.3 kHz
|
kHz
|
High response speed, ensuring precise and rapid tracking of control signals, reducing position error
|
|
Speed Adjustment Range
|
1:5000 (Digital Control)
|
-
|
Wide speed adjustment range, suitable for both high-speed and low-speed stable operation requirements
|
|
Positioning Accuracy
|
±0.01 mm (Depends on Motor and Mechanical Structure)
|
mm
|
High positioning accuracy, meeting the precision control needs of industrial automation equipment[2]
|
|
Operating Temperature Range
|
0 ~ +55
|
°C
|
Stable performance in industrial environments, avoiding overheating caused by long-term operation[1]
|
|
Storage Temperature Range
|
-20 ~ +85
|
°C
|
Suitable for long-term storage, ensuring stability of internal components without damage
|
|
Protection Functions
|
Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit, Encoder Fault Protection
|
-
|
Comprehensive protection mechanism, preventing driver and motor damage caused by electrical abnormalities[2]
|
|
Cooling Method
|
Natural Convection
|
-
|
Efficient heat dissipation design, ensuring long-term stable operation without additional cooling equipment
|
|
Mounting Type
|
Chassis Mount
|
-
|
Easy to install, fits Panasonic standard equipment mounting positions, with 10mm minimum air gap recommended[2]
|
|
Working Humidity
|
20% ~ 80% (Non-Condensing)
|
RH
|
Adapts to different workshop humidity environments, preventing short circuit and component corrosion
|
|
Certifications
|
CE, UL
|
-
|
Complies with international industrial standards, ensuring product quality, safety and compatibility
|
|
Weight
|
Approx. 0.8 kg
|
kg
|
Lightweight design, reducing the load on equipment installation positions
|
