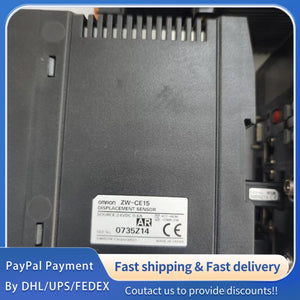

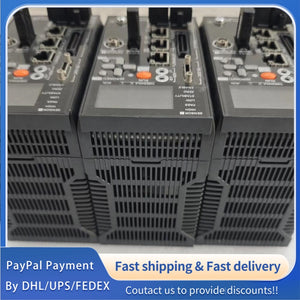

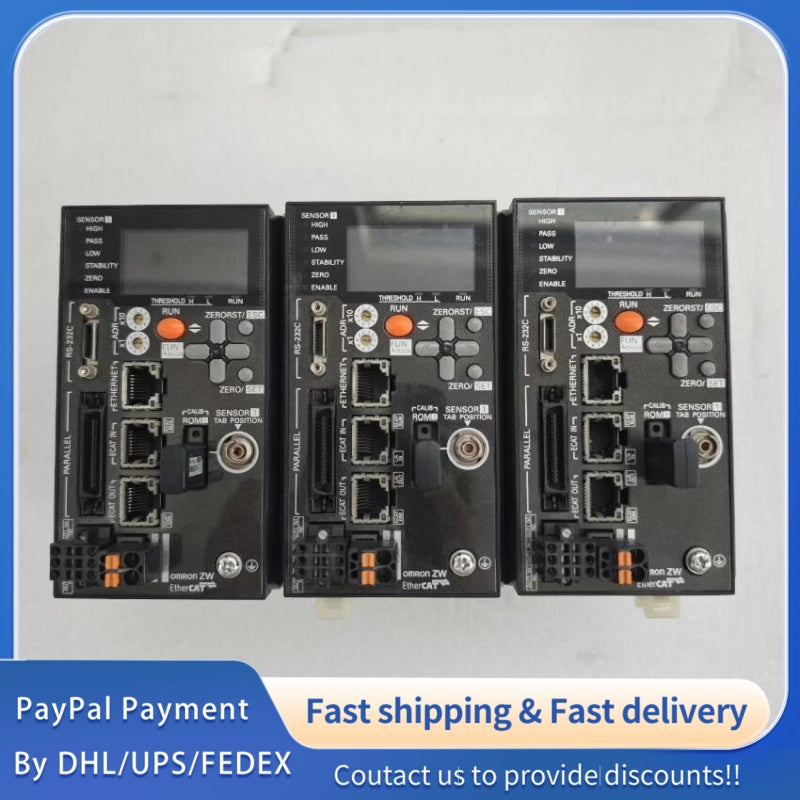

Part Number: ZW-CE15; Derivative Model: ZW Series Photoelectric Displacement Sensor; Sub-model: Diffuse Reflection Type with Digital Display
Alternate P/N: N/A (Fully Compatible with Omron PLCs, HMI Systems, Industrial Control Panels, and Third-party Automation Control Components)
Brand: Omron (Industrial Automation Division, Sensor & Control Solutions)
Product Category: Industrial Displacement Sensor (Photoelectric Type for High-precision Position Detection in Harsh Environments)
Product Series: Omron ZW Series (High-accuracy Photoelectric Displacement Sensors for Industrial Positioning & Measurement Applications)
2.1 Power Supply Parameters
Supply Voltage: 12-24VDC (ripple ≤10%); Voltage Tolerance: ±10% (10.8VDC ~ 26.4VDC); Power Consumption: ≤2.5W (typical operation), ≤3W (max); Current Consumption: ≤125mA (at 24VDC, full load).
2.2 Measurement Parameters
Measurement Range: 10-150mm (diffuse reflection mode, standard target); Measurement Accuracy: ±0.1mm (at 25°C, standard target, reference distance 80mm); Repeatability: ±0.03mm (under standard measurement conditions); Response Time: ≤1ms (fast response mode) for real-time detection.
Output Signals: Analog Output (4-20mA DC / 0-10V DC, selectable via DIP switch); Digital Output (2-channel NPN open collector, max 50mA per channel, 30VDC max); Output Resolution: 0.01mm (analog output), 0.001mm (digital display).
2.3 Protection Functions
Reverse Polarity Protection: Built-in, automatic protection against reverse power supply connection; Short Circuit Protection: Built-in for digital output channels, self-recovery after fault removal; Overload Protection: Automatic current limiting for analog output to prevent component damage.
ESD Protection: ±8kV (contact discharge), ±15kV (air discharge) per IEC 61000-4-2; EMI/EMC Compliance: EN 55011 Class B (emission), EN 61000-4 (immunity), IEC 61000-3-2, IEC 61000-3-3 (industrial grade).
