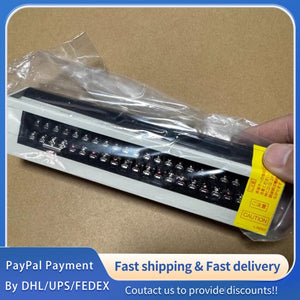

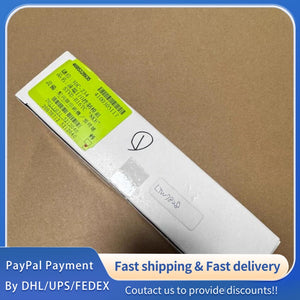

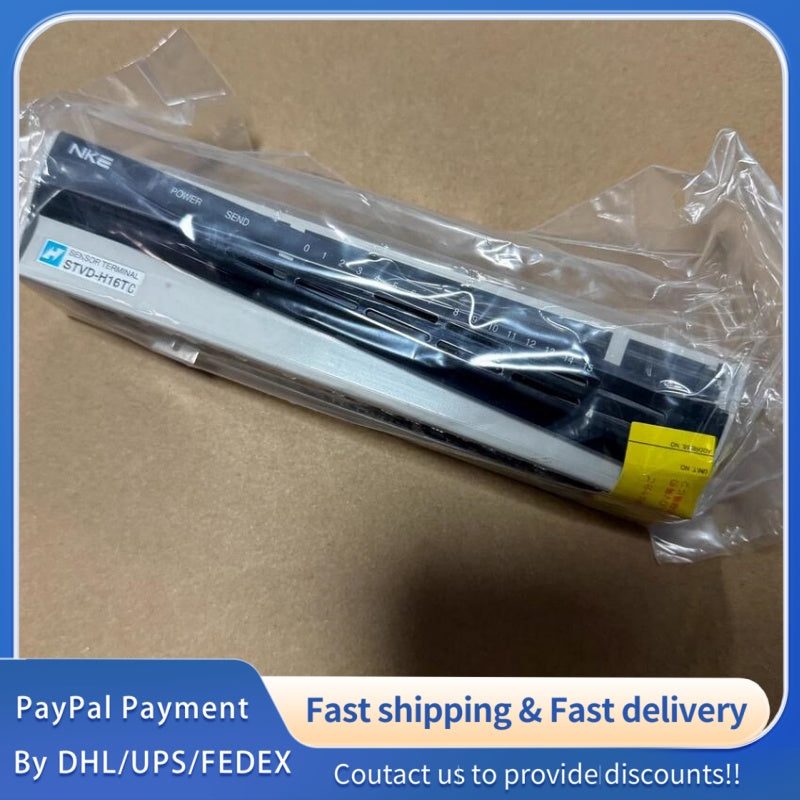

1 PCS used NKE STVD-H16T-C Sensor #LYQ007
1 PCS used NKE STVD-H16T-C Sensor #LYQ007
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
NKE STVD-H16T-C Sensor Terminal
|
-
|
Genuine NKE product, designed for sensor signal conversion and transmission.
|
|
Model Number
|
STVD-H16T-C
|
-
|
C-specification, 16-point DC input sensor terminal, consistent with factory standards.
|
|
Brand & Manufacturer
|
NKE Corporation
|
-
|
Complies with NKE strict industrial sensor terminal standards, reliable performance.
|
|
Product Category
|
Input Sensor Terminal (Uniline System)
|
-
|
Converts signals from sensors (limit switch, photoelectric switch, proximity switch) to serial signals.
|
|
Application Field
|
Industrial Automation, PLC Connection, Sensor Signal Transmission
|
-
|
Suitable for general industrial scenarios, easy to connect with various PLCs.
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Power Supply Voltage (DC)
|
20.4
|
24
|
27.6
|
VDC
|
Stabilized DC power supply required to avoid malfunction.
|
|
Power Consumption
|
-
|
5.3
|
-
|
W
|
Does not include sensor power consumption.
|
|
Input Points
|
16
|
16
|
16
|
Points
|
DC input type, compatible with 3-wire sensors.
|
|
Transmission Speed
|
29.4
|
29.4
|
-
|
kbps
|
Basic transmission speed, bit synchronization mode.
|
|
Transmission Distance
|
-
|
-
|
200
|
m
|
Maximum transmission distance under basic conditions, multi-drop connection supported.
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Operating Temperature
|
0
|
25
|
50
|
℃
|
Non-condensing, stable performance in industrial environment.
|
|
Storage Temperature
|
-20
|
-
|
70
|
℃
|
Suitable for long-term storage without corrosion damage.
|
|
Operating Humidity
|
35
|
60
|
85
|
%RH
|
Non-condensing, avoid moisture damage to internal components.
|
|
Vibration Resistance
|
-
|
Complies with JIS C 0040
|
-
|
-
|
Meets Japanese industrial vibration resistance standards.
|
|
Shock Resistance
|
-
|
-
|
100
|
m/s²
|
Withstands short-term impact during transportation and installation.
|
|
Weight
|
-
|
-
|
270
|
g
|
Lightweight, easy for DIN rail installation.
|
