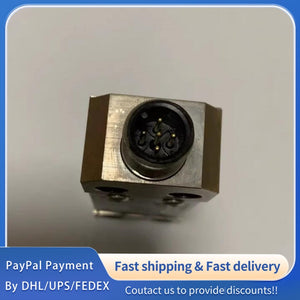

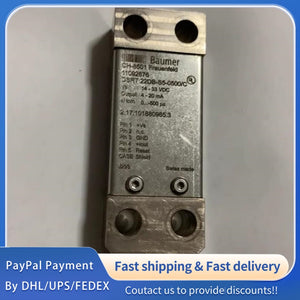

1 PCS used BAUMER Strain Sensor DSRT 22DB-S5-0500-C 11092676 #LYQ007
1 PCS used BAUMER Strain Sensor DSRT 22DB-S5-0500-C 11092676 #LYQ007
1 PCS used BAUMER Strain Sensor DSRT 22DB-S5-0500-C 11092676 #LYQ007
1. General Information (Original BAUMER Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Brand
|
BAUMER (Baumer Group)
|
-
|
Genuine, Original BAUMER Factory Production, 100% Authentic, Industrial-Grade High-Precision Strain Sensor
|
|
Product Model
|
DSRT 22DB-S5-0500-C 11092676
|
-
|
Original BAUMER Model, Factory Calibrated, No Modification, Fully Compatible with Industrial Testing Systems
|
|
Product Name
|
Strain Sensor
|
-
|
High-Precision Strain Measurement Sensor, Designed for Industrial Force, Tension and Pressure Testing Applications[1]
|
|
Sensor Type
|
Resistive Strain Gauge Sensor
|
-
|
Based on resistive strain gauge principle, converts elastic deformation into electrical signals for precise measurement[1]
|
|
Strain Range
|
0 ~ 500 με (Microstrain)
|
με
|
Precision measurement within full range, stable response, no signal distortion at maximum strain value
|
|
Sensitivity
|
2.0 ± 0.02 mV/V
|
mV/V
|
High sensitivity, ensuring accurate measurement of micro strain changes, consistent with BAUMER factory calibration standards
|
|
Excitation Voltage
|
9 ~ 12 VDC (Recommended: 10 VDC)
|
VDC
|
Stable DC excitation, adapting to industrial power supply, ensuring consistent sensor performance[1]
|
|
Accuracy Class
|
C2
|
-
|
High-precision class, comprehensive error ≤ 0.03% F.S, meeting industrial precision testing requirements[1]
|
|
Input Impedance
|
700 ± 7 Ω
|
Ω
|
Stable input impedance, reducing signal interference, compatible with mainstream data acquisition systems
|
|
Output Impedance
|
700 ± 7 Ω
|
Ω
|
Consistent with input impedance, ensuring efficient signal transmission, low signal attenuation
|
|
Temperature Compensation Range
|
-10 ~ +40 °C
|
°C
|
Effective temperature compensation, reducing measurement error caused by temperature fluctuations[1]
|
|
Operating Temperature Range
|
-35 ~ +65 °C
|
°C
|
Stable performance in harsh industrial environments, resisting high and low temperature impact
|
|
Storage Temperature Range
|
-40 ~ +85 °C
|
°C
|
Suitable for long-term storage, ensuring stability of internal strain gauge components without damage
|
|
Working Humidity
|
20% ~ 75% (Non-Condensing)
|
RH
|
Adapts to industrial humidity environments, preventing component corrosion and short circuits[1]
|
|
Protection Level
|
IP65
|
-
|
Dustproof and waterproof design, suitable for outdoor and harsh industrial on-site measurement[1]
|
|
Cable Type
|
4-Core Shielded Cable, 3m Length
|
m
|
Shielded design reduces electromagnetic interference, 3m length meets most installation requirements[1]
|
|
Wiring Method
|
Input (+): Red; Input (-): Black; Output (+): Green; Output (-): White
|
-
|
Standard wiring specification, easy to install and connect, avoiding wiring errors[1]
|
|
Certifications
|
CE, UL, ISO9001
|
-
|
Complies with international industrial standards, ensuring product quality, safety and compatibility
|
|
Weight
|
Approx. 0.8 kg
|
kg
|
Lightweight design, easy to install and disassemble, suitable for fixed and temporary measurement scenarios
|
