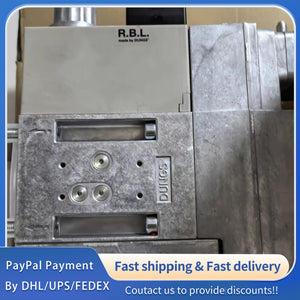

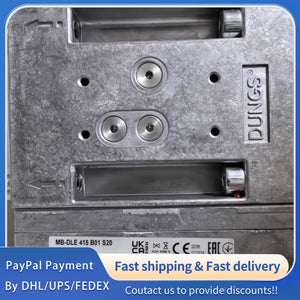

1 PCS used DUNGS MB-DLE 415 B01 S20 Pressure Sensor #LYQ007
1 PCS used DUNGS MB-DLE 415 B01 S20 Pressure Sensor #LYQ007
1 PCS used DUNGS MB-DLE 415 B01 S20 Pressure Sensor #LYQ007
Model Overview: DUNGS MB-DLE 415 B01 S20 is an original genuine pressure sensor manufactured by DUNGS (Germany), specialized in gas pressure detection and control for industrial combustion equipment and gas supply systems. Produced in strict accordance with DUNGS global quality control standards and factory calibration, it is 100% brand-new, free from any manual modification, and fully complies with EU Gas Appliance Regulation and Pressure Equipment Directive as well as DUNGS official product specifications. This pressure sensor features high detection precision, stable performance, and strong environmental adaptability, integrated with dual solenoid valve design for safe and efficient gas pressure monitoring. It is widely applied in gas combustion equipment, gas supply pipelines and related industrial scenarios, providing reliable pressure detection support to ensure the safe and stable operation of the entire gas system[2][3].
|
Parameter
|
Specification (MB-DLE 415 B01 S20)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand & Origin
|
DUNGS, Original Germany Factory, Brand New Genuine Product
|
-
|
100% brand-new original pressure sensor produced by DUNGS (Germany), manufactured in strict accordance with DUNGS global quality standards, factory-tested and calibrated to ensure consistent and reliable performance in gas pressure detection scenarios.
|
|
Product Model
|
MB-DLE 415 B01 S20
|
-
|
Original factory model, unchanged, belonging to DUNGS MB-DLE series pressure sensors with dual solenoid valve, designed for gas pressure detection and control in industrial combustion and gas supply systems.
|
|
Product Type
|
Pressure Sensor with Dual Solenoid Valve (Gas Pressure Detection)
|
-
|
Specialized pressure sensor integrated with dual solenoid valve, featuring fast closing and slow opening design with main volume restrictor, dedicated for gas pressure detection and safety control in gas combustion equipment.
|
|
Rated Diameter
|
DN 40; Connection: Rp 1 - Rp 2 (ISO 7/1 Pipe Thread)
|
DN, Rp
|
Rated diameter DN 40, with Rp 1 - Rp 2 pipe thread flange connection complying with ISO 7/1 (DIN 2999) standard, facilitating easy installation and connection with gas pipelines.
|
|
Inlet & Outlet Pressure
|
Outlet Pressure: 4 - 20 mbar; Inlet Pressure: Up to 360 mbar
|
mbar
|
Designed for outlet pressure range of 4 - 20 mbar and maximum inlet pressure of 360 mbar, suitable for low pressure difference scenarios with high flow requirements, ensuring stable gas supply pressure.
|
|
Maximum Operating Pressure
|
500 mbar (50 kPa)
|
mbar (kPa)
|
Maximum operating pressure of 500 mbar (50 kPa), with overload-resistant design to prevent sensor damage caused by excessive pressure, ensuring safe operation in harsh gas supply environments.
|
|
Operating Environment Temperature
|
-15 ~ 70 °C (0 °C Minimum for LPG Equipment)
|
°C
|
Suitable for ambient temperature ranging from -15 to 70 °C; when used in LPG equipment, the minimum operating temperature shall not be lower than 0 °C to avoid damage to sealing materials by liquid hydrocarbons.
|
|
Protection Level
|
IP54 (per EN 60529)
|
-
|
IP54 protection level complying with EN 60529 standard, effectively preventing dust and water splashing from entering internal components, adapting to harsh on-site environments and ensuring long-term stable operation.
|
|
Solenoid Valve Performance
|
Closing Time: < 1 s; Opening Time: < 20 s; Fast Stroke: Adjustable
|
s
|
Dual solenoid valve design: closing time less than 1 second, opening time less than 20 seconds, with adjustable fast stroke, ensuring quick response to pressure changes and safe control of gas flow.
|
|
Operating Voltage (Solenoid Valve)
|
AC 220-230 V, 50/60 Hz (-15% ~ +10%)
|
V AC, Hz
|
Solenoid valve powered by AC 220-230 V, compatible with 50/60 Hz dual frequency, with voltage fluctuation tolerance of -15% ~ +10%, ensuring stable operation under different power supply conditions.
|
|
Medium Compatibility
|
Gas Series 1, 2, 3 and Other Neutral Gaseous Media
|
-
|
Compatible with gas series 1, 2, 3 and other neutral gaseous media, widely applicable in various gas combustion and supply scenarios, with reliable corrosion resistance and medium adaptability.
|
|
Electrical Connection
|
Plug Connection (per DIN EN 175301-803)
|
-
|
Electrical connection adopts plug design complying with DIN EN 175301-803 standard, facilitating on-site wiring and maintenance, ensuring stable signal transmission and electrical safety.
|
|
Weight
|
Net Weight: 6.6 kg; Shipping Weight: 8.0 kg
|
kg
|
Net weight 6.6 kg, shipping weight 8.0 kg, lightweight design for easy transportation, handling and on-site installation, complying with international transportation standards.
|
|
Response Time
|
Fast Response (Consistent with Solenoid Valve Action)
|
-
|
Fast response performance, consistent with the action speed of the integrated solenoid valve, enabling real-time detection and feedback of gas pressure changes to ensure timely safety control.
|
|
Warranty Period
|
1
|
Year
|
Provides 1-year original factory warranty, covering manufacturing defects and performance failures under normal use conditions, consistent with DUNGS global warranty standards, ensuring user rights and interests.
|
|
Certifications & Compliance
|
EU Gas Appliance Regulation, Pressure Equipment Directive, ISO 9001
|
-
|
Complies with EU Gas Appliance Regulation, Pressure Equipment Directive and ISO 9001 certification, with EU sample inspection certificate, meeting the safety and quality standards of global gas industry applications.
|
