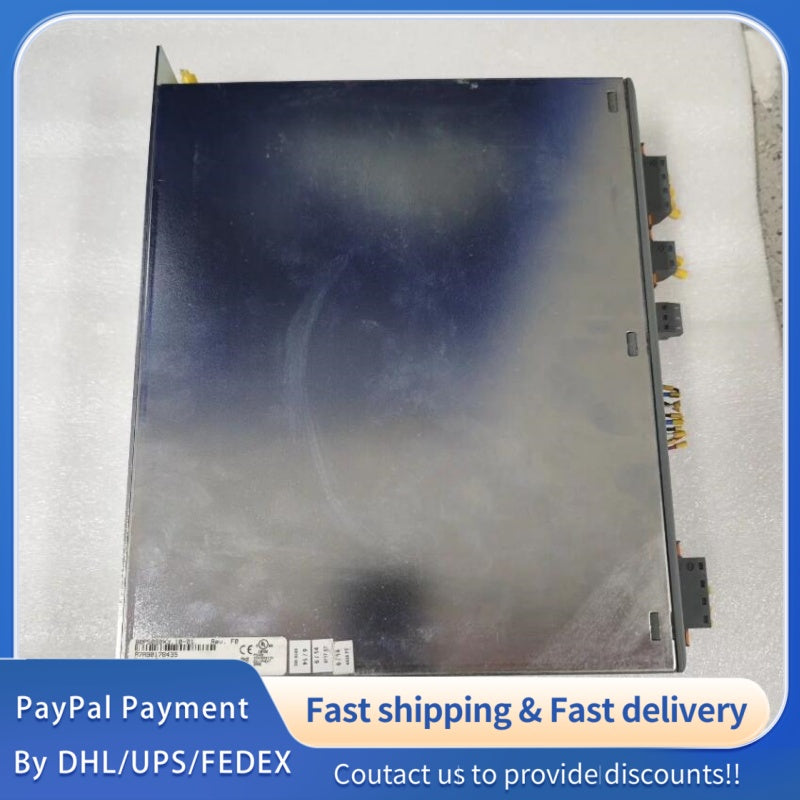

Part Number: 80PS080X3.10-01; Product Name: Industrial Drive Power Supply
Brand: B&R (B&R Automation, a global leader in industrial automation technology, specializing in servo drives, power supplies, PLCs and integrated automation solutions for manufacturing and process industries);
Product Status: Original New Unit; Product Category: Industrial Grade Drive Power Supply, Designed for Providing Stable and Reliable Power for B&R Servo Drives and Motion Control Systems in High-Demand Automation Scenarios.
Core Application: Widely integrated into B&R automation systems, including packaging machinery, material handling equipment, CNC machine tools, printing machinery, robotics and intelligent production lines. It supplies continuous and stable power to servo drives, ensuring precise motion control, fast response and consistent performance of the entire system, fully compatible with B&R servo drive series and mainstream industrial control components.
Core Features: High conversion efficiency for energy-saving operation; Stable output voltage and current with low ripple and noise; Multi-level protection functions for safe operation; Compact modular design for easy integration into cabinet installations; Wide input voltage range for adaptability to global power grids; Compliance with international industrial safety and EMC standards.
2. Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Power Supply Parameters
Input Voltage: 3-phase AC 380V-480V (±10% Tolerance), 50/60Hz; Optional Single-phase Input Mode for Specific Applications;
Output Voltage: DC 600V (Rated), Adjustable Range: 500V-650V; Output Current: 80A (Rated), 120A (Peak, 10s); Output Power: 48kW (Rated), 72kW (Peak);
Conversion Efficiency: ≥96.5% (Full Load), ≥95% (50% Load), Low Power Loss for Long-Term Operation;
Power Protection: Built-in overvoltage protection (Output ≥ 680V DC), undervoltage protection (Input ≤ 320V AC), overcurrent protection (Output ≥ 130A), overtemperature protection (Heatsink ≥ 85℃), short-circuit protection (Output Short-Circuit Response Time ≤ 10ms) and phase-loss protection, effectively preventing damage from abnormal power supply and load conditions.
2.2 Electrical Performance Indicators
Output Ripple & Noise: ≤0.5% of Rated Output Voltage (Peak-Peak), Ensuring Stable Power Supply for Precision Drives;
Voltage Regulation: ±0.5% of Rated Output Voltage (Line and Load Variation), High Voltage Stability;
Start-Up Time: ≤3s (From Power-On to Stable Output), Fast Response to System Requirements;
Communication Interface: 1 × CANopen Port (Optically Isolated), Supports B&R Automation Bus Protocol; 1 × RS485 Port, Supports Modbus RTU Protocol for Remote Monitoring and Parameter Configuration.
