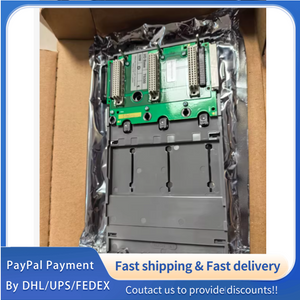

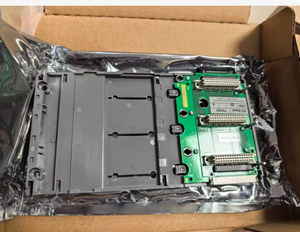

1PC NEW T9300 PN-175562 Allen-Bradley Auxiliary Power Supply Board, engineered for PowerFlex 700/700S/700HF AC drives (15–110 kW, 200–480 VAC) #QYM001
1PC NEW T9300 PN-175562 Allen-Bradley Auxiliary Power Supply Board, engineered for PowerFlex 700/700S/700HF AC drives (15–110 kW, 200–480 VAC) #QYM001
| Parameter | Technical Value |
|---|---|

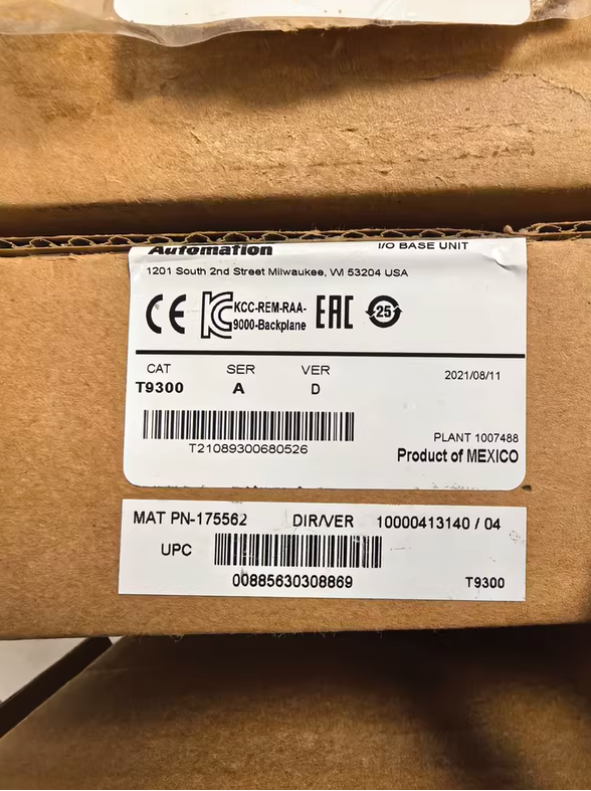

| Part Number | PN-175562 (Spare Kit: SP-185670) |
| Product Type | Auxiliary Power Supply Board |
| Primary Compatibility | PowerFlex 700/700S/700HF AC Drives; pairs with PN-204411 MCB and PN-104993 regulator board |
| Input Power | 24 VDC (main logic supply, ±10% tolerance); 3-phase 480 VAC (auxiliary input, 50/60 Hz) |
| Regulated Outputs | 5 VDC (1.5 A max, ±0.5% regulation); 12 VDC (1.0 A max, ±1.0% regulation); 24 VDC (0.8 A max, ±1.0% regulation) |
| Isolation Rating | 2500 VAC (input to outputs); 1500 VAC (output-to-output channels) |
| Protection Features | Overcurrent limiting (2× rated current, auto-recovery); overvoltage clamping; thermal shutdown (85°C threshold); reverse polarity protection |
| Hold-Up Time | ≥20 ms (for 24 VDC output, full load) – supports critical control circuits during power dips |
| Operating Temperature | 0–55°C (32–131°F); Storage Temperature: -40–85°C (-40–185°F) |
| Humidity Tolerance | 5%–95% RH, non-condensing |
| Vibration Resistance | 5–500 Hz, 1.5 g RMS (operational); 10 g RMS (non-operational) |
| Mounting Type | Drive-chassis integrated mount (2 M5 screws); fits standard PowerFlex 700-series cabinets |
| Certifications | CE, UL Listed, cUL Certified, RoHS Compliant |
