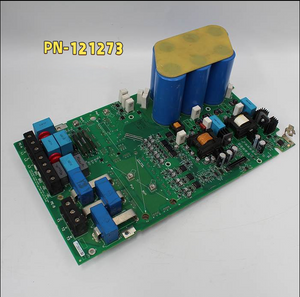

1PC used working PN-121273 for the auxiliary power supply board of Allen-Bradley (AB) PowerFlex 70 series frequency converters #QYM001 J1688
1PC used working PN-121273 for the auxiliary power supply board of Allen-Bradley (AB) PowerFlex 70 series frequency converters #QYM001 J1688
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | PowerFlex 70 series frequency converters; typical power range 5.5–75kW (subject to main drive model) |
| Core Functions | AC-to-DC voltage conversion, low-voltage power supply for control system, overvoltage/undervoltage monitoring, power failure detection and alarm |
| Power Supply | Input voltage: 3-phase 380–480V AC (±10% tolerance); Output voltage: DC 24V (±2% precision), DC 15V (for IGBT driver) |
| Power Output Capacity | DC 24V: 3A max; DC 15V: 2A max; Total power output ≤ 100W |
| Protection Functions | Input overvoltage/undervoltage protection, output short-circuit protection, overheat protection, reverse polarity protection; Compliant with IEC 61800-5-1 |
| Environment & Structure | Operating temperature: 0–55℃; Storage temperature: -40–85℃; PCB material: FR-4 with heat dissipation coating; Protection class: IP20 (cabinet mounting) |
| Physical Specifications | Dimensions: approx. 160×110×35mm; Weight: approx. 280g; PCB flame retardant rating: 94V-0 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
