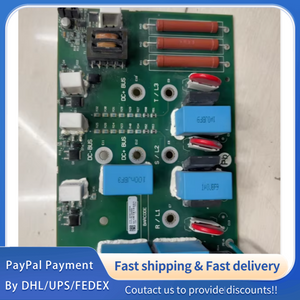

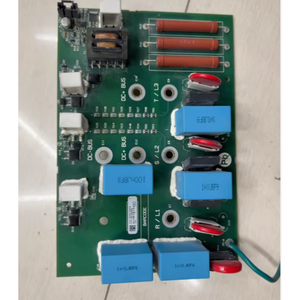

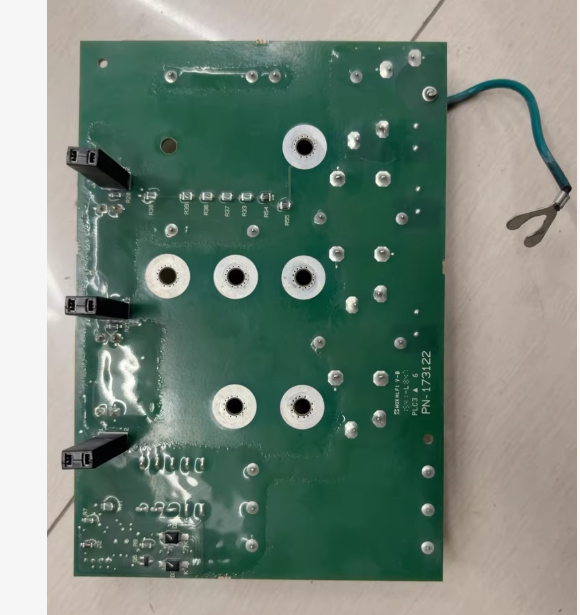

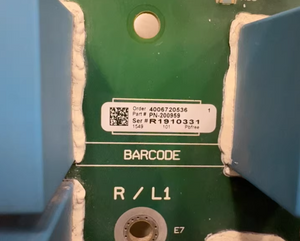

1PC used 100% tested PN-200959 PN-173122 for the auxiliary power supply board of Allen-Bradley (AB) PowerFlex 700 series AC frequency converters # QYM001 J1688
1PC used 100% tested PN-200959 PN-173122 for the auxiliary power supply board of Allen-Bradley (AB) PowerFlex 700 series AC frequency converters # QYM001 J1688
| Parameter Category | Core Details |
|---|---|
| Compatible Drives | PowerFlex 700 standard-duty drives; typical power range 15–110kW (varies by main drive model) |
| Core Functions | AC-to-DC rectification, multi-channel isolated DC output, power quality monitoring, overvoltage/undervoltage/overcurrent protection, power - ok signal feedback to main control board |
| Power Supply | Input: 3-phase AC 380–480V (50/60Hz); Main DC output: 24V DC (for control circuits); Auxiliary outputs: 15V DC/±12V DC (for sensors and logic circuits); Total power capacity ≤ 150W |
| Interface Configuration | 3-phase AC input terminals; 3-channel isolated DC output ports; Power - ok relay output; Overvoltage/undervoltage alarm signal pins; Status indicator LEDs (Power/OK/Fault) |
| Protection Functions | Input overvoltage/undervoltage protection; Output overcurrent limiting; Short - circuit protection; Overtemperature protection; ESD protection (compliant with IEC 61000-4-2); Conforms to IEC 61800-5-1 |
| Environment & Structure | Operating temperature: -10–60℃; Storage temperature: -40–85℃; PCB material: FR - 4 with high - temperature coating; Protection class: IP20 (cabinet - mounted); Relative humidity: 5%–95% (non - condensing) |
| Physical Specifications | Dimensions: approx. 150×100×30mm; Weight: approx. 220g; PCB flame - retardant rating: 94V - 0 |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
