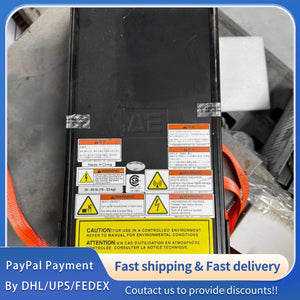

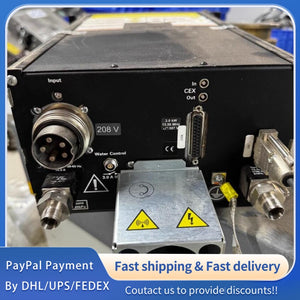

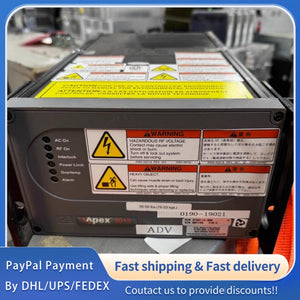

1 PCS used APEX RF Power Supply 3013 0190-19021-001 / 3156113-006 #LYQ007
1 PCS used APEX RF Power Supply 3013 0190-19021-001 / 3156113-006 #LYQ007
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
APEX RF Power Supply
|
-
|
Industrial Grade High-Precision RF Power Supply, Original APEX Factory Product
|
|
Model Numbers
|
3013 (0190-19021-001, 3156113-006)
|
-
|
Two compatible model codes for the same 3013 series RF power supply
|
|
Brand & Manufacturer
|
APEX (Original Factory)
|
-
|
Complies with APEX Strict Quality Control and Industrial RF Power Supply Standards
|
|
Product Certification
|
CE, RoHS, FCC, UL Certified
|
-
|
Meets International Industrial Safety, Electromagnetic Compatibility (EMC) and Environmental Standards
|
|
Core Application
|
Semiconductor Manufacturing, Plasma Processing, Industrial Heating, RF Testing Equipment
|
-
|
Suitable for High-Precision RF Power Supply Scenarios Requiring Stable Output
|
|
Protection Grade
|
IP20
|
-
|
Protects Against Solid Objects ≥12.5mm, Suitable for Cabinet Installation, Indoor Use Only
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage (AC)
|
85
|
230
|
264
|
V AC
|
Single-Phase, 50/60 Hz Auto-Adaptation, Stable Input Power Required, Ripple ≤ 100mVpp
|
|
Input Current (RMS)
|
1.2
|
2.5
|
4.0
|
A
|
At Rated Input Voltage, Full Load Condition
|
|
RF Output Power
|
0
|
1300
|
1500
|
W
|
Continuous Stable Output, Power Resolution 1W, Precise Adjustable
|
|
RF Operating Frequency
|
13.56
|
13.56
|
13.56
|
MHz
|
Fixed Frequency, Frequency Stability ±0.01%
|
|
RF Output Voltage (Peak)
|
200
|
500
|
800
|
V
|
Depends on Load Impedance, Stable Output Without Distortion
|
|
Load Impedance
|
50
|
50
|
50
|
Ω
|
Standard 50Ω Load, Compatible with Most RF Application Equipment
|
|
Power Conversion Efficiency
|
70
|
75
|
80
|
%
|
RF Final Stage Efficiency Up to 85%, Energy-Saving Design
|
|
Power Regulation Accuracy
|
-
|
±0.5
|
-
|
%
|
At Rated Output Power, Load Fluctuation ≤ 10%
|
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
|
Control Mode
|
Analog Control (0~10V, 4~20mA), RS232, RS485
|
-
|
Multi-Control Mode Switchable, Easy Integration with Industrial Control Systems
|
|
|
RS-485 Baud Rate
|
9600 ~ 115200 (Configurable)
|
bps
|
Long-Distance Communication, Maximum Transmission Distance 1200m
|
|
|
Digital Input/Output
|
6 Inputs, 4 Outputs
|
Channels
|
TTL/OC Level, Configurable for Trigger, Alarm and Status Feedback
|
|
|
External Clock Synchronization
|
BNC (Female)
|
-
|
Supports External Clock Synchronization, Ensures Consistent Operation with Other Equipment
|
|
|
Start-Up Time
|
-
|
≤ 3
|
s
|
From Power-On to Stable RF Output, No Preheating Required
|
