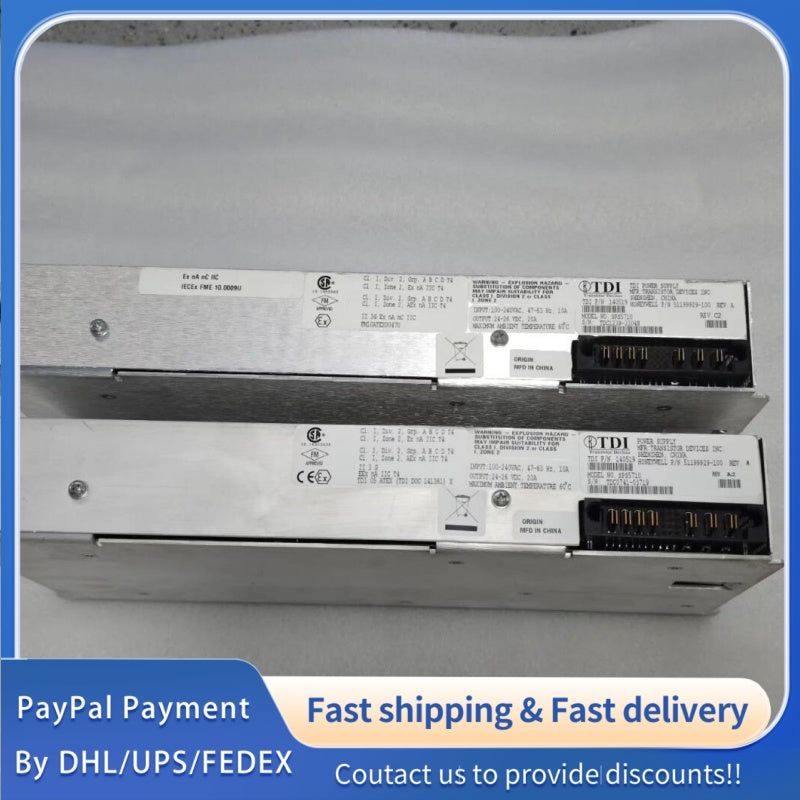

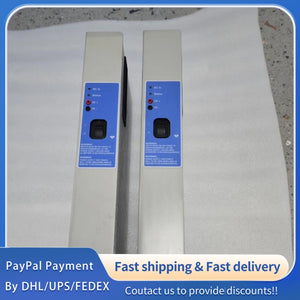

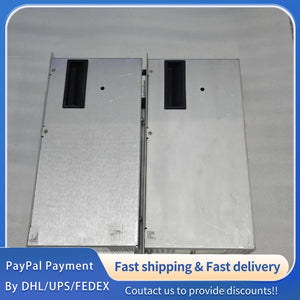

Part Number: 51199929-100; Product Name: Honeywell SPS5710 Industrial Power Supply
Brand: Honeywell; Product Series: SPS5710 Series, a high-reliability switched-mode power supply designed for industrial automation and control systems.
Product Status: Original New Unit (In Stock); Product Category: Industrial Grade Switching Power Supply, dedicated to providing stable and efficient power output for PLCs, HMIs, sensors and other industrial equipment.
Core Applications: Industrial control cabinets, factory automation lines, process control systems, power distribution equipment, marine automation, and other harsh industrial environments requiring continuous power supply.
Core Features: High conversion efficiency; Wide input voltage range; Comprehensive protection functions; Compact design for space-saving installation; Low ripple and noise; Stable output under full load conditions.
2. Electrical Specifications
2.1 Input Parameters
Input Voltage Range: AC 85V~264V (Universal Input) / DC 120V~370V; Frequency Range: 47Hz~63Hz (Nominal), 40Hz~400Hz (Wide Range).
Input Current: ≤5A (At AC 85V, Full Load); Inrush Current: ≤30A (Cold Start, AC 230V); Power Factor: ≥0.95 (At Full Load, AC 230V, 50Hz).
2.2 Output Parameters
Output Voltage: DC 24V ±0.5% (Precision Regulation); Output Current: 10A (Continuous), 15A (Peak for 30 Seconds).
Output Ripple & Noise: ≤1% Vp-p (Full Load); Voltage Adjustment: ±10% (Manual Trim); Hold-Up Time: ≥20ms (At Full Load, AC 230V).
2.3 Protection Functions
Over-Voltage Protection (OVP): 27V~29V (Auto-Recovery); Over-Current Protection (OCP): 11A~16A (Constant Current Mode, Auto-Recovery).
Short-Circuit Protection (SCP): Full Output Short-Circuit (Auto-Recovery); Over-Temperature Protection (OTP): 85℃~95℃ (Hiccup Mode, Auto-Recovery After Cooling).
Reverse Polarity Protection: Not Supported (External Fuse Recommended); Surge Protection: ±2kV (Line to Ground, Per IEC 61000-4-5).
3. Environmental Specifications
3.1 Operating Environment
Operating Temperature: -20℃~70℃ (Derate 2% per ℃ Above 50℃); Storage Temperature: -40℃~85℃ (No Condensation).
Relative Humidity: 10%~95% RH (Non-Condensing, 0℃~60℃); Altitude: ≤2000m (Above Sea Level, No Derating); ≥2000m~5000m (Derate 5% per 1000m).
Vibration Resistance: 5Hz~500Hz, 0.5G (X/Y/Z Directions, Continuous Operation, Per IEC 60068-2-6); Shock Resistance: 30G (11ms Duration, Half-Sine Wave, Per IEC 60068-2-27).
3.2 EMC Standards
Emission Standards: EN 55032 Class B, FCC Part 15 Class B; Immunity Standards: EN 61000-4-2 (ESD ±8kV Contact, ±15kV Air), EN 61000-4-3 (Radiated Immunity 10V/m), EN 61000-4-4 (EFT ±2kV Power Line).
Protection Degree: IP20 (Front Panel); Pollution Degree: 2; Over-Voltage Category: Ⅱ (Industrial Environment).
