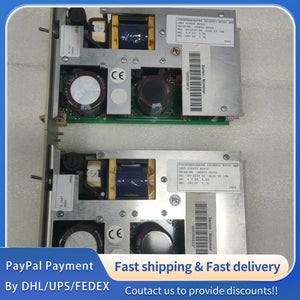

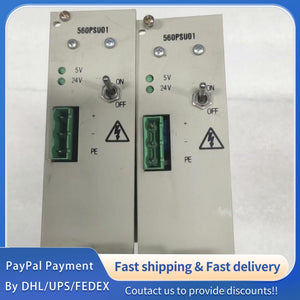

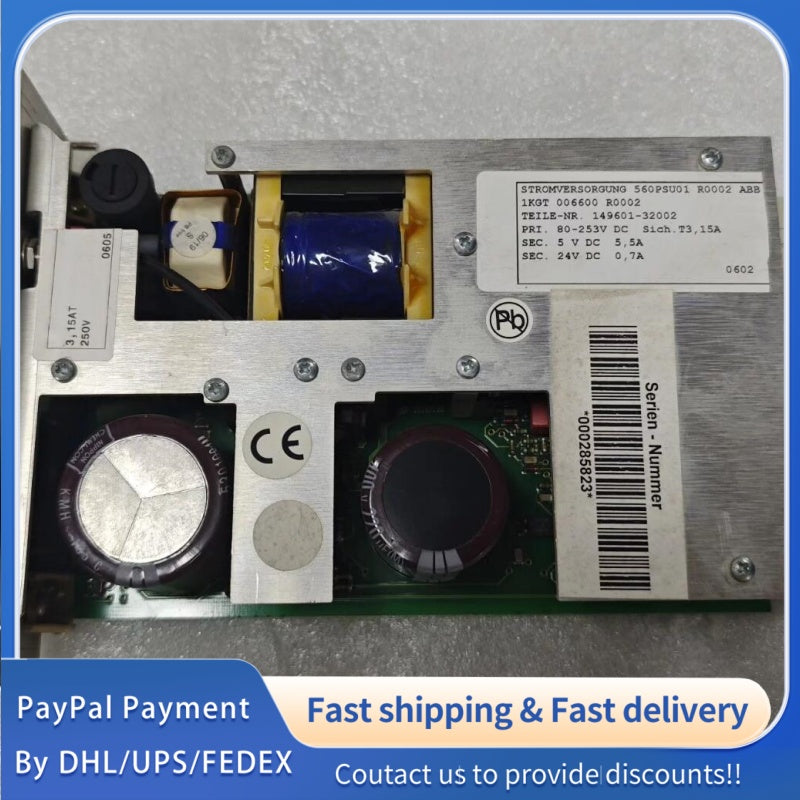

1 PCS USED ABB Power Supply 560PSU01 1KGT006600R0002 #LYQ007
1 PCS USED ABB Power Supply 560PSU01 1KGT006600R0002 #LYQ007
1 PCS USED ABB Power Supply 560PSU01 1KGT006600R0002 #LYQ007
Part Number: 1KGT006600R0002; Model: 560PSU01; Product Name: ABB Industrial Power Supply Unit
Brand: ABB (A Global Leader in Industrial Automation, Power Grids, and Electrical Equipment)
Product Status: Mature Product (In Stock for Industrial Replacement & System Maintenance); Product Category: Industrial-Grade Switching Power Supply, Designed for ABB Automation Systems
Core Application: Specifically engineered for ABB industrial automation systems, including inverters, controllers, and distributed control systems (DCS). It provides stable and reliable DC power for core control modules, sensors, and peripheral devices in harsh industrial environments, widely applied in power generation, metallurgy, petrochemical, water treatment, and manufacturing industries.
Core Features: High Conversion Efficiency; Wide Input Voltage Range; Industrial-Grade Anti-Interference Performance; Comprehensive Protection Functions; Stable Output Voltage; Fan-Cooled Thermal Management; Compact Design for Cabinet Installation; Compatibility with ABB Standard Control Cabinets.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Input Voltage: AC 110V/220V ±15% (Dual Range), 50/60Hz ±5%; Input Current: ≤8A @ AC 110V, ≤4A @ AC 220V (Full Load);
Output Voltage: DC 24V (Nominal), Adjustable Range: DC 23V - 25V; Output Current: 20A (Continuous), 25A (Peak for 10s);
Conversion Efficiency: ≥92% @ Full Load; Standby Power Consumption: ≤1W @ No Load; Ripple & Noise: ≤1% Vpp (Full Load);
Voltage Regulation: ≤±0.5% (Line Regulation), ≤±1% (Load Regulation); Response Time: ≤50ms (Load Step Change 0-100%).
2.2 Protection Functions
Over-Voltage Protection (OVP): Trigger Threshold ≥28V DC, Fault Alarm & Output Shutdown; Under-Voltage Protection (UVP): Trigger Threshold ≤20V DC, Fault Alarm & Output Halt;
Over-Current Protection (OCP): Constant Current Limiting, Trigger Threshold 22A - 24A, Auto-Recovery After Fault Removal; Short-Circuit Protection (SCP): Output Short-Circuit Detection, Latched Shutdown (Manual Reset Required);
Over-Temperature Protection (OTP): Internal Temperature ≥85℃, Fault Alarm & Thermal Shutdown; Surge Protection: ±2kV (Input Line) Per IEC 61000-4-5; ESD Protection: ±8kV (Contact), ±15kV (Air) Per IEC 61000-4-2.
3. Hardware Configuration & Mechanical Parameters
3.1 Hardware Configuration
Cooling System: 80mm DC Brushless Fan (Temperature-Controlled Speed, 2000rpm - 4500rpm); Indicator Lights: Power Indicator (Green, Steady On When Powered On), Fault Indicator (Red, Steady On When Fault Occurs);
Output Connector: 2 x 4-Pin Screw Terminals (Parallel Output for High Current); Input Connector: 3-Pin Screw Terminal (L/N/GND); Fault Signal Output: 1 x Optically Isolated Digital Output (Normally Open, for Alarm System Integration).
3.2 Mechanical & Installation Parameters
Dimensions (W × H × D): 120mm × 100mm × 180mm (Net Device, Including Fan); Mounting Type: DIN Rail Mounting (35mm Standard DIN Rail) or Screw Mounting (4 M4 Threaded Holes);
Weight: ≤1.2kg (Net Weight); Housing Material: Aluminum Alloy (Heat Dissipation), Flame-Retardant Plastic Cover (UL94 V-0); Protection Grade: IP20 (Indoor Cabinet Installation).
