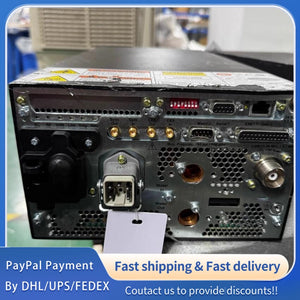

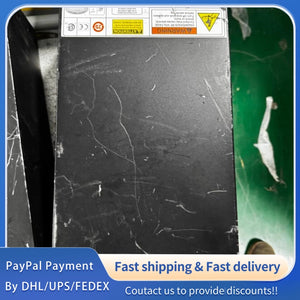

1 PCS used AE Paramount 3013 RF Power Supply 3156330-160G #LYQ007
1 PCS used AE Paramount 3013 RF Power Supply 3156330-160G #LYQ007
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
AE Paramount 3013 RF Power Supply
|
-
|
Original AE factory product, high-stability radio frequency power supply for industrial and scientific applications
|
|
Model Number
|
3156330-160G
|
-
|
Unique model code for AE Paramount 3013 series, consistent with factory calibration and quality control standards
|
|
Brand & Manufacturer
|
AE (Advanced Energy)
|
-
|
Complies with AE strict industrial RF power supply standards, ensuring high precision and stable frequency output
|
|
Product Certification
|
CE, UL, RoHS, ISO9001, IEC 61010-1
|
-
|
Meets international industrial safety, electromagnetic compatibility (EMC) and environmental protection standards
|
|
Core Application
|
Semiconductor Manufacturing, Plasma Processing, Thin Film Deposition, Etching Equipment, Scientific Research Instruments
|
-
|
Suitable for high-precision RF power supply scenarios, compatible with AE matching control systems
|
|
Protection Grade
|
IP54
|
-
|
Dust-proof and splash-proof, suitable for clean industrial workshops and laboratory environments
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Operating Frequency
|
13.55
|
13.56
|
13.57
|
MHz
|
Industrial standard RF frequency, frequency stability ±0.005%, no frequency drift under full load
|
|
Rated Output Power
|
150
|
160
|
170
|
W
|
Continuous stable output, power tolerance ±5%, consistent with model nominal power
|
|
Power Adjustment Range
|
10
|
80
|
100
|
% of Rated Power
|
Stepless adjustment, adjustable via front panel or remote control, adjustment precision ±1%
|
|
Output Impedance
|
-
|
50
|
-
|
Ω
|
Standard 50Ω RF output impedance, matching most industrial RF transmission systems
|
|
VSWR (Voltage Standing Wave Ratio)
|
-
|
1.1:1
|
1.3:1
|
-
|
Under rated output power, low standing wave ratio, reducing power loss
|
|
Output Connector Type
|
-
|
N-Type Female
|
-
|
-
|
High-frequency resistant, corrosion-resistant, ensuring stable RF signal transmission
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage (AC)
|
100
|
220
|
240
|
VAC
|
50/60Hz, wide voltage range, compatible with global industrial power supply standards
|
|
Input Current (Rated Load)
|
0.8
|
1.0
|
1.2
|
A
|
At 220VAC input, rated output power condition
|
|
Input Power Factor
|
0.90
|
0.95
|
-
|
-
|
At rated input voltage and rated output power, energy-saving design
|
|
Power Efficiency
|
85
|
88
|
90
|
%
|
High efficiency, reducing energy consumption and heat generation
|
|
Insulation Resistance
|
100
|
500
|
-
|
MΩ
|
At DC500V, ensuring electrical safety and anti-interference performance
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
