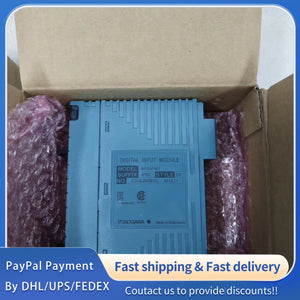

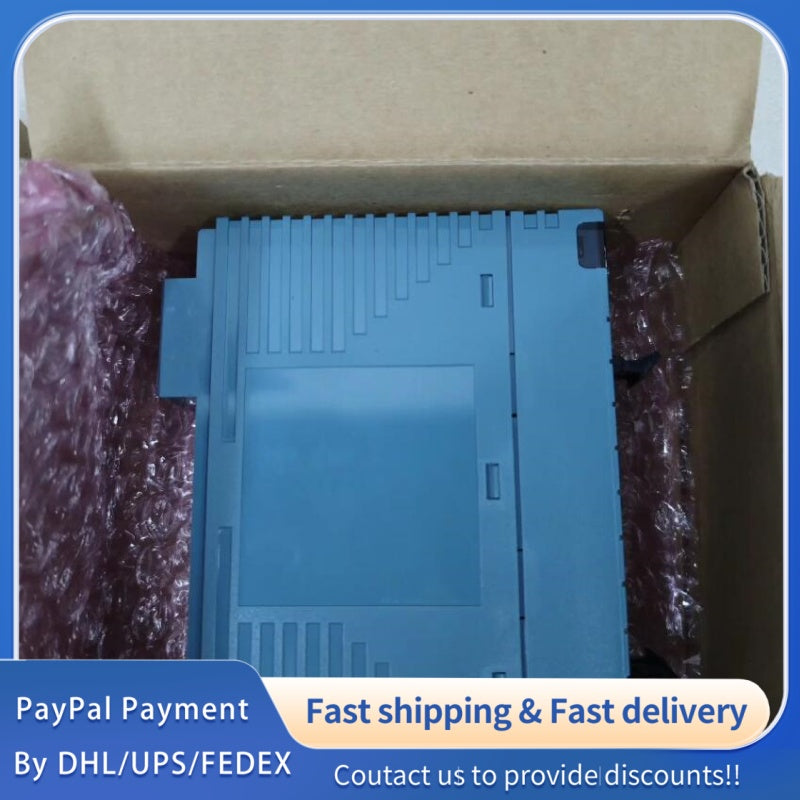

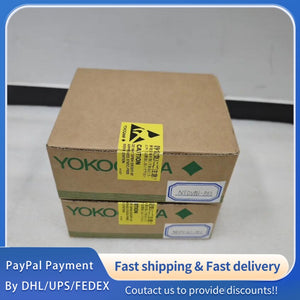

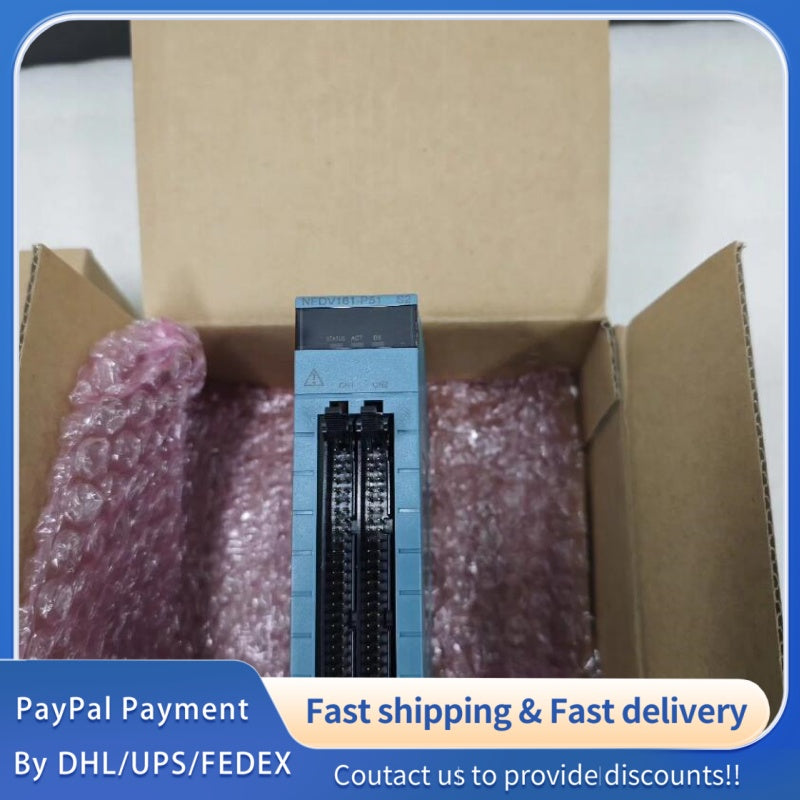

1pcs NEW Yokogawa Card Module NFDV161-P51 #LYQ007
1pcs NEW Yokogawa Card Module NFDV161-P51 #LYQ007
1pcs NEW Yokogawa Card Module NFDV161-P51 #LYQ007
Part Number: NFDV161-P51; Model: NFDV161-P51; Product Name: Yokogawa NFDV161-P51 Digital Input/Output Card; Product Series: Yokogawa CENTUM VP DCS Series, High-Reliability Digital I/O Module
Brand: Yokogawa (Yokogawa Electric Corporation, a global leader in industrial automation, measurement, and control solutions with over a century of engineering expertise. Renowned for its reliable DCS (Distributed Control System) products, Yokogawa serves key industries such as oil & gas, petrochemical, power generation, and pharmaceuticals. The NFDV161-P51 is a dedicated digital I/O card for the CENTUM VP system, designed to realize stable signal interaction between field equipment and DCS in critical industrial processes.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS Compliant); Product Category: 16-Channel Digital Input/Output (DI/DO) Card, engineered to receive digital input signals from field sensors, switches and send digital output signals to actuators, solenoid valves, enabling real-time control and status monitoring of industrial equipment.
Core Application: Exclusively used in Yokogawa CENTUM VP DCS systems for industrial scenarios including equipment on-off control, status detection, interlock protection, and sequence control. It is widely applied in petrochemical plants, oil refineries, thermal power stations, water treatment facilities, and pharmaceutical production lines, where reliable digital signal transmission and stable operation in harsh industrial environments are critical.
Core Features: 16-channel configurable DI/DO design for flexible application; Independent channel isolation to prevent cross-interference; Supports high/low level effective logic selection for DI signals and sinking/sourcing output mode for DO signals; Built-in noise suppression, ESD protection and surge protection for harsh industrial environments; Seamless integration with Yokogawa CENTUM VP system via backplane communication; Hot-swappable capability for easy maintenance without system shutdown; Self-diagnostic functions for quick fault localization.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Electrical Performance Parameters
Power Supply Requirements: DC 24V ±10% (Control Circuit Power, supplied by DCS backplane), Rated Input Current: 0.5A (Typical), Peak Input Current: 1.2A (10ms Duration); Power Consumption: ≤12W (Normal Operation), ≤15W (Peak Load).
Signal Processing Capability: Input Signal Type: DC 24V (DI), Support High/Low Level Effective (Configurable); Output Signal Type: DC 24V (DO), Support Sinking/Sourcing Mode (Configurable); Number of Channels: 16 (Independently Isolated); Response Time: DI ≤10ms (On-Delay), DO ≤8ms (On-Delay/Off-Delay); Configurable Filter Time (1ms/2ms/9ms/18ms) for DI Signals to Reduce Noise Interference.
Insulation Performance: Channel-to-Channel Isolation: 2500V AC (1 Minute); Channel-to-Ground Isolation: 2500V AC (1 Minute); Insulation Resistance: ≥100MΩ (500V DC); Dielectric Strength: 2kV AC for 1 Minute (Between Signal Circuit and Power Circuit).
2.2 Control & Interface Parameters
Control Functions: Supports Logic Configuration (High/Low Level, Sinking/Sourcing) via Yokogawa CS 3000/VP Engineering Tool; Built-in Channel Fault Detection, Automatically Triggering Alarm Signals for Abnormal Signals; Supports Interlock Control with DCS Controller to Ensure System Safety; Compatible with Origin Detection, Interrupt Shielding and Other Advanced Control Functions for Precision Equipment.
Interface Configuration: DCS Backplane Interface (Compatible with Yokogawa CENTUM VP Rack); Signal Terminals: Screw-Type Connectors (Accept 0.5-2.5mm² Wires); Wiring Mode: DI Supports Dry Contact/Wet Contact Signals, DO Supports 2-Wire/3-Wire Actuator Connection; No Hardware Modification Required for Channel Configuration, Fully Software-Configurable.
2.3 Communication Parameters
Backplane Communication: Data Transmission Rate: 100Mbps (Synchronous with CENTUM VP System); Communication Protocol: Yokogawa Proprietary High-Speed Protocol for Real-Time Data Exchange with DCS Controller; Supports Real-Time Upload of Channel Status and Fault Information, Enabling Remote Monitoring and Configuration.
Data Processing: Supports Continuous Status Sampling, Sampling Rate: 100 Samples/Second per Channel; Data Buffering: 128 Samples per Channel for Status Change Recording; Remote Logic Configuration and Parameter Adjustment via DCS Engineering Software.
