Parameter Category    Parameter Details

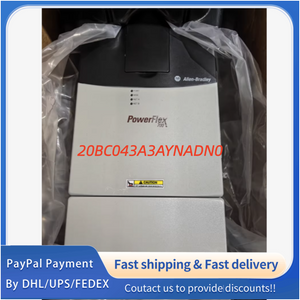

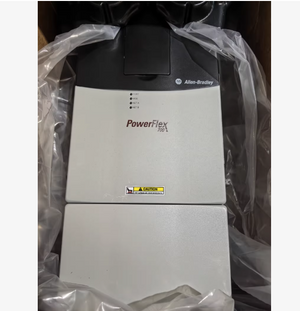

Model Identification    Catalog Number: 20BC043A3AYNADN0
Series: Allen‑Bradley PowerFlex 700 AC Drive
Power & Electrical Ratings    Input Voltage: 3‑Phase, 400 V AC, 50/60 Hz
Output Current: 43 A
Nominal Power: 22 kW (30 HP) Normal Duty, 18.5 kW (25 HP) Heavy Duty
Output Voltage: 0–Input Voltage, 3‑Phase
Output Frequency: 0–420 Hz (Vector Control), 0–400 Hz (Standard Control)
Control Modes    V/Hz Control, Sensorless Vector Control, Force Technology Field‑Oriented Control (with/without encoder feedback)
Integrated PID Controller
Operational Limits    Overload Capacity: 150% for 60 seconds, 200% for 3 seconds
Ambient Temperature (Operating): 0–40 °C (32–104 °F), derate above 40 °C
Relative Humidity: 5–95% (non‑condensing)
Operating Altitude: Up to 1000 m (3280 ft) without derating
Physical Specifications    Enclosure Type: NEMA/UL Type 1 (IP20)
Frame Size: 3
Cooling Method: Forced Air
Dynamic Braking Transistor: Included
Conformal Coating: Included
Communication & I/O    Standard: RS‑485 (Modbus RTU)
Optional: DeviceNet, ControlNet, EtherNet/IP
Digital I/O: Configurable inputs/outputs
Analog I/O: Configurable inputs/outputs
I/O Options: Vector Control with 24V I/O
Protection & Certifications    Overvoltage, Undervoltage, Overcurrent, Thermal Overload, Short Circuit, Ground Fault Protection
UL Listed, CE Certified, CSA Certified, RoHS Compliant
Key Features    EMC filter and common mode choke; integrated dynamic braking transistor; pre‑charge circuit; additional communication and I/O options

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
