Core Model Info

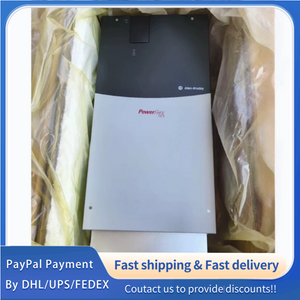

Catalog Number: 20BC260A0ANNANN0
Series: PowerFlex 700 AC Drive
Voltage Rating: 480V AC, 3-Phase
Current Rating: 260 A
Power Rating: 200 HP (150 kW) @ 460/480V, 50/60 Hz
Enclosure Type: NEMA 1 (IP21) - General Purpose, Indoor
Electrical Parameters
Input Voltage: 380-480V AC ±10%, 3-Phase, 50/60 Hz
Input Current: 260 A (full load)
Output Voltage: 0 to input voltage, 3-Phase
Output Frequency: 0-400 Hz (adjustable)
Control Mode: V/Hz, Sensorless Vector, Closed-Loop Vector (optional)
Overload Capacity: 150% for 60 seconds, 200% for 3 seconds (at 480V)
Power Factor: >0.95 (at full load)
Efficiency: ≥96% (typical at full load)
Mechanical Parameters
Mounting: Floor Mount (FM)
Cooling: Forced Air Cooling (internal fan + heat sink)
Communication & I/O
Built-in Communication: EtherNet/IP (default), RS-232/485 (Modbus RTU)
Digital I/O: 8 digital inputs, 4 digital outputs (configurable)
Analog I/O: 2 analog inputs (0-10V/4-20mA), 2 analog outputs (0-10V/4-20mA)
Optional Cards: Profibus DP, DeviceNet, ControlNet, Fiber Optic
Operating Specifications
Operating Temperature: 0°C to 40°C (32°F to 104°F) (derate 1%/°C above 40°C up to 50°C)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 5-95% RH, non-condensing
Altitude: 0-1000 m (3280 ft) (derate 1%/100 m above 1000 m up to 3000 m)
Vibration: 5-15 Hz (0.5 g), 15-500 Hz (0.2 g) (per IEC 60068-2-6)
Safety & Certifications
Safety Features: Built-in Safe Torque Off (STO) - SIL 2/PL d (optional activation)
Certifications: UL, cUL, CE, CCC, RoHS, IEC 61800-5-1
Short Circuit Protection: IGBT-based overcurrent protection, input line protection
