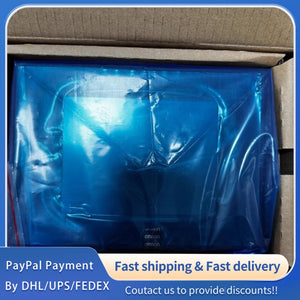

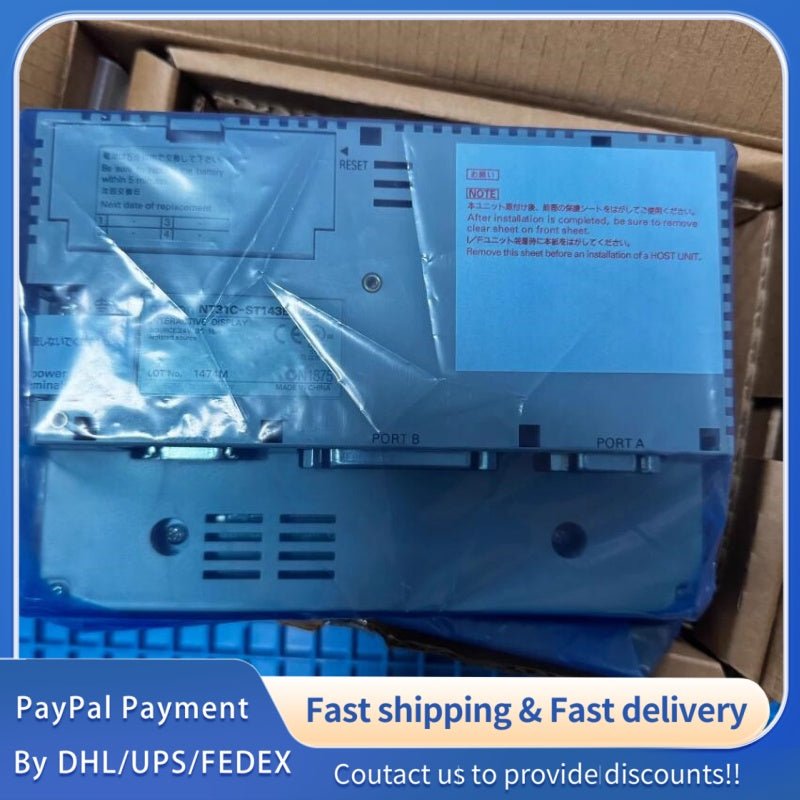

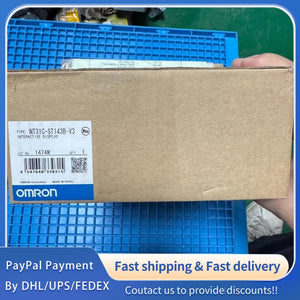

1 PCS new OMRON NT31C-ST143B-V3 Interactive Display #LYQ007
1 PCS new OMRON NT31C-ST143B-V3 Interactive Display #LYQ007
1 PCS new OMRON NT31C-ST143B-V3 Interactive Display #LYQ007
1. General Specifications (Original Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Official Notes
|
|
Product Name
|
Interactive Display (HMI)
|
-
|
Original OMRON (欧姆龙) genuine product, high-reliability human-machine interface for industrial control systems
|
|
Model Number
|
NT31C-ST143B-V3
|
-
|
Unique model code for OMRON NT31C series interactive display, strictly consistent with factory calibration and technical specifications
|
|
Brand & Manufacturer
|
OMRON (欧姆龙)
|
-
|
Complies with OMRON strict industrial HMI component standards, ensuring high stability, clear display and reliable interactive operation
|
|
Product Series
|
NT31C Series
|
-
|
Cost-effective interactive display series, specialized for industrial on-site operation, parameter setting and status monitoring
|
|
Function Type
|
Touch Operation, Parameter Display, Status Feedback, Alarm Prompt, Simple Logic Control
|
-
|
Integrates multiple interactive functions, facilitating human-machine communication and industrial on-site operation management
|
|
Display Type
|
Monochrome STN LCD
|
-
|
High-contrast monochrome display, clear visibility even in industrial workshop environments with strong light
|
2. Display Performance Specifications (Ta = 25℃, RH = 60%, Standard Working Conditions)
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Display Size
|
-
|
5.7
|
-
|
inch
|
Compact display size, suitable for narrow installation spaces in industrial control cabinets or equipment
|
|
Resolution
|
-
|
320 × 240 (QVGA)
|
-
|
Pixel
|
Clear resolution, supporting clear display of text, numbers, simple graphics and status icons
|
|
Display Color
|
-
|
Blue/White Backlight, Monochrome Display
|
-
|
-
|
High-brightness backlight, adjustable brightness, adapting to different ambient light conditions
|
|
Backlight Type
|
-
|
CCFL
|
-
|
-
|
Stable backlight performance, long service life, uniform light emission without dark areas
|
|
Backlight Life
|
20000
|
30000
|
-
|
Hours
|
Based on 24-hour continuous operation, meeting long-term industrial use requirements
|
|
Contrast Ratio
|
30:1
|
50:1
|
-
|
-
|
High contrast, ensuring clear display of text and graphics, easy to read on-site
|
|
Viewing Angle (Horizontal/Vertical)
|
60°/40°
|
80°/60°
|
-
|
Degree
|
Wide viewing angle, convenient for multiple operators to view the display content at the same time
|
|
Touch Panel Type
|
-
|
Resistive Touch
|
-
|
-
|
High-sensitivity resistive touch, compatible with finger and stylus operation, suitable for industrial on-site operation with gloves
|
|
Touch Response Time
|
-
|
50
|
100
|
ms
|
Fast touch response, no lag during operation, improving on-site work efficiency
|
3. Electrical Performance Specifications (Ta = 25℃, RH = 60%, Standard Working Conditions)
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage (DC)
|
18
|
24
|
30
|
VDC
|
Standard industrial DC input, compatible with OMRON industrial power supply systems, anti-voltage fluctuation
|
|
Operating Current
|
0.3
|
0.5
|
0.7
|
A
|
Low power consumption design, supporting long-term continuous operation without performance degradation
|
|
Power Consumption
|
7.2
|
12
|
16.8
|
W
|
Low power consumption, reducing industrial energy consumption and operating costs
|
|
Insulation Resistance
|
100
|
500
|
-
|
MΩ
|
High insulation performance between input and ground, effectively preventing short circuit and ensuring equipment safety
|
|
Dielectric Strength
|
-
|
1500
|
-
|
VAC (1 Minute)
|
Strong dielectric strength, able to withstand instantaneous voltage impact, ensuring stable operation in harsh industrial environments
|
|
Input Impedance
|
-
|
10
|
-
|
kΩ
|
High input impedance, reducing impact on the connected control system, ensuring signal stability
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
