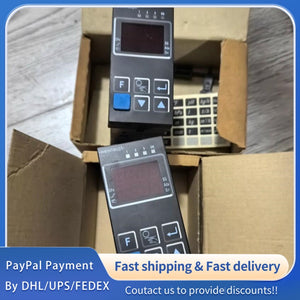

1 PCS NEW PMA KS40-108-9090M-D35 Burner Proportional Regulator #LYQ007
1 PCS NEW PMA KS40-108-9090M-D35 Burner Proportional Regulator #LYQ007
1 PCS NEW PMA KS40-108-9090M-D35 Burner Proportional Regulator #LYQ007
1. General Information (Original PMA Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Notes
|
|
Brand
|
PMA
|
-
|
Genuine, Original PMA Factory Production, 100% Authentic, Industrial-Grade Burner Proportional Regulator
|
|
Product Model
|
KS40-108-9090M-D35
|
-
|
Original PMA Model, Factory Calibrated, No Modification, Dedicated for Industrial Burner Proportional Control
|
|
Product Name
|
Burner Proportional Regulator
|
-
|
Intelligent Proportional Control Device, Designed for Industrial Furnace, Boiler Burner Combustion Regulation
|
|
Product Type
|
Intelligent Programmable Burner Proportional Regulator
|
-
|
With Proportional Combustion Control, Flame Monitoring, Safety Protection Functions, High Control Precision
|
|
Power Input Voltage
|
230 VAC ±10%
|
VAC
|
Stable voltage adaptation, compatible with industrial power supply specifications, ensuring reliable operation
|
|
Power Input Frequency
|
50/60 Hz (Dual Frequency Compatible)
|
Hz
|
Adapts to different regional power grid frequencies, no need for frequency adjustment, strong versatility
|
|
Power Consumption
|
Max. 8 VA
|
VA
|
Low power consumption, energy-saving, reducing industrial operation costs
|
|
Operating Temperature Range
|
-20 ~ +60 °C
|
°C
|
Adapts to harsh industrial working environments, stable performance under high and low temperature conditions
|
|
Storage Temperature Range
|
-40 ~ +85 °C
|
°C
|
Suitable for long-term storage and transportation, no damage to internal components in extreme temperature environments
|
|
Working Humidity
|
10% ~ 95% (Non-Condensing)
|
RH
|
Strong humidity adaptability, preventing component corrosion and short circuits in humid environments
|
|
Control Signal Input
|
0-10 VDC / 4-20 mA (Configurable)
|
VDC/mA
|
High-precision input signal, compatible with most industrial temperature controllers, ensuring accurate regulation
|
|
Proportional Output Signal
|
0-10 VDC / 4-20 mA (Dual Output, Configurable)
|
VDC/mA
|
Stable output signal, supporting simultaneous control of fuel and air valves for optimal combustion ratio
|
|
Control Precision
|
±0.5%
|
FS
|
High proportional control precision, effectively reducing energy consumption and ensuring stable combustion
|
|
Flame Detection Input
|
UV Photocell / Ionization Probe (Selectable)
|
-
|
High-sensitivity flame detection, fast response, automatic shutdown protection in case of flame failure
|
|
Safety Interlock Input
|
3 Optically Isolated Inputs (Configurable)
|
-
|
Supports high/low pressure, over-temperature interlock protection, ensuring safe and reliable system operation
|
|
Response Time
|
≤50 ms
|
ms
|
Fast response speed, ensuring real-time proportional regulation of burner combustion status
|
|
Protection Level
|
IP65 (Front Panel); IP20 (Rear Terminal)
|
-
|
Dustproof and waterproof front panel, suitable for harsh industrial on-site environments
|
|
Mounting Type
|
Panel Mount (Standard DIN Rail Compatible)
|
-
|
Easy to install and disassemble, compatible with standard industrial mounting rails, saving installation space
|
|
Certifications
|
CE, UL, ATEX
|
-
|
Complies with international industrial safety standards, suitable for global industrial application scenarios
|
|
Weight
|
Approx. 0.18 kg
|
kg
|
Lightweight design, reducing the load on panel mounting positions, easy to transport and install
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
