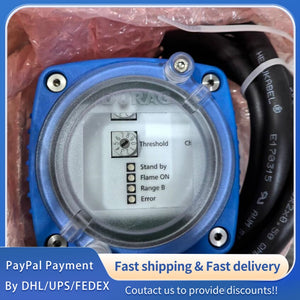

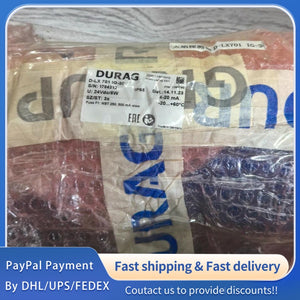

1 PCS new DURAG D-LX701 IG-30 flame detector #LYQ007
1 PCS new DURAG D-LX701 IG-30 flame detector #LYQ007
| Parameter | Specification |
|---|---|
| Product Type | Optical compact flame monitor for single burner flames |
| Sensor Type | IR (Infrared) sensor (780 nm – 1800 nm) |
| Supply Voltage | 24 VDC ± 20% |
| Power Consumption | Approx. 5 W |
| Analog Output | 0/4 … 20 mA (flame intensity), max. load 750 Ohm |
| Relay Output | 1x NO contact; Max. 24 VDC / 0.5 A |
| Flame Failure Detection Time (FFDT) | 1, 2, 3, or 5 s (configurable via DIP switches) |
| Ambient Temperature (Non-Ex) | -20 °C to +60 °C |
| Ambient Temperature (Ex Version) | -40 °C to +85 °C |
| Degree of Protection | IP65 (EN 60529), NEMA 4 |
| Sight Tube Connection | G 1¼" Female (or NPT 1¼" Female) |
| Purge Air Connection | G ½" Female (or NPT ½" Female) |
| Dimensions (Housing P2) | 80 x 80 x 250 mm |
| Weight (Housing P2, without cable) | Approx. 1.2 kg |
| Electrical Connection | 2.0 m shielded cable, 12 x 0.5 mm² (AWG 22) |
| Explosion Protection (Ex Version) | Ex db IIC T6 Gb / Ex tb IIIC T85 °C Db |
| Operating Modes | Intermittent and continuous operation |
| Opening Angle | 6 ° |
