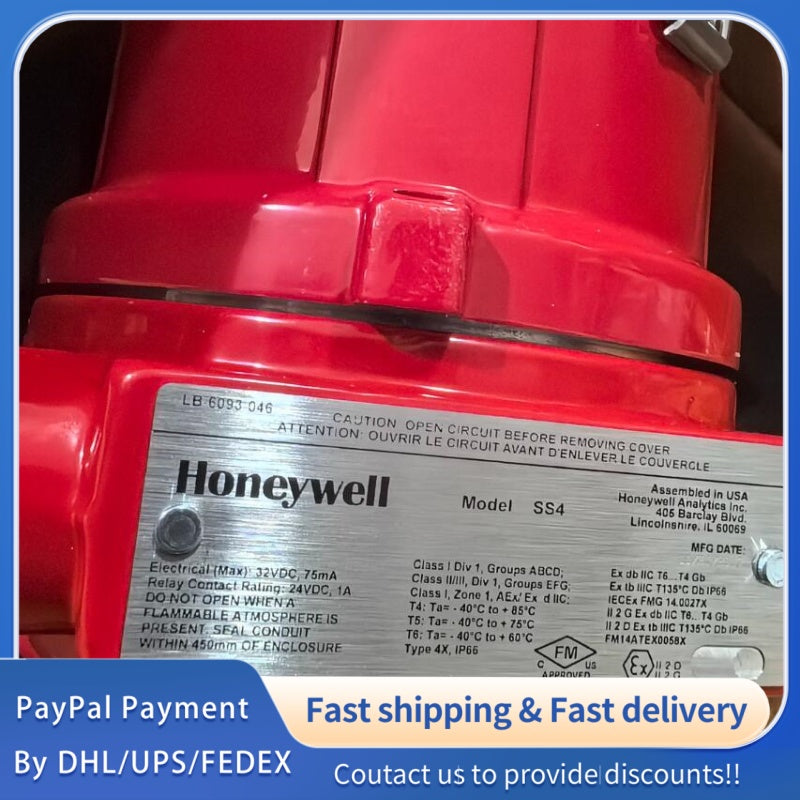

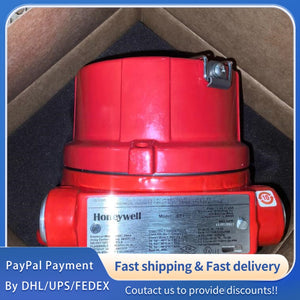

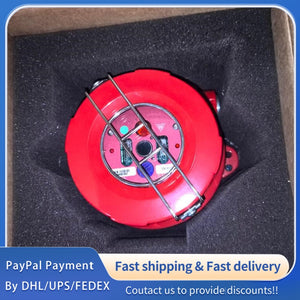

1 PCS NEW Honeywell SS4‑A2 Flame Detector #LYQ007
1 PCS NEW Honeywell SS4‑A2 Flame Detector #LYQ007
| Parameter | Specification |
|---|---|
| Model | SS4‑A2 |
| Detection Type | Multi‑Spectrum Electro‑Optical (UV/IR/VIS) |
| Response Time | 2–5 seconds to 1 sq. ft. gasoline fire at 60 ft (18 m) |
| Detection Range | Adjustable: 15–60 ft (4.5–18 m) |
| Field of View | 120° cone (60° off‑axis) |
| Spectral Sensitivity | UV: 185–260 nm
|
| Input Power | 24 VDC nominal (20.5–34 VDC) |
| Power Consumption | Normal: 68 mA (relay version)
|
| Output Relays | Fire: NO/NC, latching/non‑latching selectable
|
| Analog Output | Optional 4–20 mA (MA420‑4 module) |
| Operating Temp | ‑40°C to +85°C (‑40°F to +185°F) |
| Humidity | 5–98% RH, non‑condensing |
| Housing | Copper‑free aluminum (<0.4%), powder‑coated
|
| Weight | Aluminum: 1.8 kg (4 lb)
|
| Vibration | MIL‑STD‑810C, Method 514.2, Curve AW |
| Dimensions | 4.81 in (122 mm) dia × 4.40 in (112 mm) H |
| Approvals | FM, cFM, CSFM (Class I, Div. 1, Groups B/C/D) |
| Warranty | 2 years from factory shipment |
