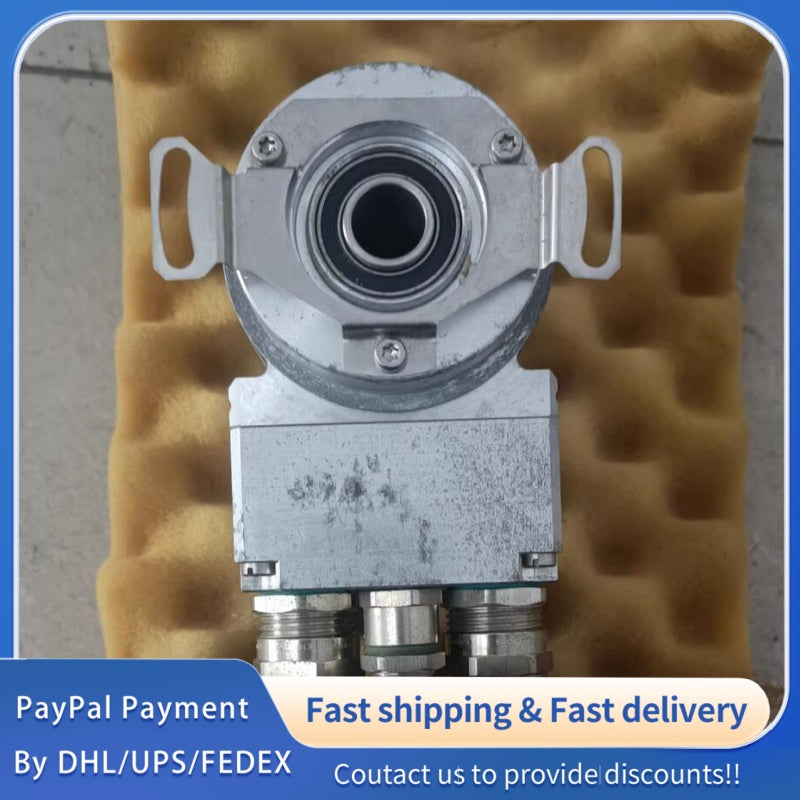

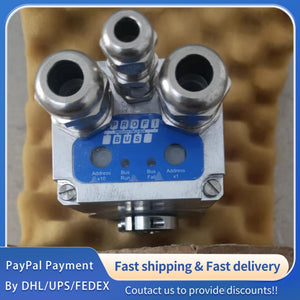

1 PCS new TR Electronic CEH58M-00043 Absolute Encoder #LYQ007
1 PCS new TR Electronic CEH58M-00043 Absolute Encoder #LYQ007
| Parameter | Value |
|---|---|
| Basic Identification | |
| Order Code | CEH58M-00043 |
| Product Family | CEH58 (58mm Housing, Hollow Shaft) |
| Measurement Principle | Optical Absolute |
| Resolution & Measuring Range | |
| Steps per Revolution (Single-Turn) | 4096 (12 bit) |
| Number of Revolutions (Multi-Turn) | 4096 (12 bit) |
| Total Resolution | 24 bit |
| Mechanical Data | |
| Shaft Type | Hollow Through Shaft |
| Shaft Diameter | 10 mm (10H7 tolerance) |
| Flange / Mounting | Standard 58mm Flange |
| Max. Speed | 6000 rpmTR Electronic |
| Shaft Load (Axial / Radial) | ≤ 10 N / ≤ 20 NTR Electronic |
| Moment of Inertia | ~2.5 × 10⁻⁶ kg·m²TR Electronic |
| Start-Up Torque (20°C) | ≤ 3.7 NcmTR Electronic |
| Weight | ~0.3 kgTR Electronic |
| Electrical Data | |
| Supply Voltage | 10 – 30 V DCTR Electronic |
| Current Consumption | ≤ 100 mA (typical) |
| Interface | SSI (Serial Synchronous Interface) |
| SSI Clock Frequency | 80 kHz – 1 MHz |
| Output Code | Binary / Gray (programmable) |
| Data Bits | 24 bit (12+12) |
| Environmental Data | |
| Operating Temperature | -20 °C … +70 °C |
| Storage Temperature | -30 °C … +80 °C |
| Humidity | ≤ 98 % RH (non-condensing) |
| Vibration Resistance (50–2000 Hz) | ≤ 100 m/s² (DIN EN 60068-2-6) |
| Shock Resistance (Half-Sine, 11 ms) | ≤ 1000 m/s² (DIN EN 60068-2-27) |
| Protection Class | IP54 (housing) |
| Accuracy | |
| Angular Accuracy | ± 0.5° (typical) |
| Repeatability | ± 1 LSB |
| Connection | |
| Connector Type | 12-pin M23 (radial) |
| Connector Code | Standard |
| Cable / Pinout | Refer to TR-ECE-TI-DGB-0372 |
