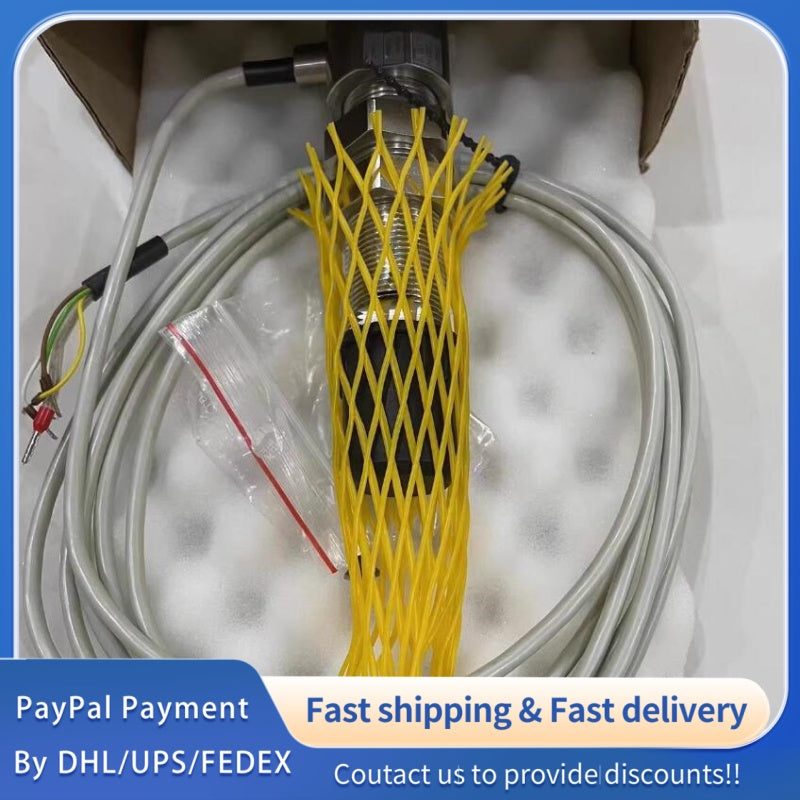

1 PCS new Honigmann RFS150-200N Tension Sensor #LYQ007
1 PCS new Honigmann RFS150-200N Tension Sensor #LYQ007
| Parameter | Specification |
|---|---|
| Model | RFS150-200N (RFS 150 SR/0200/10/3/O) |
| Measuring Principle | Strain gauge, radial force measurement (bearing journal deformation) |
| Rated Force (Resultant) | 200 N |
| Range Type | SR (Standard Range: 10–600 N) |
| Bearing Journal Diameter | 10 mm |
| Output Signal | mV/V (requires external amplifier) |
| Sensitivity | 1.5 mV/V |
| Linearity | ≤ ±0.1% FS |
| Resolution | ≥ 0.1% FS |
| Overload Protection | Up to 800% FS |
| Response Frequency | 200 Hz (5 ms) |
| Excitation Voltage | 10 VDC (max. 12 VDC) |
| Input Resistance | 350 Ω |
| Output Resistance | 350 Ω |
| Deflection | Max. 0.07 mm |
| Protection Class | IP50 |
| Housing Material | Stainless steel |
| Cable | 3 m shielded, 4×0.14 mm², open ends |
| Operating Temperature | -10 °C to +70 °C |
| Weight | Approx. 400 g |
| Mounting | Threaded housing + locknut; replaces existing guide roller |
| Wrap Angle | 20°–180° |
