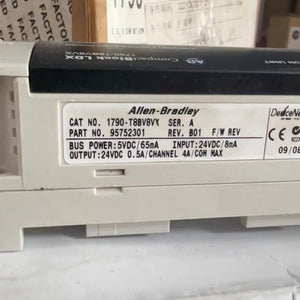

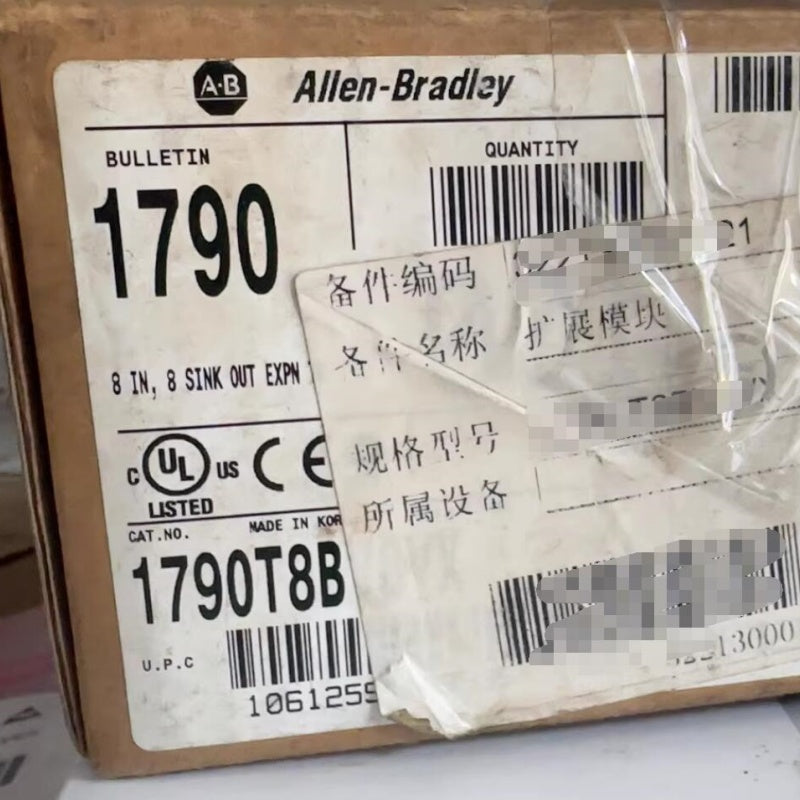

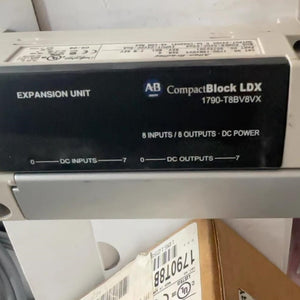

1 PCS new Allen‑Bradley 1790‑T8BV8VX Expansion Module #LYQ007
1 PCS new Allen‑Bradley 1790‑T8BV8VX Expansion Module #LYQ007
| Parameter | Value |
|---|---|
| Product Description | CompactBlock LDX 16 Expansion Block, 24V DC, 8 Universal Inputs / 8 Sinking Outputs |
| Catalog Number | 1790‑T8BV8VX |
| Network Type | DeviceNet |
| I/O Configuration | 8 Universal Inputs (Sink/Source), 8 Sinking Outputs |
| Field Power Supply | 24V DC nominal; 10–28.8V DC range |
| Input Specifications | |
| Number of Inputs | 8 non‑isolated, universal (sink/source)Rockwell Automation |
| On‑State Voltage | 9.6V DC min, 24V DC nom, 28.8V DC maxRockwell Automation |
| Off‑State Voltage (max) | 5.0V DCRockwell Automation |
| On‑State Current (max) | 8 mA per point @ 28.8V DCRockwell Automation |
| Input Impedance | 4.8 kΩ nominalRockwell Automation |
| Input Signal Delay (max) | OFF→ON: 10 ms; ON→OFF: 10 msRockwell Automation |
| Input Indicators | 8 green status LEDsRockwell Automation |
| Input Common | 8 points / 2 COM (non‑polarity)Rockwell Automation |
| Output Specifications | |
| Number of Outputs | 8 non‑isolated, sinkingRockwell Automation |
| On‑State Voltage | 10V DC min, 24V DC nom, 28.8V DC max |
| On‑State Voltage Drop (max) | 0.5V DC |
| Output Current Rating (max) | 0.5 A per output; 4.0 A per common |
| Output Signal Delay (max) | OFF→ON: 0.5 ms; ON→OFF: 1.0 ms |
| Output Indicators | 8 green status LEDs |
| Output Common | 8 points / 2 COM |
| General Specifications | |
| Isolation | I/O to logic: 1250V AC RMS (photocoupler); DeviceNet to logic: non‑isolated |
| Power Dissipation | 3.22 W @ 28.8V DC |
| Termination Type | Screw‑clamp terminals (M3.0, torque: 7 in‑lb) |
| Dimensions | Compact (118 mm × 52 mm × 42 mm)Rockwell Automation |
| Mounting | DIN rail or panel mount |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | –40°C to +85°C |
| Relative Humidity | 5%–95% (non‑condensing) |
| Lifecycle Status | End of Life (discontinued Dec 31, 2024) |
| Certifications | UL 508, CE, C‑TICK, Class I Div 2 (Groups A, B, C, D) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
