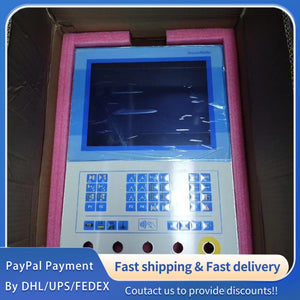

1 PCS new KraussMaffei Control Panel OP515-LD/M-2110 #LYQ007
1 PCS new KraussMaffei Control Panel OP515-LD/M-2110 #LYQ007
1 PCS new KraussMaffei Control Panel OP515-LD/M-2110 #LYQ007

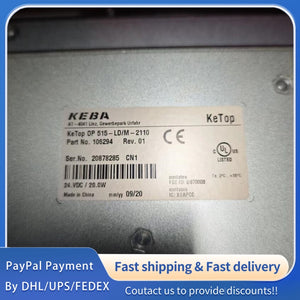

Part Number: OP515-LD/M-2110; Model: OP515-LD/M-2110; Product Name: KraussMaffei OP515-LD/M-2110 Industrial Control Panel; Product Series: KraussMaffei OP Series, Dedicated HMI Panel for Plastic Processing Machinery
Brand: KraussMaffei (A global leader in plastic and rubber processing machinery, systems, and solutions, renowned for its precision engineering, reliable performance, and integrated control technology. KraussMaffei products serve key industries including automotive, packaging, construction, and medical. The OP515-LD/M-2110 control panel is a custom-designed human-machine interface tailored for KraussMaffei injection molding machines and extrusion systems, enabling intuitive operation, real-time process monitoring, and seamless integration with machine control units.)
Product Status: Industrial-Grade Original Equipment (Factory Calibrated, 100% Functional, RoHS & REACH Compliant); Product Category: Industrial HMI Control Panel, featuring rugged construction, machine-specific function integration, and high compatibility with KraussMaffei proprietary control systems.
Core Application: Exclusively compatible with KraussMaffei injection molding machines, extrusion lines, and compounding systems, widely applied in plastic processing workshops, automotive component production facilities, and high-precision plastic manufacturing sites. It is particularly suitable for applications requiring 24/7 continuous operation, resistance to plastic dust and oil mist, and precise process parameter adjustment.
Core Features: High-definition industrial display with excellent visibility under workshop lighting; Machine-specific touch interface optimized for plastic processing operations; Seamless integration with KraussMaffei MC6, MC7, and newer control systems; Built-in protection against electrical interference and harsh industrial environments; Support for real-time data logging and parameter storage; Compliance with international industrial safety and EMC standards; Durable design adapted to plastic processing workshop conditions.
2. Core Performance Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Display Performance Parameters
Panel Specification: Panel Type: Industrial-Grade TFT LCD Panel; Display Size: 15.6 Inches (Diagonal); Aspect Ratio: 16:9 (Widescreen); Resolution: 1920 × 1080 Pixels (FHD); Display Colors: 16.7 Million Colors (24-Bit); Luminance (Brightness): 450 cd/㎡ (Nits), Adjustable from 5% to 100% via software or hardware buttons.
Visual Performance: Contrast Ratio: 1200:1 (Typical); Response Time: 6 ms (Rise + Fall); Viewing Angle: Horizontal ±80°, Vertical ±70° (Minimal Color Distortion); Color Gamut: ≥90% sRGB; Backlight Type: LED Backlight, Service Life: ≥50,000 Hours (Mean Time to Half Brightness); Anti-Glare Coating: Matte Surface to Reduce Reflection Under Strong Workshop Lighting.
Touchscreen Performance: Touch Technology: Industrial-Grade Capacitive Touchscreen; Touch Accuracy: ±1 Pixel (Full Screen); Touch Response Time: ≤30 ms; Number of Touch Points: 10 Points (Multi-Touch Support); Surface Hardness: ≥7H (Anti-Scratch, Resistant to Chemical Cleaners Used in Plastic Workshops); Touch Sensitivity: Adjustable via Control Software.
2.2 Electrical Performance Parameters
Power Supply Requirements: DC Input Voltage: 24V DC (Typical), Voltage Tolerance: -20% ~ +15% (DC19.2V ~ 27.6V); Rated Input Current: 500mA (Normal Operation), 1.2A (Peak, During Startup); Power Consumption: ≤12W (Normal Operation), ≤28.8W (Peak Load); Standby Power Consumption: ≤1W.
Signal Interfaces: Communication Interface: 1× Ethernet (RJ45, TCP/IP), 2× RS-485 (Modbus RTU, KraussMaffei Proprietary Protocol); Touch Interface: Integrated Capacitive Touch Controller with USB 2.0 Backup; Expansion Interface: 1× USB 3.0 (for Data Transfer/Parameter Backup), 1× HDMI (for External Display); Compatibility: Fully Supports KraussMaffei Machine Control Protocols and Standard Industrial Communication Protocols.
Insulation Performance: Insulation Resistance: ≥200MΩ (500V DC); Dielectric Strength: 2kV AC for 1 Minute (Power Circuit to Ground); Isolation: Optical Isolation Between Signal Circuit and Power Circuit (3000V AC, 1 Minute); Overvoltage Withstand: ≥36V DC (Transient).
EMC Performance: ESD Protection: ±8kV (Contact Discharge), ±15kV (Air Discharge) Per IEC 61000-4-2; Surge Protection: ±2kV (Line to Ground), ±1kV (Line to Line) Per IEC 61000-4-5; Fast Transient Immunity: ±2kV (Power Line), ±1kV (Signal Line) Per IEC 61000-4-4; EMI Filter: High-Performance Built-in Filter, Compliant with EN 61000-6-4 (Industrial Class A); EMC Compliance: EN 55022, EN 55032.
