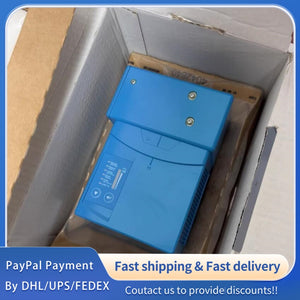

1 PCS new SICK CLV690-1000 #LYQ007
1 PCS new SICK CLV690-1000 #LYQ007
| Category | Parameter | Value | Remarks |
|---|---|---|---|
| Ordering Info | Part Number | CLV690-1000 | 1056601 |
| Core Features | Version | Standard Density | - |
| Reading Field | Oscillating Mirror | - | |
| Optical Focus | Auto Focus (Dynamic Focus optional) | ≤8 distance configurations | |
| Focus Adjustment Time | ≤20 ms | Trigger via Data Interface/Digital Inputs | |
| Optical & Laser | Light Source | Visible Red Laser | 660 nm |
| Laser Class | Class 2 | EN 60825-1:2014+A11:2021, IEC 60825-1:2014 | |
| Aperture Angle | ≤50° | - | |
| Reading Distance | 500 mm ... 2,100 mm | See reading field diagram for details | |
| Scanning Frequency | 400 Hz ... 1,200 Hz | - | |
| Code Resolution | 0.3 mm ... 1 mm | - | |
| Oscillation Frequency | 0.5 Hz ... 4 Hz | Deflection angle: –20° ... +20° (software-adjustable) | |
| Performance | Readable Codes | 1D Barcodes | Interleaved 2 of 5, Codabar, Code 128, Code 39, Code 93, GS1-128/EAN 128, UPC/GTIN/EAN |
| Print Ratio | 2:1 ... 3:1 | - | |
| Codes per Scan | 1–20 (Standard Decoder); 1–6 (SMART Decoder) | - | |
| Codes per Interval | 1 ... 50 | Auto-discriminating | |
| Characters per Interval | 5,000 | - | |
| Multiple Readings | 1 ... 100 | - | |
| Print Contrast (PCS) | ≥60% | Minimum required | |
| Electrical | Supply Voltage | 18 V DC ... 30 V DC | - |
| Power Consumption | 17 W | - | |
| Digital Inputs | 6 | Sensor 1 ... Sensor 6 | |
| Digital Outputs | 4 | Result 1 ... Result 4 | |
| Reading Pulse | Supported | Digital Inputs, Serial, Auto Pulse, CAN | |
| Interfaces | Ethernet | TCP/IP | 10/100 MBit/s; Data/Service Interface |
| PROFINET | Supported | Single/Dual Port; via cloning plug I/O/CAN | |
| EtherNet/IP™ | Supported | 10/100 MBit/s; via cloning plug I/O/CAN | |
| Serial | RS-232, RS-422, RS-485 | 0.3–115.2 kBaud; AUX (RS-232) = 57.6 kBaud | |
| CAN | SICK CSN | 20 kbit/s ... 1 MBit/s | |
| PROFIBUS DP | Supported | Via external CDF600-2 module | |
| Mechanics | Housing | Die-cast Aluminum | Light Blue (RAL 5012) |
| Window | Glass | - | |
| Enclosure Rating | IP65 | EN 60529/A1:2002 | |
| Dimensions (L×W×H) | 182 mm × 128 mm × 97 mm | - | |
| Weight | 2,200 g | - | |
| Reliability | MTBF | 100,000 h | - |
| MTTF (Laser Diode) | 40,000 h | At 25 °C | |
| Ambient | Operating Temperature | 0 °C ... +40 °C | - |
| Storage Temperature | –20 °C ... +70 °C | - | |
| Humidity | 90% | Non-condensing | |
| Ambient Light Immunity | 2,000 lx | On barcode | |
| Vibration Resistance | EN 60068-2-6:2008-02 | - | |
| Shock Resistance | EN 60068-2-27:2009-05 | - | |
| EMC & Safety | EMC | EN 61000-6-4:2007+A1 / EN 61000-6-2:2005 | - |
| Safety Class | Class III | EN 61140 | |
| Certifications | EU/UK/ACMA DoC, China-RoHS, cULus, KC, PROFINET, BIS | Laser safety declaration included | |
| Configuration | Storage | Integrated in Cloning Plug | - |
| Software | SOPAS ET | - | |
| Indicators | 6 LEDs + 10-segment Bar Graph | Ready, Result, Laser, Data, CAN, LNK TX; Reading rate | |
| Control | 2 Buttons | - |
