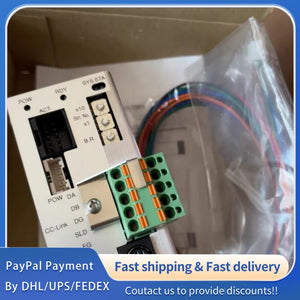

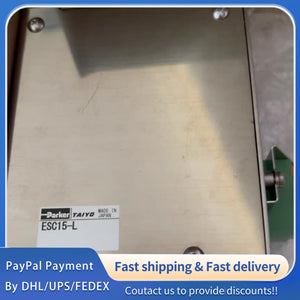

1 PCS new Parker ESC15-L Controller #LYQ007
1 PCS new Parker ESC15-L Controller #LYQ007
|
Item
|
Official Specification
|
|
Model Number
|
ESC15-L
|
|
Product Name
|
Parker ESC15-L Controller
|
|
Brand & Manufacturer
|
Parker Hannifin Corporation, USA (Original Factory)
|
|
Product Category
|
Industrial Grade Servo Controller, Single-Axis, Digital Control
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Input Voltage (DC)
|
18
|
24
|
30
|
V
|
Stable DC power supply, ripple ≤ 100mVpp
|
|
Input Current (No Load)
|
0.3
|
0.5
|
0.7
|
A
|
At 24V DC input, no load connected
|
|
Output Current (Continuous)
|
0
|
15
|
15
|
A
|
Continuous stable output, no overheating
|
|
Output Current (Peak, 10s)
|
20
|
25
|
30
|
A
|
Maximum peak current, duration ≤ 10 seconds, auto protection after timeout
|
|
Control Signal Voltage
|
4.5
|
5
|
5.5
|
V
|
TTL level, pulse/direction control, active high
|
|
Control Signal Frequency
|
1
|
50
|
100
|
kHz
|
Maximum frequency for stable control, no signal loss
|
|
Auxiliary Output Voltage
|
5.0
|
5.0
|
5.2
|
V
|
For sensor power supply, maximum current 1A
|
|
Parameter
|
Minimum
|
Typical
|
Maximum
|
Unit
|
Official Notes
|
|
Control Mode
|
-
|
Position / Speed / Torque Three Modes
|
-
|
-
|
Switchable via software or DIP switch, adaptive to different application scenarios
|
|
Position Control Accuracy
|
±0.01
|
±0.005
|
±0.02
|
mm
|
At rated speed, full load condition, with linear encoder feedback
|
|
Speed Control Range
|
0.1
|
1000
|
3000
|
rpm
|
Stable speed regulation, speed fluctuation ≤ ±0.5%
|
|
Torque Control Range
|
0.1
|
10
|
20
|
N·m
|
Continuous torque output, torque accuracy ±2%
|
|
Response Time
|
0.5
|
1.0
|
2.0
|
ms
|
Control signal response, from input to output
|
|
Encoder Feedback Support
|
-
|
Incremental Encoder (5V, 1000-10000 PPR)
|
-
|
-
|
Compatible with NPN/PNP output encoder, automatic identification
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
