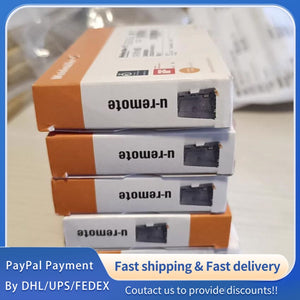

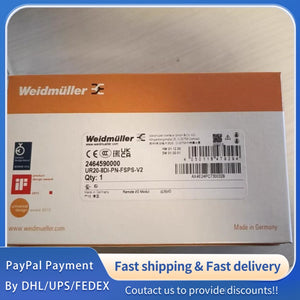

1 PCS new Weidmüller UR20-8DI-ON-FSPS-V2 module #LYQ007
1 PCS new Weidmüller UR20-8DI-ON-FSPS-V2 module #LYQ007
| Parameter | Value |
|---|---|
| Product Type | Safe Digital Input Module |
| Order Number | (To be confirmed; refer to PN variant 2464590000 for reference) |
| Number of Digital Inputs | 8 |
| Input Type | N-switching (NPN, ON-type), Type 1 / Type 3 per IEC 61131-2 |
| Input Voltage | 24 V DC ±20% / -15% |
| Input High Threshold | > 11 V |
| Input Low Threshold | < 5 V |
| Input Filter | Configurable |
| Sensor Connection | 2‑wire, 3‑wire, 4‑wire |
| Sensor Supply | Integrated (from input power path) |
| Current Consumption (I_IN) | 20 mA + load |
| Current Consumption (I_SYS, typ.) | 8 mA |
| Reverse Polarity Protection | Yes |
| Diagnostics | Module & individual channel diagnosis |
| Protection Class | IP20 |
| Dimensions (W × H × D) | 11.5 mm × 120 mm × 76 mm |
| Net Weight | Approx. 85 g |
| Mounting | TS 35 DIN rail |
| Operating Temperature | -20 °C … +60 °C |
| Storage Temperature | -40 °C … +85 °C |
| Humidity (Operation/Storage) | 10% – 95% RH, non‑condensing |
| Vibration Resistance | 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm; 8.4 Hz ≤ f ≤ 150 Hz: 1 g (IEC 60068‑2‑6) |
| Shock Resistance | 15 g, 11 ms half‑sine (IEC 60068‑2‑27) |
| Surge Voltage Category | II |
| Test Voltage | 500 V |
| Flammability Rating | UL 94 V‑0 |
| Safety (EN ISO 13849‑1) | PL d (Cat. 2, 1oo1); PL e (Cat. 4, 1oo2) |
| Safety (EN 61508) | SIL 2 (1oo1); SIL 3 (1oo2) |
| SFF (Safety‑related Fault Fraction) | 98% |
| PFH (Input, 1oo1) | 10⁻⁸ 1/h |
| PFH (Input, 1oo2) | 2.17 × 10⁻¹⁰ 1/h |
| Error Response Time (1oo1) | 10 s |
| Connection Type | PUSH IN |
| Wire Cross‑Section (Stranded) | 0.14 mm² … 1.5 mm² (AWG 26 … 16) |
| Wire Cross‑Section (Solid) | 0.14 mm² … 1.5 mm² (AWG 26 … 16) |
