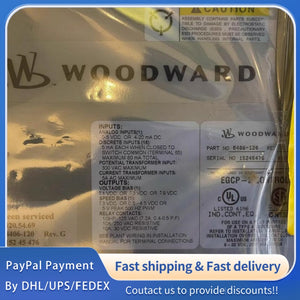

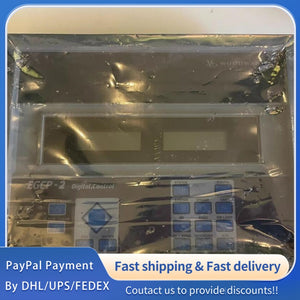

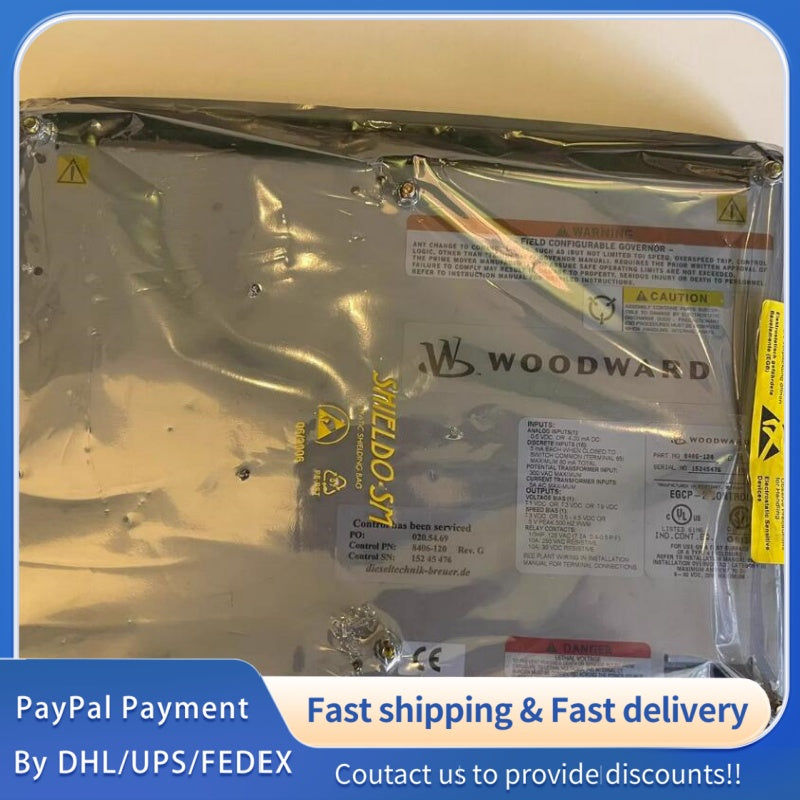

1 PCS new Woodward 8406-120 (EGCP-2) Controller #LYQ007
1 PCS new Woodward 8406-120 (EGCP-2) Controller #LYQ007
| Parameter | Specification |
|---|---|
| Model | 8406-120 (EGCP-2) |
| Type | Microprocessor‑based Engine Generator Control Packagewss.woodward.com |
| Application | Diesel/gas engine generator sets; standalone or utility‑parallel operation; up to 8 units in networkwss.woodward.com |
| Max Generator Capacity | 30,000 kWwss.woodward.com |
| Engine Speed Range | 400–3600 rpmwss.woodward.com |
| Power Supply | 9–32 VDC; PT Input: 150–300 VAC |
| Operating Temp | –20 °C to +70 °C |
| Storage Temp | –40 °C to +105 °C |
| Weight | 3.0 kg |
| Dimensions | 282 mm × 358 mm × 69 mm (11.1 × 14.1 × 2.7 in) |
| Display | Dual backlit LCD |
| Analog Inputs | 1 channel: 0–5 VDC or 4–20 mA DC |
| Discrete Inputs | 16 channels; 5 mA each (max total 80 mA) |
| PT Input | 300 VAC max |
| CT Input | 5 A AC max |
| Voltage Bias Output | ±1 VDC, ±3 VDC, or ±9 VDC |
| Speed Bias Output | ±3 VDC, 0.5–4.5 VDC, or 5 V peak (500 Hz PWM) |
| Relay Outputs | 1/3 HP @ 125 VAC (7.2 A); 10 A @ 250 VAC resistive; 10 A @ 30 VDC resistive |
| Vibration | SV2: 5–2000 Hz @ 4 G; RV1: 10–2000 Hz @ 0.04 G²/Hz |
| Communication | Modbus; Woodward ServLink compatible |
| Protection | Engine overspeed, oil pressure, water temp, battery voltage, generator protectionwss.woodward.com |
| Control Modes | Isochronous load sharing, base load, import/export, VAR/PF control, auto sequencingwss.woodward.com |
