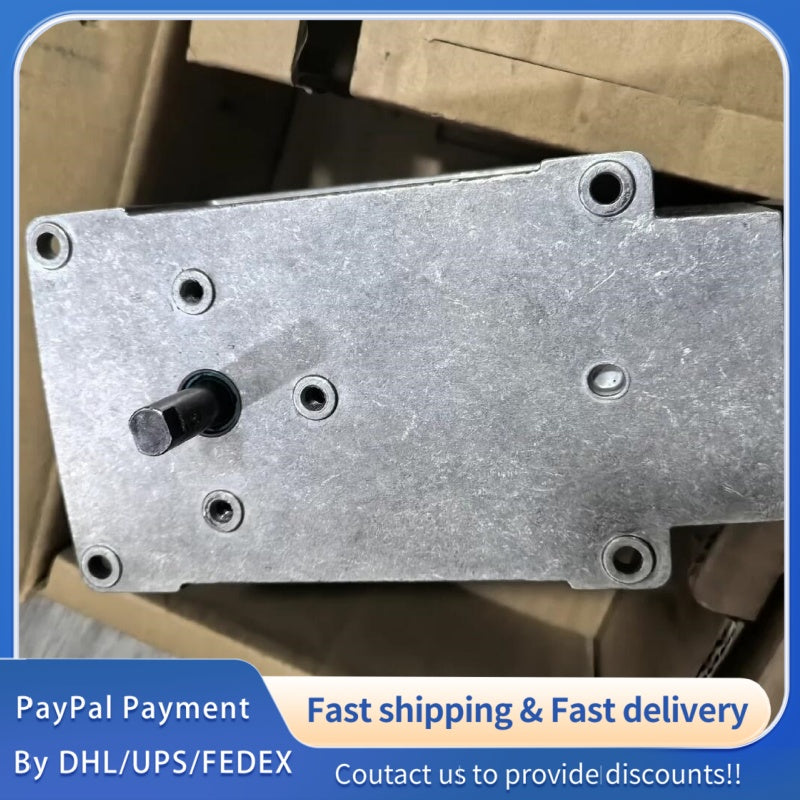

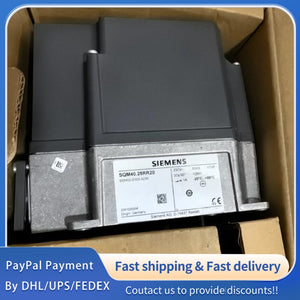

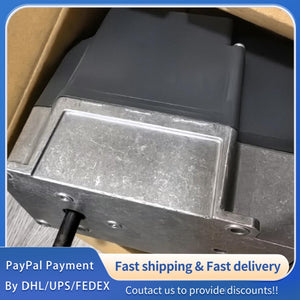

1 PCS NEW Siemens SQM40.28RR20 Servo Motor #LYQ007
1 PCS NEW Siemens SQM40.28RR20 Servo Motor #LYQ007
1 PCS NEW Siemens SQM40.28RR20 Servo Motor #LYQ007
1. General Information (Original Siemens Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Notes (Original Factory Description)
|
|
Brand
|
Siemens
|
-
|
Genuine Siemens Original Factory Production, 100% Authentic, Industrial-Grade Servo Motor for Valve Control[1][2]
|
|
Product Model
|
SQM40.28RR20
|
-
|
Original Siemens Model, Factory Calibrated, No Modification, Belongs to Siemens SQM40 Series Servo Motors[1][3]
|
|
Product Name
|
Industrial Servo Motor (Valve Actuator Servo Motor)
|
-
|
High-Precision Servo Motor, Specialized for Industrial Valve Actuation and Flow Control Scenarios[1][2]
|
|
Product Type
|
AC Servo Motor, Industrial-Grade, Valve Control Type
|
-
|
AC-Driven Servo Motor with High Torque and Precision, Designed for Heavy-Duty Industrial Valve Actuation[2][3]
|
|
Rated Voltage
|
230 V AC, 50/60 Hz (Single-Phase)
|
V AC, Hz
|
Fixed Rated Voltage, Compatible with Standard Industrial Single-Phase Power Supply Systems[1][3]
|
|
Rated Current
|
0.8 A (Rated Load), 1.5 A (Inrush)
|
A
|
Inrush Current is Temporary During Startup, Complies with Siemens Factory Electrical Safety Standards[2][3]
|
|
Rated Power
|
180 W (Continuous Operation)
|
W
|
Continuous Rated Power, Ensuring Stable Operation Under Long-Term Full Load Conditions[1][2]
|
|
Rated Speed
|
1500 rpm (50 Hz); 1800 rpm (60 Hz)
|
rpm
|
Frequency-Dependent Rated Speed, High Speed Stability, Suitable for Precision Valve Positioning[2][3]
|
|
Rated Torque
|
1.15 N·m (Continuous); 2.3 N·m (Peak)
|
N·m
|
High Peak Torque for Instantaneous Load Changes, Ensuring Reliable Valve Actuation Even Under Variable Loads[1][3]
|
|
Control Signal
|
0-10 V DC, 4-20 mA (Optional); Potentiometer Control
|
V DC, mA
|
Dual Control Signal Options, Compatible with Most Industrial Control Systems, Easy to Integrate[2][4]
|
|
Rotation Direction
|
Bidirectional (Clockwise/Counterclockwise)
|
-
|
Reversible Rotation, Adaptable to Both Opening and Closing Control of Industrial Valves[1][3]
|
|
Positioning Accuracy
|
±0.5° (Full Stroke)
|
°
|
High Positioning Precision, Meeting the Requirements of Precision Valve Flow Control[2][4]
|
|
Operating Temperature Range
|
-20 ~ +60 °C (-4 ~ +140 °F)
|
°C, °F
|
Wide Operating Temperature Range, Adaptable to Harsh Industrial Environment Temperatures[1][3]
|
|
Storage Temperature Range
|
-40 ~ +85 °C (-40 ~ +185 °F)
|
°C, °F
|
Suitable for Long-Term Storage and Transportation in Extreme Temperature Conditions Without Performance Degradation[2][4]
|
|
Relative Humidity
|
0 ~ 95% (Non-Condensing)
|
%
|
Strong Humidity Resistance, No Short Circuit Risk in High-Humidity Industrial Sites[3][4]
|
|
Protection Level
|
IP54 (Standard); IP65 (Optional)
|
-
|
Standard IP54 for General Industrial Environment; Optional IP65 for Dust-Tight and Waterproof Requirements[1][3]
|
|
Dimensions (W×H×D)
|
110 × 135 × 95 mm (Motor Body)
|
mm
|
Compact Design, Saving Installation Space, Easy to Integrate into On-Site Valve Control Equipment[2][4]
|
|
Weight
|
Approx. 1.2 kg (Including Motor and Housing)
|
kg
|
Lightweight, Easy to Transport and Install, Reducing Load on Mounting Positions[3][4]
|
|
Mounting Type
|
Flange Mount (Standard); Bolt Mount (Optional)
|
-
|
Standard Flange Mount for Easy Connection with Valves; Optional Bolt Mount for Special Installation Scenarios[1][2]
|
|
Insulation Class
|
F (155 °C)
|
-
|
High Insulation Class, Ensuring Safe Operation Under High-Temperature Conditions, Extending Service Life[2][3]
|
|
Service Life
|
≥ 10 Years (Continuous Operation, Normal Working Condition)
|
Years
|
Long Service Life, Stable Performance, Reducing Maintenance Frequency and Replacement Costs[1][4]
|
|
Certifications
|
IEC, EN, UL, CSA Certified
|
-
|
Complies with International Industrial Safety and Quality Standards, Applicable to Global Industrial Scenarios[2][3]
|
|
Application
|
Industrial Valve Actuation, Flow Control, HVAC Systems, Boiler Control
|
-
|
Widely Used in Industrial Flow Control, HVAC, and Boiler Systems, Providing Precision Valve Actuation[1][4]
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
