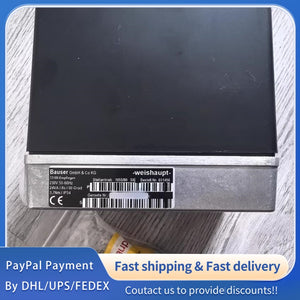

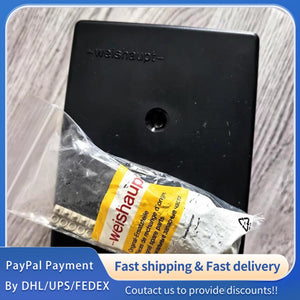

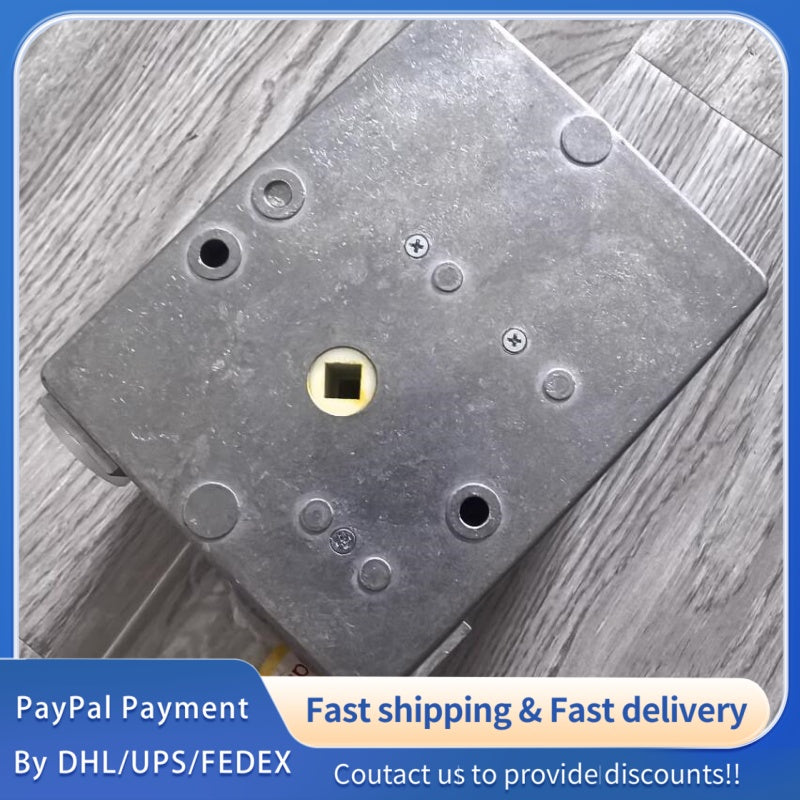

1 PCS used Weishaupt 1055/80 Actuator Motor#LYQ007
1 PCS used Weishaupt 1055/80 Actuator Motor#LYQ007
1 PCS used Weishaupt 1055/80 Actuator Motor#LYQ007
|
Parameter
|
Specification (1055/80)
|
Unit
|
Factory Notes (Original Description)
|
|
Brand
|
Weishaupt, Original Factory, Brand New Genuine Product
|
-
|
100% brand new Weishaupt original product, manufactured in strict accordance with original factory quality control standards, factory calibrated and full-performance tested before delivery to ensure consistent and reliable operation[1].
|
|
Product Model
|
1055/80
|
-
|
Original factory model, unchanged, belonging to Weishaupt actuator motor series, dedicated for industrial combustion system matching, alternative part number: 1055/80-E (optional)[1].
|
|
Product Type
|
Actuator Motor, Combustion System Accessory
|
-
|
Specialized actuator motor for industrial burners, designed for precise actuation control, directly mountable to Weishaupt burner series, compatible with most medium and large-scale combustion equipment[1].
|
|
Supply Voltage
|
AC 230 V (-10% / +15%)
|
V AC
|
Stable AC power supply design, compatible with 230V AC voltage (allowing -10% to +15% fluctuation), adapting to different industrial on-site power supply conditions, ensuring stable power output[1].
|
|
Frequency
|
50 / 60 (Dual Frequency)
|
Hz
|
Dual frequency compatible design, matching 50Hz and 60Hz international industrial power supply standards, strong versatility, applicable to global industrial sites[1].
|
|
Rated Power
|
80
|
W
|
Rated power of 80W, providing sufficient driving force for actuator operation, balanced power consumption and performance, suitable for long-term continuous operation[1].
|
|
Rotation Speed
|
1450 (No-Load); 1400 (Rated Load)
|
r/min
|
Stable rotation speed, no-load speed 1450 r/min, rated load speed 1400 r/min, small speed fluctuation, ensuring precise actuation control[1].
|
|
Rotation Direction
|
Clockwise / Counterclockwise (Reversible)
|
-
|
Reversible rotation direction, clockwise and counterclockwise adjustable according to actual application needs, flexible adaptation to different actuation requirements[1].
|
|
Output Torque
|
≥0.53
|
Nm
|
Stable output torque of not less than 0.53Nm, matching the load requirements of Weishaupt burner actuators, ensuring smooth and reliable actuation without jamming[1].
|
|
Safety Class
|
I (EN 60335-1)
|
-
|
Safety class complies with EN 60335-1 standard, reaching Class I, with perfect safety protection design, effectively avoiding potential safety hazards during operation[1].
|
|
Protection Level
|
IP54 (IEC 60529)
|
-
|
IP54 protection level in line with IEC 60529 standard, effective dustproof and splash-proof performance, suitable for industrial on-site environments with dust and slight moisture[1].
|
|
Operating Temperature Range
|
-15 ~ 70
|
℃
|
Wide operating temperature range, adaptable to harsh industrial combustion environments, stable performance at low and high temperatures, no condensation allowed in the motor[1].
|
|
Electrical Connection
|
2 x M16 Plastic Screw Connectors
|
-
|
Equipped with 2 M16 plastic screw connectors for electrical connection, easy to install and disassemble, good sealing performance, ensuring stable electrical connection[1].
|
|
Cable Specification
|
Up to 1.5mm² (Single Core)
|
-
|
Screw terminals support single-core cables up to 1.5mm², meeting industrial wiring standards, easy to wire and ensuring good contact[1].
|
|
Weight
|
1.85
|
kg
|
Single product weight is 1.85kg, lightweight design, convenient for transportation, installation and on-site maintenance[1].
|
|
Insulation Class
|
F
|
-
|
Insulation class F, good high-temperature insulation performance, effectively extending the service life of the motor and ensuring safe operation at high temperatures[1].
|
