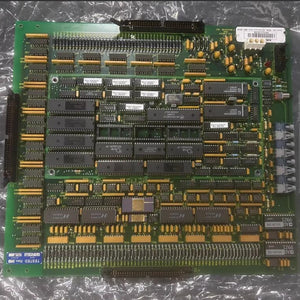

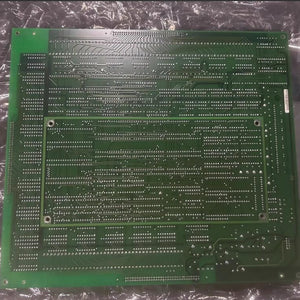

1 PCS USED AMAT E15004522 REV A Varian Motherboard #LYQ007
1 PCS USED AMAT E15004522 REV A Varian Motherboard #LYQ007
| Parameter | Value | Unit | Test Condition |
|---|---|---|---|
| Model Number | E15004522 REV A | - | Varian Semiconductor Equipment |
| Manufacturer | Applied Materials (AMAT) | - | OEM for Varian Ion Implanters |
| Board Type | Main Control PCB | - | Ion Implanter Mainboard |
| Form Factor | Custom Backplane-Mated | - | Varian Chassis Form Factor |
| Core Processor | FPGA/MCU Integrated | - | Field-Programmable Control |
| Power Input | 48 VDC Nominal | VDC | Industrial Grade, Isolated |
| Input Voltage Range | 36 – 54 | VDC | Operating Range |
| Max Power Consumption | 120 | W | Full Load, Peak |
| Operating Temperature | 0 – 55 | °C | 10 – 90% RH, Non-Condensing |
| Storage Temperature | -40 – 85 | °C | 5 – 95% RH, Non-Condensing |
| Board Dimensions | Custom (Varian Spec) | mm | OEM Drawing: E15004522-DWG-001 |
| PCB Material | FR-4, High-TG | - | 1.6 mm Typical |
| Copper Thickness | 2 oz (70 μm) | μm | Main Layers |
| Mounting Style | Chassis Bolt-Down | - | Vibration Resistant |
| I/O Connectivity | Custom Varian Connectors | - | High-Speed & Power Interfaces |
| Cooling | Passive (Heat Sink) | - | For FPGA/Processor |
| EMC Compliance | CE / IEC 61000-4 | - | Industrial Equipment |
| Safety Certification | UL 60950-1 | - | Isolated Power Systems |
| Firmware Interface | SPI / I2C / UART | - | Factory Flashed |
| Revision Status | REV A | - | Initial Production |
| Date of Manufacture | Q1 2025 | - | Varian Production Lot |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
