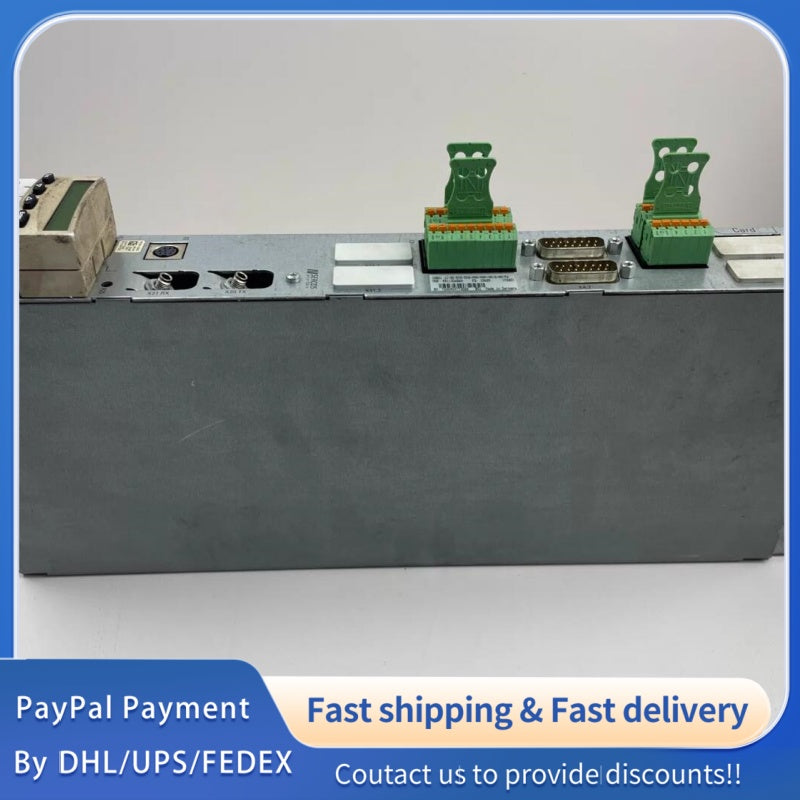

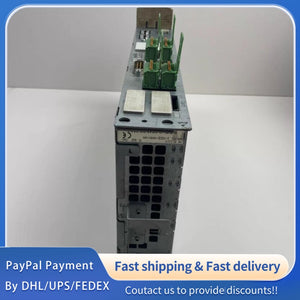

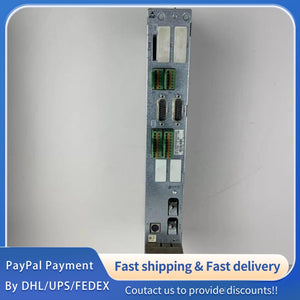

1 PCS used Bosch Rexroth CDB01.1C-SE-EN2-EN2-NNN-NNN-S2-S-NN-FW Motherboard bracket card#LYQ007
1 PCS used Bosch Rexroth CDB01.1C-SE-EN2-EN2-NNN-NNN-S2-S-NN-FW Motherboard bracket card#LYQ007
| Parameter | Value |
|---|---|
| Product Type | IndraDrive Double‑Axis Control Unit (CDB Series) |
| Part Number | CDB01.1C‑SE‑EN2‑EN2‑NNN‑NNN‑S2‑S‑NN‑FW |
| Master Communication | SERCOS III (SERCOS Interface) |
| Axis Configuration | Dual‑Axis (2 axes) |
| Encoder Interfaces (2x) | EnDat 2.1 / 1 Vpp / TTL (EN2) |
| Safety Option | Safe Motion (SIL2 / Cat.3 PL d) – S2 Module |
| Switching Frequencies | 2 kHz, 4 kHz, 8 kHz |
| SERCOS Cycle Time | Min. 1000 µs |
| Current Control Cycle Time | 125 µs |
| Digital Inputs | 4 channels |
| Digital Outputs | 18 channels |
| Encoder Supply Voltage | Max. 12.3 V |
| Encoder Supply Current | 500 mA |
| EN2 Module DC Load | Min. 35 Ω; Max. Output Current 350 mA |
| I/O Supply Max Current | 1.1 A |
| Inrush Current | 6 A (Max. Pulse Width 60 ms) |
| Base Power Consumption | 9 W |
| Control Panel | Standard (4 buttons, 1‑line display) |
| Weight | Approx. 400 g |
| Firmware | Included (FW) |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
