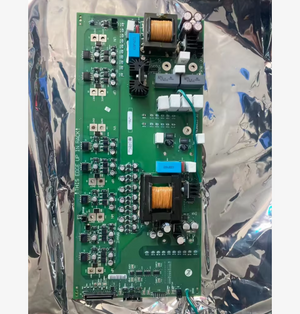

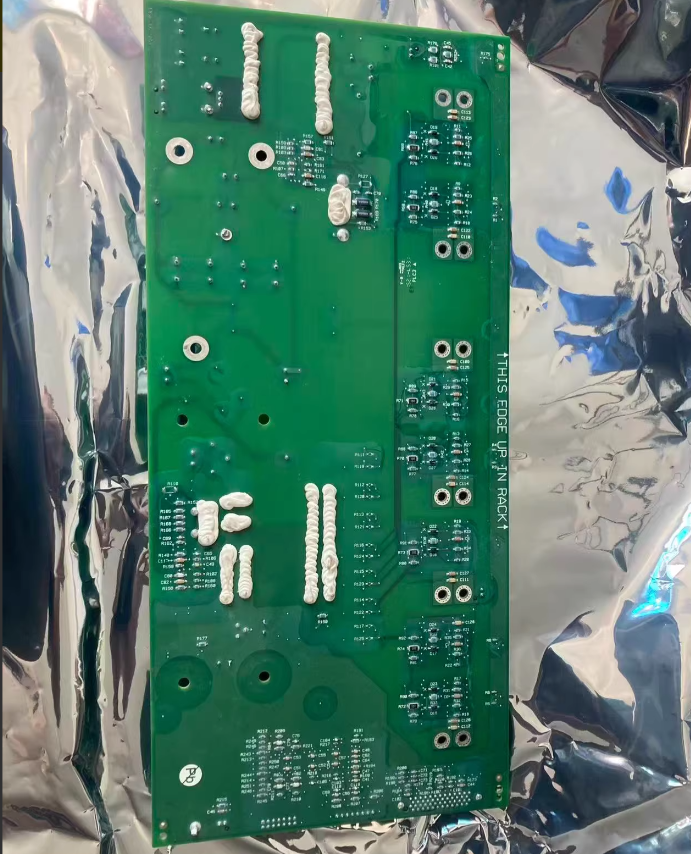

1PC used working in good condition PN-202497 Rockwell Automation Allen-Bradley AB753/755 Inverter Drive Board #QYM001 J1688
1PC used working in good condition PN-202497 Rockwell Automation Allen-Bradley AB753/755 Inverter Drive Board #QYM001 J1688

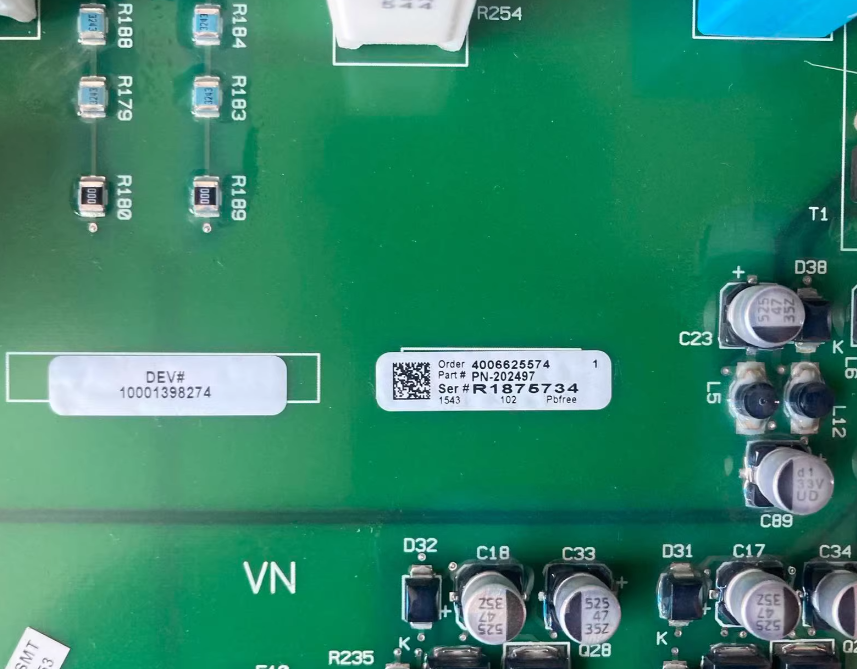

Model: PN-202497
| Parameter | Technical Value |
|---|---|
| Part Number | PN‑202497 |
| Product Type | Inverter Power Interface Board (IGBT Driver & Power Distribution) |
| Compatibility | Allen‑Bradley PowerFlex 753/755 AC Drives (400–480 VAC, 50/60 Hz; 15–75 kW) |
| Input Power | 24 VDC (logic power); 3‑phase 400/480 VAC (main power, via drive bus) |
| IGBT Driver Channels | 6 channels (3‑phase bridge configuration; 1200 V / 50 A IGBT module compatibility) |
| Signal Isolation | 2500 VAC (gate drive to logic circuit); 3000 VAC (power bus to control circuit) |
| Protection Features | Overvoltage (DC bus), overcurrent, short‑circuit, overtemperature, under‑voltage lockout (UVLO) |
| Feedback Signals | DC bus voltage sensing; phase current monitoring (shunt‑based); IGBT temperature feedback |
| Communication Interface | SPI (local drive control bus); compatible with PowerFlex 750‑series control boards |
| Operating Temperature | 0–55°C (32–131°F); Storage: ‑40–85°C (‑40–185°F) |
| Humidity | 5%–95% RH (non‑condensing) |
| Mounting | Drive‑mounted (integrated with PowerFlex 753/755 inverter chassis) |
| Certifications | CE, UL Listed, cUL Certified, RoHS Compliant |
