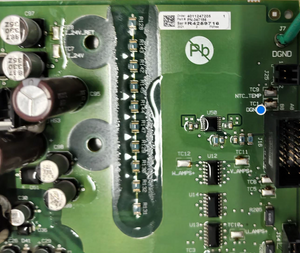

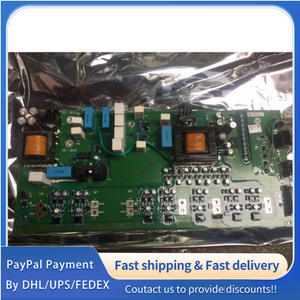

1PC NEW PN-347156 Allen-Bradley Rockwell Automation inverter drive board/power interface board #QYM001 J1688

Regular price $2,000.00 Sale price $969.99
40 People are viewing this right now
Add to Wishlist
Add to Compare

1PC NEW PN-347156 Allen-Bradley Rockwell Automation inverter drive board/power interface board #QYM001 J1688
1PC NEW PN-347156 Allen-Bradley Rockwell Automation inverter drive board/power interface board #QYM001 J1688
Regular price $2,000.00 Sale price$969.99
1PC NEW PN-347156 Allen-Bradley Rockwell Automation inverter drive board/power interface board #QYM001 J1688

1PC NEW PN-347156 Allen-Bradley Rockwell Automation inverter drive board/power interface board #QYM001 J1688

$969.99
Parameter Category Core Details
Compatible Drives PowerFlex 700S series frequency converters; typical power range 55–350kW (subject to main drive model)
Core Functions PWM signal amplification & isolation, IGBT on/off control, IGBT overcurrent/overtemperature monitoring, fault signal feedback to main control board
Power Supply Control power: DC 24V (derived from drive auxiliary power); Drive power: Isolated DC 15V/-9V (dual-channel output for IGBT gate driving); Power consumption ≤ 8W
Interface Configuration PWM signal input ports (from main control board); IGBT gate drive output ports; Temperature sensor input (for IGBT module); Fault alarm output port; Status indicator LEDs (Power/OK/Fault)
Protection Functions IGBT short-circuit protection, drive power undervoltage protection, signal loss protection, ESD protection for input/output ports; Compliant with IEC 61800-5-1
Environment & Structure Operating temperature: -10–60℃; Storage temperature: -40–85℃; PCB material: FR-4 with high thermal conductivity coating; Metal shielding case; Protection class: IP20 (cabinet mounting)
Physical Specifications Dimensions: approx. 170×120×35mm; Weight: approx. 250g; PCB flame retardant rating: 94V-0



1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
