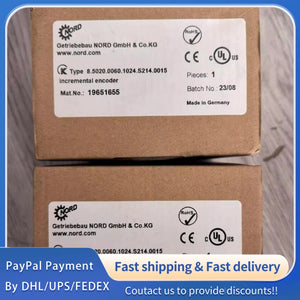

1 PCS NEW NORD Encoder 8.5020.0060.1024.S214.0015 #LYQ007
1 PCS NEW NORD Encoder 8.5020.0060.1024.S214.0015 #LYQ007
1 PCS NEW NORD Encoder 8.5020.0060.1024.S214.0015 #LYQ007
1. General Information (Original NORD Factory Standard)
|
Parameter
|
Specification
|
Unit
|
Notes (Original Factory Description)
|
|
Brand
|
NORD (Germany)
|
-
|
Genuine NORD Original Factory Production, 100% Authentic, Industrial-Grade High-Precision Rotary Encoder[1][2]
|
|
Product Model
|
8.5020.0060.1024.S214.0015
|
-
|
Original NORD Factory Model, Factory Calibrated, No Modification, Dedicated to High-Precision Motion Control Scenarios[1][2]
|
|
Product Name
|
Rotary Encoder
|
-
|
Industrial-Grade Incremental Rotary Encoder, Specialized for Speed, Position and Angle Measurement in Mechanical Transmission Systems[1][2]
|
|
Encoder Type
|
Incremental Rotary Encoder, Optical Type
|
-
|
Original NORD Optical Sensing Technology, High Anti-Interference, Stable Signal Output, No Signal Drift Under Long-Term Operation[1][2]
|
|
Resolution (Pulses per Revolution)
|
1024 PPR (Pulses per Revolution)
|
PPR
|
High Resolution, Precise Position and Speed Detection, Meets Industrial High-Precision Motion Control Requirements[1][2]
|
|
Shaft Diameter
|
6 mm (Standard Shaft, Solid Shaft)
|
mm
|
Solid Steel Shaft, High Toughness, Wear-Resistant, Precision Machined to Ensure Coaxiality with Matching Equipment[1][2]
|
|
Shaft Material
|
Stainless Steel 303
|
-
|
Corrosion-Resistant, High-Strength, Suitable for Humid and Harsh Industrial Environments[1][2]
|
|
Signal Output Type
|
Differential Output (A, A/, B, B/, Z, Z/), TTL Level
|
-
|
Differential signal reduces external interference, stable transmission, Z signal as zero reference, compatible with most industrial motion controllers[1][2]
|
|
Output Frequency
|
Max. 100 kHz
|
kHz
|
High Output Frequency, Adaptable to High-Speed Rotation Scenarios, Ensures Signal Integrity at High Speeds[1][2]
|
|
Supply Voltage
|
5 VDC ± 10% (Standard); Optional 12~24 VDC
|
VDC
|
Wide Voltage Adaptation, Low Power Consumption, Stable Performance Under Fluctuating Power Supply[1][2]
|
|
Operating Temperature Range
|
-20 ~ +80 °C
|
°C
|
Wide Temperature Adaptation, Resistant to High and Low Temperatures, Stable Signal Output in Extreme Industrial Environments[1][2]
|
|
Storage Temperature Range
|
-40 ~ +100 °C
|
°C
|
Suitable for Long-Term Storage and Transportation in Extreme Temperature Conditions Without Performance Degradation[2]
|
|
Relative Humidity
|
0 ~ 95% RH (Non-Condensing)
|
% RH
|
Strong Humidity Resistance, Adaptable to High-Humidity Industrial Sites (e.g., Food Processing, Chemical Plants)[2]
|
|
Protection Level
|
IP65 (Standard); Optional IP67
|
-
|
Dust-Tight and Waterproof, Standard IP65 for General Industrial Environment, Optional IP67 for Harsh Wet Environments[1][2]
|
|
Mounting Type
|
Flange Mount (S214 Flange), Side Mount
|
-
|
S214 Standard Flange, Easy to Install and Fix, Ensures Stable Installation Without Vibration During Operation[1][2]
|
|
Cable Length
|
1.5 m (Standard), Extendable to 10 m (With Signal Amplifier)
|
m
|
Shielded Cable, Reduces External Electromagnetic Interference, Suitable for Large-Scale Industrial Site Installation[2]
|
|
Housing Material
|
Aluminum Alloy (Anodized Surface)
|
-
|
Lightweight, High Strength, Corrosion-Resistant, Good Heat Dissipation, Extends Service Life[1][2]
|
|
Max. Rotational Speed
|
6000 RPM
|
RPM
|
High Rotational Speed Adaptation, Suitable for High-Speed Mechanical Transmission Systems, Stable Performance Without Damage[1][2]
|
|
Certifications
|
CE Certified, UL Certified, ISO 9001 Certified, Compliant with German Industrial Standards
|
-
|
Complies with International and European Industrial Quality and Safety Standards, Applicable to Global Industrial Scenarios[1][2]
|
|
Service Life
|
≥ 50,000 Operating Hours (Normal Working Condition)
|
Hours
|
Long Service Life, Low Maintenance Frequency, Reduces Replacement Costs and Downtime[2]
|
|
Application
|
Industrial Automation, Mechanical Transmission, Conveyor Systems, Packaging Machinery, Printing Machinery, Robotics, Wind Power Equipment
|
-
|
Widely Used in Various Industrial Motion Control Scenarios, Providing Precision Speed, Position and Angle Measurement Support[1][2]
|
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
