1 PCS used ABB Mainboard SDCS-CON-2B #LYQ007
1 PCS used ABB Mainboard SDCS-CON-2B #LYQ007
1 PCS used ABB Mainboard SDCS-CON-2B #LYQ007

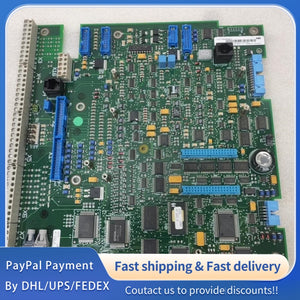

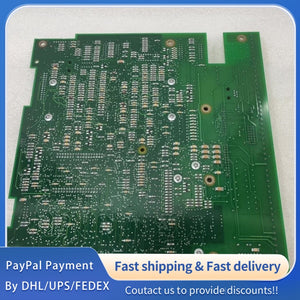

Part Number: SDCS-CON-2B; Product Name: ABB SDCS-CON-2B Main Control Board; Product Series: ABB Industrial Drive Control Mainboards, specifically designed for DCS800 series DC drives.
Brand: ABB (A global pioneer in power and automation technologies, specializing in high-reliability industrial control components. The SDCS-CON-2B serves as the core control unit for DC drives, integrating advanced signal processing and control logic to ensure stable drive operation.)
Product Status: Industrial-Grade Original Component (Factory Tested, RoHS Compliant, Static-Safe Packaging); Product Category: Main Control Board, core functional module for drive system operation, signal conversion, and communication management.
Core Application: Dedicated to ABB DCS800 series DC drives, serving as the central control hub for motor speed regulation, torque control, and system communication. Widely used in industrial scenarios such as metallurgy, chemical processing, heavy machinery, and automotive manufacturing where precise DC motor control is required.
Core Features: High-performance microprocessor for fast signal processing; Multi-protocol communication support for system integration; Built-in fault diagnosis and protection logic; Modular design for easy installation and maintenance; Compatible with ABB standard drive accessories; Stable operation under harsh industrial environments.
2. Core Electrical Specifications (Ta = 25℃, Unless Otherwise Specified)
2.1 Power Supply Parameters
Operating Voltage: +5V DC ±5% (Digital Circuit), +12V DC ±10% (Analog Circuit), ±15V DC ±10% (Signal Processing Circuit);
Power Consumption: ≤8W (Typical), ≤12W (Maximum Load); Input Current: +5V Circuit: 1.2A (Typical), +12V Circuit: 0.5A (Typical), ±15V Circuit: 0.3A (Typical);
Power Protection: Overvoltage Protection (OVP), Undervoltage Lockout (UVLO), Reverse Polarity Protection (Prevents damage from incorrect power connection).
2.2 Signal Processing Parameters
Analog Input Resolution: 16-bit (High Precision); Analog Input Range: 0-10V DC / 4-20mA (Isolated, Compatible with Industrial Standard Signals);
Digital I/O: 8 x Optically Isolated Digital Inputs (24V DC), 4 x Optically Isolated Digital Outputs (Relay Contacts, 250V AC / 30V DC);
Signal Response Time: Analog Signals: ≤1ms, Digital Signals: ≤0.5ms; Measurement Accuracy: ±0.1% of Full Scale (Analog Signals).
2.3 Control & Communication Parameters
Control Processor: 32-bit Industrial Microcontroller, Clock Frequency: 80MHz (Ensures fast control algorithm execution);
Communication Interfaces: RS-485 (Modbus RTU Protocol, Baud Rate: 9600-115200 bps, Adjustable), Internal Bus Interface (Compatible with ABB Drive Expansion Modules);
Control Functions: Speed Regulation, Torque Control, Current Limiting, Ramp Generation (Linear/S-Curve), Fault Diagnosis and Alarm.
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
