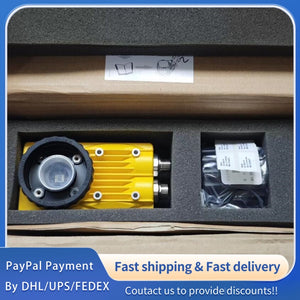

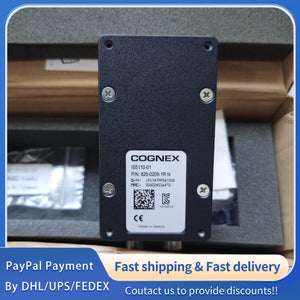

Part Number: IS5110-01; Product Name: Cognex In-Sight IS5110-01 Industrial Vision System
Brand: Cognex (A global leader in machine vision solutions, specializing in industrial image processing, barcode reading, and visual inspection systems for automation industries);
Product Status: Original New Unit; Product Category: Standalone Industrial Vision System, integrated with advanced image sensor, processing core and vision tools for high-precision inspection and identification applications.
Core Application: Widely used in automated production lines, electronic component inspection, packaging quality control, automotive part detection, food and beverage sorting, pharmaceutical labeling verification and logistics barcode reading; ideal for environments requiring fast response and high-accuracy visual inspection.
Core Features: Integrated high-performance vision processing core; Comprehensive vision tool library; User-friendly EasyBuilder® configuration software; Compact industrial-grade design; Multiple communication protocol support; Integrated lighting control; Robust anti-interference capability for harsh factory environments.
2. Hardware Configuration Specifications
2.1 Image Sensing & Processing Capability
Sensor Type: CMOS Image Sensor; Resolution: 800 × 600 Pixels (VGA); Shutter Type: Global Shutter (to avoid motion blur in high-speed applications);
Image Capture Rate: Up to 102 Frames Per Second (FPS) at full resolution; Exposure Time: 1 μs to 10 seconds (adjustable); Image Color: Monochrome (Grayscale 8-bit/16-bit optional).
2.2 Functional Configuration
Core Vision Tools: 1D/2D Barcode Reading & Verification, OCR/OCV Text Reading, Pattern Matching, Edge Detection, Blob Analysis, Geometric Measurement, Image Filtering and Calibration Tools;
Communication Interface: 1×GigE Ethernet (GigE Vision compliant), 1×RS-232 Serial Port; I/O Interface: 4 digital inputs, 4 digital outputs (configurable for trigger and control signals); Lens Interface: C-Mount (compatible with standard industrial lenses).
3. Electrical Specifications
3.1 Power Supply Parameters
Input Power Supply: DC 24V ±10% (1.2A Typical); Optional Power Supply: PoE (Power over Ethernet) Class 1 (compliant with IEEE 802.3af);
Power Consumption: ≤28.8W (Full Load, Non-PoE Mode); Power Protection: Over-voltage, Under-voltage, Over-current and Reverse Polarity Protection.
3.2 Signal & Safety Characteristics
Signal Isolation: Digital I/O Signals Optically Isolated; ESD Protection: ±15kV (Air Gap), ±8kV (Contact) per IEC 61000-4-2;
Safety Compliance: IEC 61010-1, UL 61010-1; Emission Standard: EN 55032 Class A; Immunity Standard: EN 55035.
