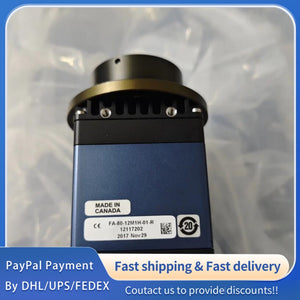

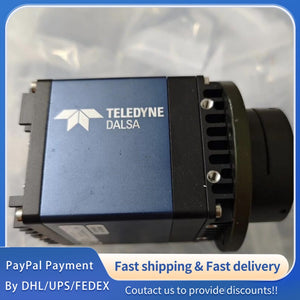

Falcon2 Series    High-performance industrial camera platform, ultra-low noise, high-speed transmission
80    Hardware Platform    80-core high-bandwidth processing board, supports 8-Tap full-speed output
12    Resolution    12 Megapixels (4096×3072), standard 12MP industrial grade
M    Color Mode    Monochrome (Mono)    (C=Color, optional for custom models)
1    Bit Depth    8/10-bit dual output, high grayscale detail
H    Interface    Full Camera Link (8-Tap)    Compliant with AIA Camera Link V2.0
01    Configuration    Standard industrial version, IP30 protection, factory default
R    Region Certification    Global universal version, CE/FCC/RoHS compliant

Resolution    4096 × 3072 Pixels (12.44MP)    4:3 aspect ratio, industrial standard high resolution

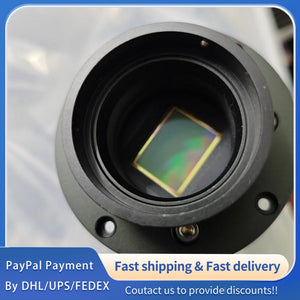

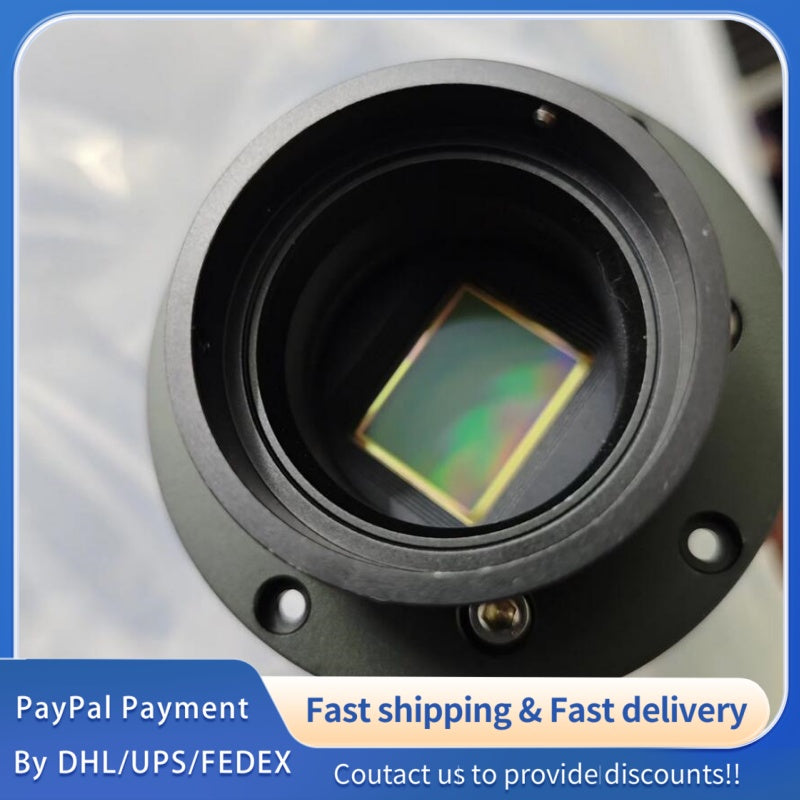

Image Sensor    DALSA Proprietary CMOS    Global Shutter + Global Reset, no motion blur
Pixel Size    6.0μm × 6.0μm    Large pixel pitch, low dark noise, high light sensitivity
Frame Rate    58 fps @ Full Resolution (8-bit)
68 fps (10-bit)    Max 168 fps via ROI vertical windowing
Pixel Bit Depth    8-bit / 10-bit selectable    Raw uncompressed output, no image loss
Exposure Time    20μs ~ 1000ms programmable    Software/API adjustable, min 20μs for high-speed capture
Dynamic Range    58 dB    Monochrome exclusive, ultra-fine grayscale differentiation
Gain Range    0dB ~ 18dB (0.001x ~ 8x)    Low-noise digital gain, no signal distortion
Spectral Response    400nm ~ 700nm (Visible Light)    Optional 700nm~900nm (Near IR) for special inspection
Scan Mode    Progressive Scan    Global shutter, capture moving objects up to 5m/s without blur
Image Correction    Flat Field Correction (FFC)
Bad Pixel Auto-Correction
PRNU/FPN Noise Suppression    Built-in industrial-grade correction algorithm

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
