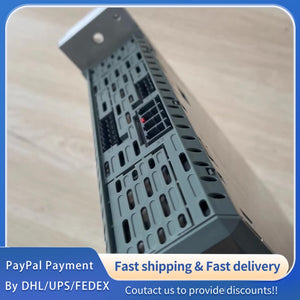

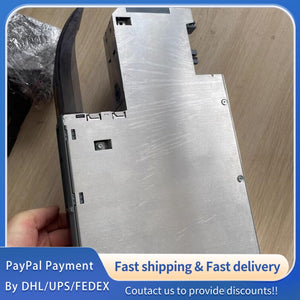

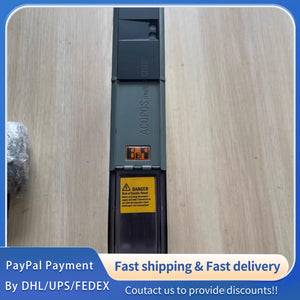

1PC for used B&R 8B0C0320HC00.00A-1 servo drive #LYQ007
1PC for used B&R 8B0C0320HC00.00A-1 servo drive #LYQ007
| Parameter | Value |
|---|---|
| Model | 8B0C0320HC00.00A-1 |
| Product Type | ACOPOSmulti auxiliary supply module, 32 A, HV, cold plate/feed‑through mounting |
| Cooling & Mounting | Cold plate or feed‑through mounting |
| Certifications | CE, KC, cULus (E225616) |
| DC Bus Connection | |
| Nominal voltage | 750 VDC |
| Continuous operating range | 260–800 VDC |
| Full continuous power range | 315–800 VDC |
| Max continuous power consumption | 880 W |
| Power dissipation (100% load) | 80 W |
| DC bus capacitance | 220 nF |
| 24 VDC Output (Main) | |
| Continuous power | 800 W |
| Output voltage (315–800 VDC bus) | 24 VDC ±6% |
| Continuous current (normal mode) | 32 ADC |
| Continuous current (supply mode, +24 Vin) | 30 ADC |
| Residual ripple | Typ. 50 mVSS |
| 24 VDC Internal System Supply | |
| Output voltage | 25 VDC ±1.6% |
| Peak current (<4 s, 350–800 VDC bus) | 42 ADC |
| 24 VDC Output 1 | |
| Rated current | 30 A (electronic, auto‑reset) |
| Wire cross‑section (flexible, with ferrules) | 0.25–6 mm² |
| 24 VDC Output 2 | |
| Rated current | 5 A (electronic, auto‑reset) |
| Wire cross‑section (flexible, with ferrules) | 0.25–2.5 mm² |
| 24 VDC Input | |
| Nominal voltage | 24 VDC |
| Voltage range | 23–26 VDC |
| Max continuous current | 30 A |
| Protective Features | |
| Overload, short‑circuit, open‑circuit protection | Yes |
| Overtemperature protection | Yes |
| Reverse voltage protection (output) | Max. 26 VDC |
| Dielectric strength to ground | ±50 VDC |
| Operating Conditions | |
| Ambient temperature (operation) | 5–40°C (max 55°C) |
| Storage temperature | –25 to 55°C |
| Relative humidity (operation) | 5–85% (non‑condensing) |
| Degree of protection | IP20 |
| Installation elevation | 0–4000 m (derate above 500 m) |
| Dimensions & Weight | |
| Width | 53 mm |
| Height | 317 mm |
| Depth (cold plate) | 212 mm |
| Depth (feed‑through) | 209 mm |
| Weight | Approx. 2.9 kg |
1 .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
Including : frequency converter, servo driver, servo motor, data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
