Parameter Category    English Specifications
Manufacturer    Allen‑Bradley

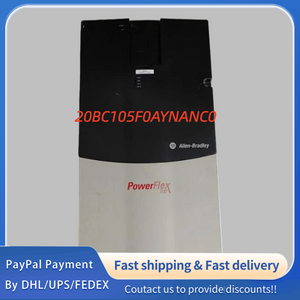

Product Line    PowerFlex 700 AC Drive
Model Number    20BC105F0AYNANC0
Product Series    20B
Frame Size    7
Input Voltage & Frequency    575 VAC, 3‑phase
Frequency: 50/60 Hz (F0 = 575V class)
Input Current    105 A (continuous)
Output Current    105 A (continuous)
Output Power    75 kW (100 HP) Normal Duty
60 kW (80 HP) Heavy Duty
Control Mode    V/Hz, Sensorless Vector, Closed‑loop Vector (AY = Advanced Control with Force™ Technology)
Enclosure    NEMA/UL Type 1 (IP20), with conformal coating
EMC Filter    Built‑in EMC filter (ANC0 = "C" indicates EMC filter)
Brake Transistor    Standard braking transistor installed
Keypad    Standard keypad ("N" = not blank plate)
Communication    Standard: None (configurable with optional cards: DeviceNet, Ethernet/IP, etc.)
Cooling Method    Forced air cooling
Protection Features    Overcurrent, Overvoltage, Undervoltage, Overheating, Motor Short Circuit Protection
Operating Temperature    0 °C to 40 °C (32 °F to 104 °F) (no derating)
Up to 50 °C (122 °F) (with derating)
Humidity    0% to 95% relative humidity (non‑condensing)
Altitude    Up to 1000 m (3300 ft) without derating
Model Suffix Breakdown    F0AYNANC0
- F0: 575 VAC voltage class
- AY: Advanced control option (Force™ Technology)
- N: No additional filter
- A: Standard braking transistor
- ANC0: NEMA 1 enclosure, standard keypad, built‑in EMC filter, conformal coating, specific configuration variant

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
