Parameter Category    English Specification

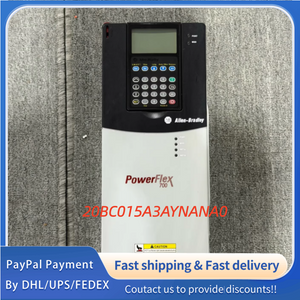

Model Number    20BC015A3AYNANA0
Product Line    PowerFlex 700 AC Drive
Rated Power    7.5 kW (10 HP) Normal Duty; 5.5 kW (7.5 HP) Heavy Duty
Input Voltage    3‑Phase, 380/400 V AC, 50/60 Hz
Input Current    15.4 A (max continuous)
Output Voltage    0 to Input Voltage, 3‑Phase
Output Current    15.4 A (continuous); 150% for 60 s, 200% for 3 s
Output Frequency    0–400 Hz (adjustable)
Control Mode    V/Hz, Sensorless Vector, Closed‑Loop Vector (optional)
Enclosure & Coating    NEMA 1 / IP20 (Type 1), with conformal coating
Key Features    Brake IGBT installed; No drive‑mounted brake resistor; 2nd EMC filter; No HIM (blank plate); 24V I/O, Vector Control; No integrated communication module
Cooling Method    Forced Air Cooling
Communication    Built‑in RS485 (Modbus RTU); no additional integrated communication module
Operating Temperature    0–40 °C (32–104 °F); derate above 40 °C
Storage Temperature    ‑40–70 °C (‑40–158 °F)
Humidity    5%–95% RH (non‑condensing)
EMC Compliance    CE, UL, cUL, CSA, RoHS

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
