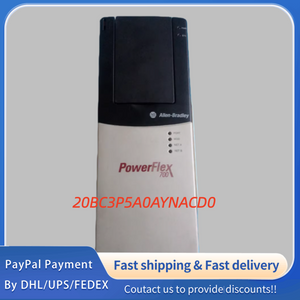

Model Number    20BC3P5A0AYNACD0    Allen-Bradley PowerFlex 700 Series
Product Type    Adjustable Frequency AC Drive    Standard AC drive for 3-phase induction motors
Rated Power    1.5 kW (Normal Duty), 1.1 kW (Heavy Duty)    3-phase, 400 VAC typical
Input Voltage    3-phase, 380–480 VAC    Rated input voltage range
Output Current    3.5 A (Continuous), 4.5 A (1 min), 6 A (3 sec)    Output current capacity
Output Frequency    0–600 Hz    Adjustable frequency range
Control Mode    Open-loop Vector, V/F Control    Vector control with 115V AC I/O
Enclosure Protection    IP20 / NEMA Type 1    With conformal coating
Frame Size    Frame 0    Standard frame size
Brake IGBT    Installed    Internal brake component
EMC Filter    CE Filter (2nd Environment)    With EMC filter with common mode choke
Analog I/O    2 Analog Outputs    Standard configuration
Operating Temperature    0–40 °C (32–104 °F)    Ambient temperature range
Operating Humidity    ≤95% RH (non-condensing)    Max humidity without condensation
Shock Resistance    15 G peak (11 ms duration ±1.0 ms)    Mechanical shock tolerance
Vibration Resistance    0.152 mm displacement, 1 G peak    Mechanical vibration tolerance

1  .Our company specializes in automation industrial control accessories. We have more than 100,000 products.
 Including : frequency converter, servo driver, servo motor,   data acquisition card, industrial camera, touch screen, circuit board, DCS module, soft starter, industrial   computer,encoder... etc
2，We accept PayPal transaction. All products provided 60 days warranty. We can send the goods by fast express to all over world.
 3. We can supply the product in brand new or used condition to meet your requirement.The picture and price show on our store is not real, before purchasing, please    contact us to provide you with accurate quotation and real pictures.
4. If you can not find the product you need in our store, please contact us .we will check it for you.
