Parameter    Details

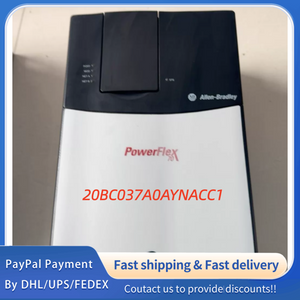

Product Line    PowerFlex 700 AC Drive
Catalog Number    20BC037A0AYNACC1
Rated Power    18.5 kW (25 HP) Normal Duty; 15 kW (20 HP) Heavy Duty
Input Voltage    400 VAC, 3‑Phase
Input Frequency    50/60 Hz
Output Current    37 A (Continuous); 45 A (1 min); 60 A (3 sec)
Output Voltage    0–400 VAC (matches input voltage)
Output Frequency    0–400 Hz
Frame Size    Frame 2
Efficiency    97.0% at rated current and nominal line voltage
Input Voltage Tolerance    ±10%
Input Frequency Tolerance    47–63 Hz
Mechanical Specifications
Parameter    Details
Enclosure    IP20 / NEMA 1 (with conformal coating)
Cooling    Forced Air
Brake IGBT    Brake IGBT Installed
Brake Resistor    Without Drive‑Mounted Brake Resistor
Filter    EMC Filter & Common Mode Choke (per CE EMC directive)

With Control Element    Yes
Control & I/O
Parameter    Details
Control Mode    Vector Control (with 24V I/O)
User Interface    Blank Plate (No HIM)
Communication    EtherNet/IP Communication Module
I/O Configuration    Standard Vector Control with 24V I/O (6 digital inputs, 2 analog inputs)
