Parameter Category    English Specifications

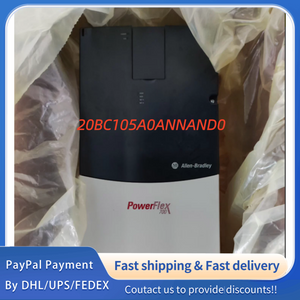

Manufacturer    Allen‑Bradley
Product Line    PowerFlex 700 AC Drive
Model Number    20BC105A0ANNAND0
Product Series    20B
Frame Size    7
Input Voltage & Frequency    400 VAC, 3‑phase
Frequency: 50/60 Hz (A0 = 400V class)
Input Current    105 A (continuous)
Output Current    105 A (continuous)
Output Power    55 kW (75 HP) Normal Duty
45 kW (60 HP) Heavy Duty
Control Mode    V/Hz, Sensorless Vector (AN = Standard Control, no Force™ Technology)
Enclosure    NEMA/UL Type 1 (IP20), with conformal coating
EMC Filter    Built‑in EMC filter (AND0 = "C" indicates EMC filter)
Brake Transistor    Standard braking transistor installed
Keypad    Standard keypad ("N" = not blank plate)
Communication    Standard: None (configurable with optional cards: DeviceNet, Ethernet/IP, etc.)
Cooling Method    Forced air cooling
Protection Features    Overcurrent, Overvoltage, Undervoltage, Overheating, Motor Short Circuit Protection
Operating Temperature    0 °C to 40 °C (32 °F to 104 °F) (no derating)
Up to 50 °C (122 °F) (with derating)
Humidity    0% to 95% relative humidity (non‑condensing)
Altitude    Up to 1000 m (3300 ft) without derating
Model Suffix Breakdown    A0ANNAND0
- A0: 400 VAC voltage class
- AN: Standard control option (no Force™ Technology)
- N: No additional filter
- A: Standard braking transistor
- AND0: NEMA 1 enclosure, standard keypad, built‑in EMC filter, conformal coating, specific configuration variant
