Parameter Category    Parameter Details

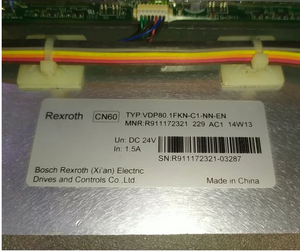

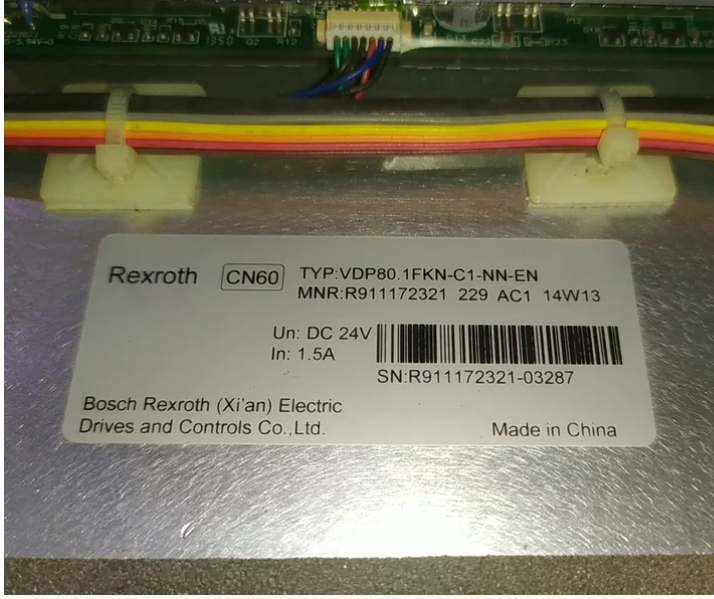

Model Identification    Catalog Number: VDP80.1-FKN-C1-NN-EN
Order Number: R911172321

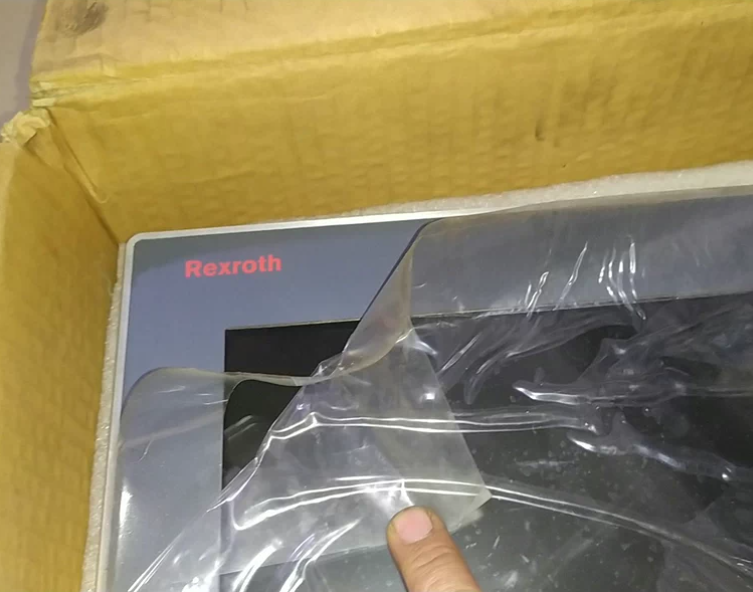

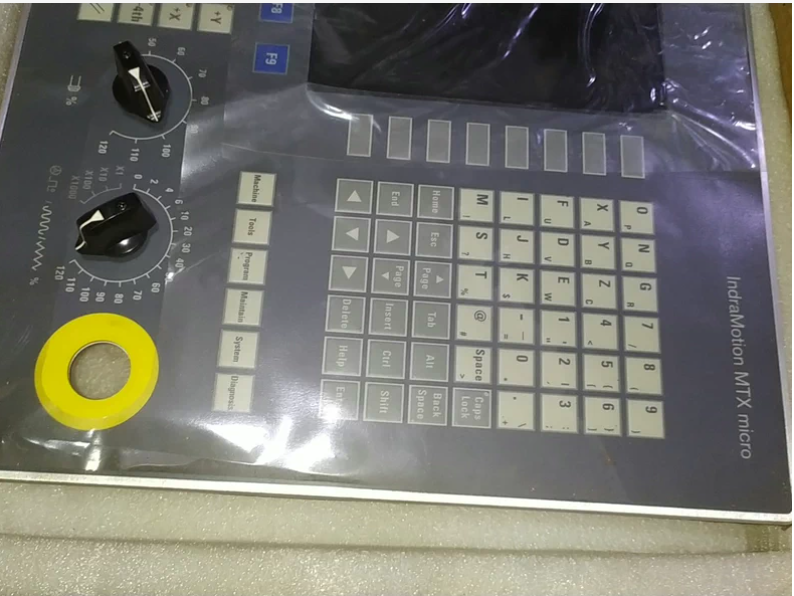

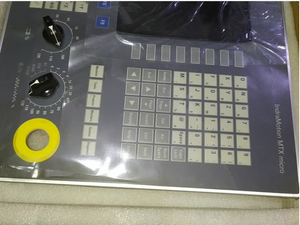

Series: Bosch Rexroth IndraControl VDP 80.1 Machine Operator Panel
Display    Type: 10.4" a‑Si TFT Active Matrix Color Display
Resolution: 640 × 480 Pixels
Colors: 262,144 Colors
Display Area: 211.2 mm (H) × 158.4 mm (V)
Backlight Life: 50,000 Hours (50% Brightness at 50,000 Hrs)
Language: English (EN)
Power Supply    Voltage: 24 V DC ±20%
Power Consumption: 36 W
Connector: 2‑Pin Power Connector
Mechanical & Environmental    Dimensions (L×H×D): 420 mm × 327 mm × 80 mm
Mounting: Panel Mount
Protection Rating (Installed): IP54
Operating Temperature: +5 °C to +45 °C
Storage Temperature: -25 °C to +60 °C
Relative Humidity: 5%–85% (Non‑Condensing)
Shock/Vibration: 10 g (11 ms), 0.5 g (10–500 Hz)

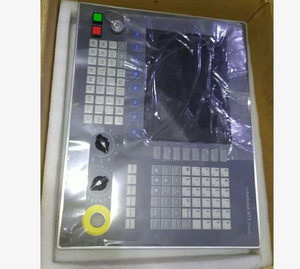

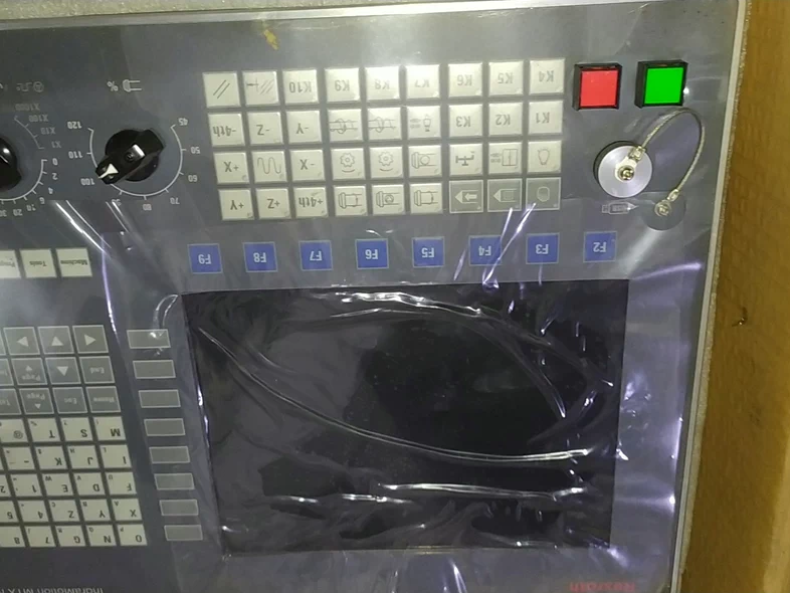

Keys & Handwheels    MOP Keys (PLC Inputs/Indicators): 38
K‑Keys (OEM): 10
Handwheels: 1 Internal, 1 External
Handwheel Compatibility: VCH02 (Max Speed 200 min⁻¹)
Feed/Spindle Multiplier Switches: Included

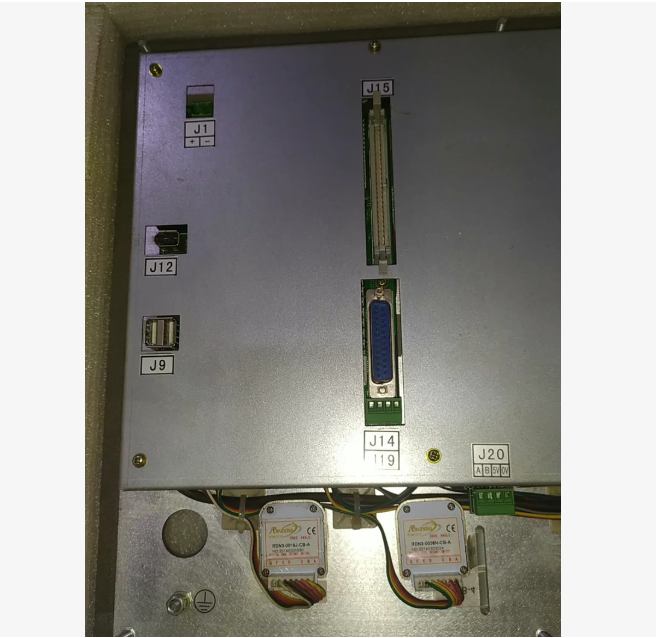

Communication Interface    Interface: Compact Device Interface (CDI)
Handwheel Output: Open Collector
Certifications    CE Certified, UL Listed
